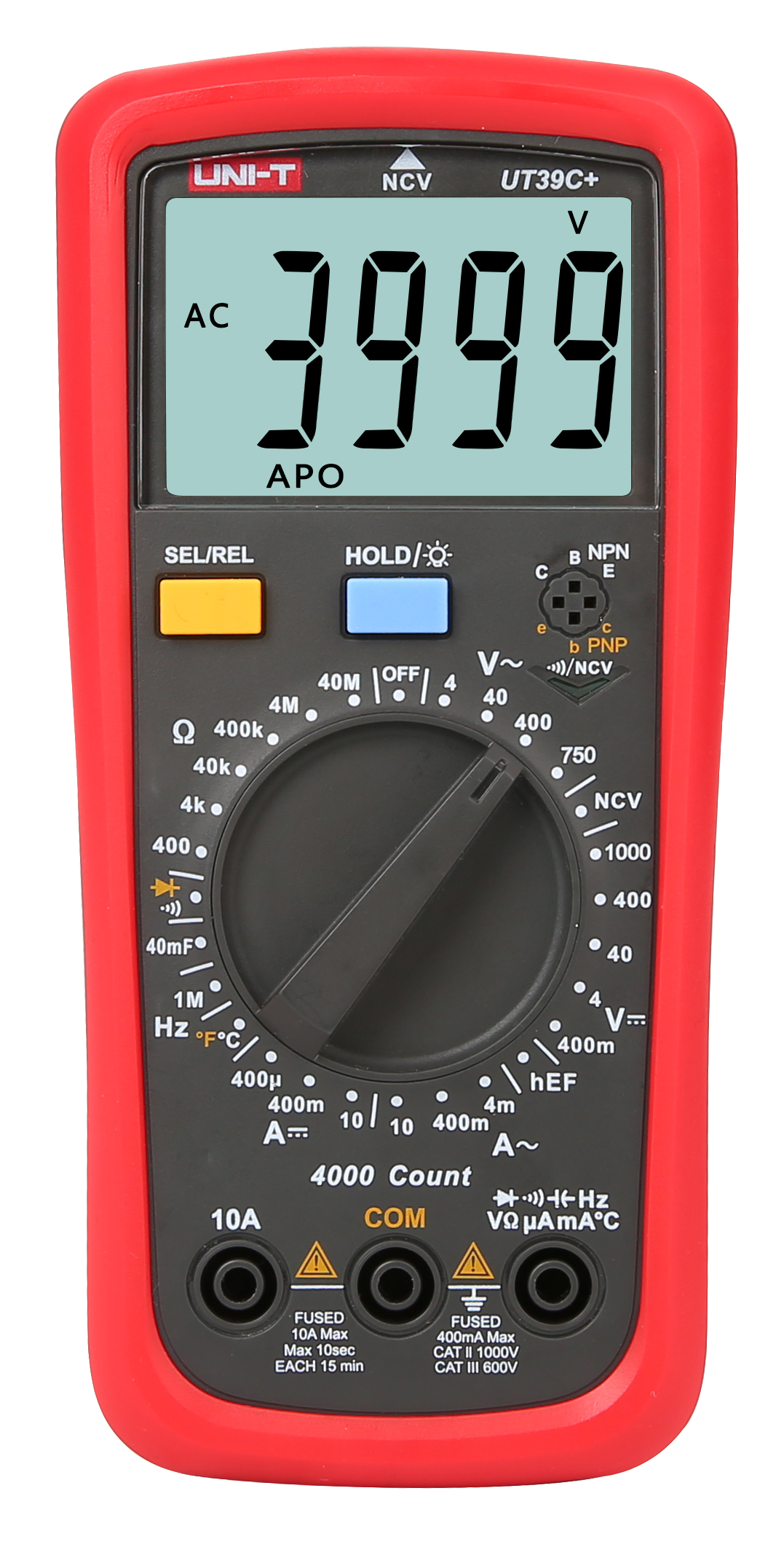

Digital multimeter

UT39 A+/C+

Features

1. 1000V DC voltage measurement

2. 750V AC voltage measurement

3. 10A DC/AC current measurement

4. Resistance/Capacitance

5. hFE

6. Diode/Continuity test

7. CAT II 1000V/CAT III 600V

Specifications	Range	Basic Accuracy
Model		UT39A+	UT39C+
DC voltage	400.0mV	±(0.5%＋5)
	4.000V
	40.00V
	400.0V
	1000V	±(0.7%＋3)
AC voltage	4.000V	±(1.0%＋2)
	40.00V	±(0.8%+3)
	400.0V
	750V
AC current	4.00mA		±(1.0%+2)
	40.00mA	±(1.0%+2)
	400.0mA	±(1.0%+2)
	10.00A	±(1.5%+3)
DC current	40.00uA	±(0.8%+3)
	400.0uA		±(0.8%+3)
	4.000mA
	40.00mA
	400.0mA		±(0.8%+3)
	10.00A	±(1.2%+5)
Resistance	400.0Ω	±(1.0%+2)
	4.000kΩ	±(0.8%+2)
	40.00kΩ
	400.0kΩ
	4.000MΩ	±(1.0%+2)
	40.00MΩ		±(1.2%+3)
	200.0MΩ	±(5%+10)
Capacitance	4.000nF	±(4.0%+10)
	40.00nF
	400.0nF	±(4.0%+5)	±(4.0%+10)
	4.000uF		±(4.0%+5)
	40.00uF
	400.0uF
	4.000mF	±10%
	10.00mF
Frequency	10Hz~1MHz		±(0.1%+4)
Temperature °C	-40~40℃		±4℃
	＞40~500℃		±(1.0%+4)
	＞500~1000℃		±(2.0%+4)
Temperature °F	-40~104℉		±5℉
	＞104~932℉		±(1.5%+5)
	＞932~1832℉		±(2.5%+5)
Features
Display count	4100
Auto range	√
hFE	√
NCV			√
Diode test	√
Continuity test	√
Low battery indication	√
Data hold	√
Relative mode	√
Auto power off	√
Backlight	√
Operation temperature	0℃～40℃
Safety rating	CAT II 1000V/CAT III 600V
General Characteristics
Product color	Red and grey
Product net weight	330g
Product size	175x83x53mm
Standard individual packing	Gift box, manual
Standard quantity per carton	30pcs
Standard carton size	390×355×355mm
Standard carton gross weight	12.75kg
