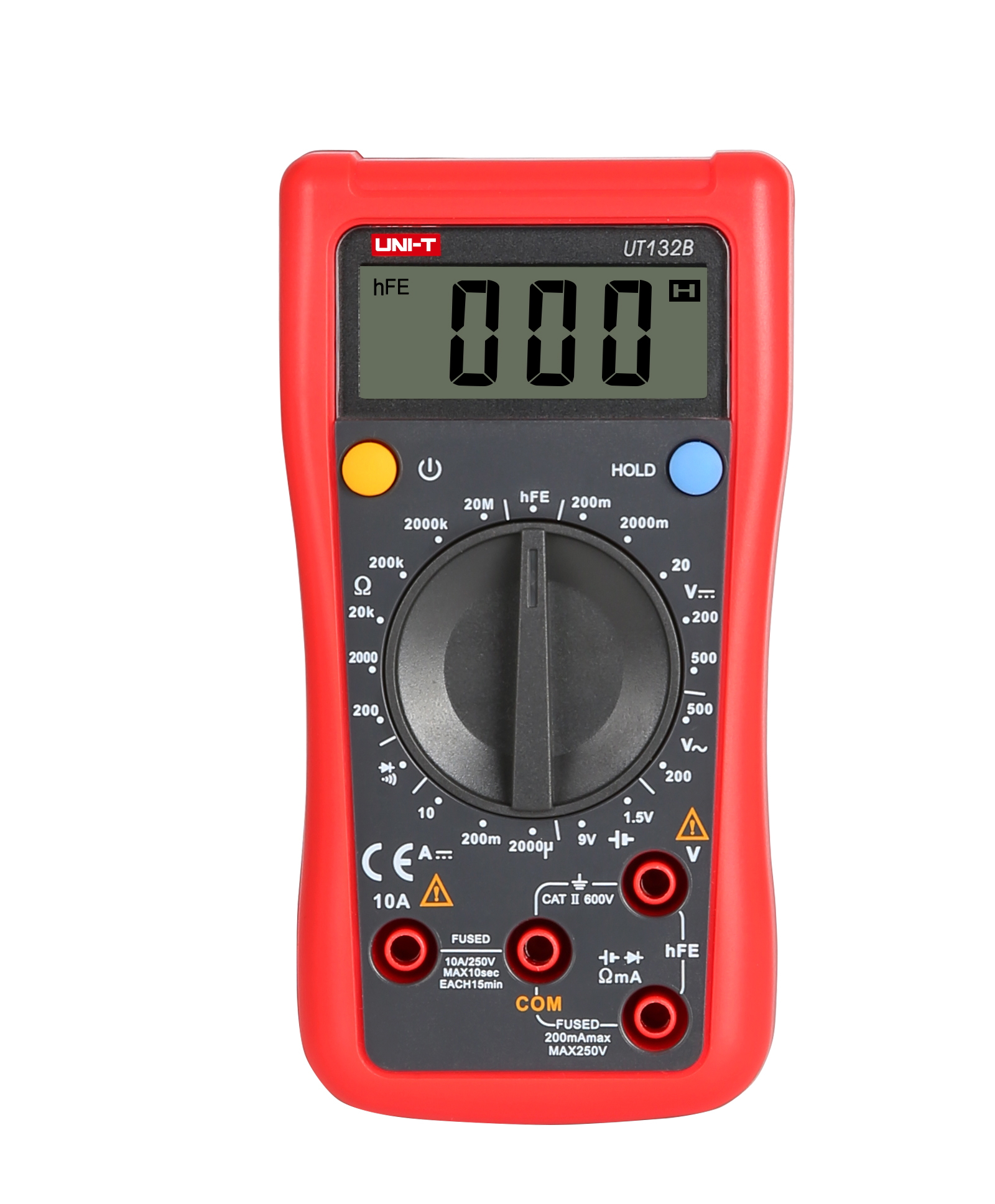

Digital multimeter

UT132 A/B

UT132A is a palm size digital multimeter, testing AC/DC voltage, resistance and more. Over 10MΩ input impedance for DCV to ensure test accuracy.

Specifications	Range	Best Accuracy
Model		UT132A	UT132B
DC Voltage (V)	EU: 200mV/2000mV/20V/ 200V/600V	±(0.5%+2)
DC Voltage (V)	ROW: 200mV/2000mV/20V/ 200V/250V	±(0.5%+2)
AC Voltage (V)	EU: 200V/600V	±(1.2%+3)
AC Voltage (V)	ROW: 200V/250V	±(1.2%+3)
DC Current (A)	2000μA/20mA/200mA/10A	±(1%+2)
DC Current (A)	2000μA/200mA/10A		±(1%+2)
Resistance (Ω)	200Ω/2000Ω/20kΩ/200k Ω/2000kΩ/20MΩ	±(0.8%+5)	±(0.8%+5)
Features
Display Count		2000	2000
Manual Range		√	√
Battery Test	1.5V/ 9V		±(1%+2)
Square Wave Output		√
Diode		√	√
Transistor		√	√
Continuity Buzzer			√
Low Battery Indication		√	√
Data Hold		√	√
Input Impedance for DCV	Around 10MΩ	√	√
General Characteristics
Power	9V battery (6F22)
LCD Size	49mm X 18mm
Product Color	Red and grey
Product Net Weight	200g
Product Size	72mm×137mm×35mm
Standard Accessories	Battery, test lead, Multi-purpose socket
Standard Individual Packing	Gift box, English manual
Standard Quantity Per Carton	66pcs
Standard Carton Measurement	595mm × 360mm × 420mm (0.09CBM per standard carton)
Standard Carton Gross Weight	23kg
