Digital multimeter

UT139 E/S

Main Features

1. True RMS

2. NCV

3. Auto and manual ranges selectable

4. LPF (low pass filter) function

5. LoZ (low impedance input) function

6. 31-segment analog bar graph

7. Diode, duty ratio and continuity buzzer

Functions	Range	Basic Accuracy
Functions	Range	UT139E	UT139S
DC voltage (V)	60mV/600mV /6V/60V/600V	±(0.5%＋2)	±(0.5%＋2)
AC voltage (V)	60mV/600mV /6V/60V/600V	±(0.8%+3)	±(0.8%+3)
DC current (A)	600μA/6000μA/60mA /600mA/6A/10A	±(0.7%+2)	±(0.7%+2)
AC current (A)	600μA/6000μA/60mA /600mA/6A/10A	±(1.0%+3)	±(1.0%+3)
Resistance (Ω)	600Ω/6kΩ/60kΩ /600kΩ/6MΩ/60MΩ	±(0.8%+2)	±(0.8%+2)
Capacitance (F)	9.999nF/99.99nF/999.9nF/9.999μF /99.99μF/999.9μF/9.999mF/99.99mF	±(4%+5)	±(4%+5)
Frequency (Hz)	10Hz~10MHz	±(0.1%+4)	±(0.1%+4)
Temperature (℃)	-40～1000℃	±(1.0%+4)	±(1.0%+4)
Temperature (℉)	-40～1832℉	±(1.5％+5)	±(1.5％+5)
Features
Safety rating		CAT III 600V
True RMS		√	√
LCD display		TN	EBTN
Display count		6000	6000
LPF (ACV)		√	√
LoZ (ACV)		√	√
Diode		√	√
Continuity buzzer		√	√
Duty cycle		√	√
NCV		√	√
Sampling rate		3 times/s	3 times/s
Analog bar graph		31 segments	31 segments
Range selection		√	√
Max/Min		√	√
Relative mode		√	√
Drop proof		1m	1m
General Characteristics
Product color		Red and grey
Product net weight		354g	345g
Product size		170×80×48mm

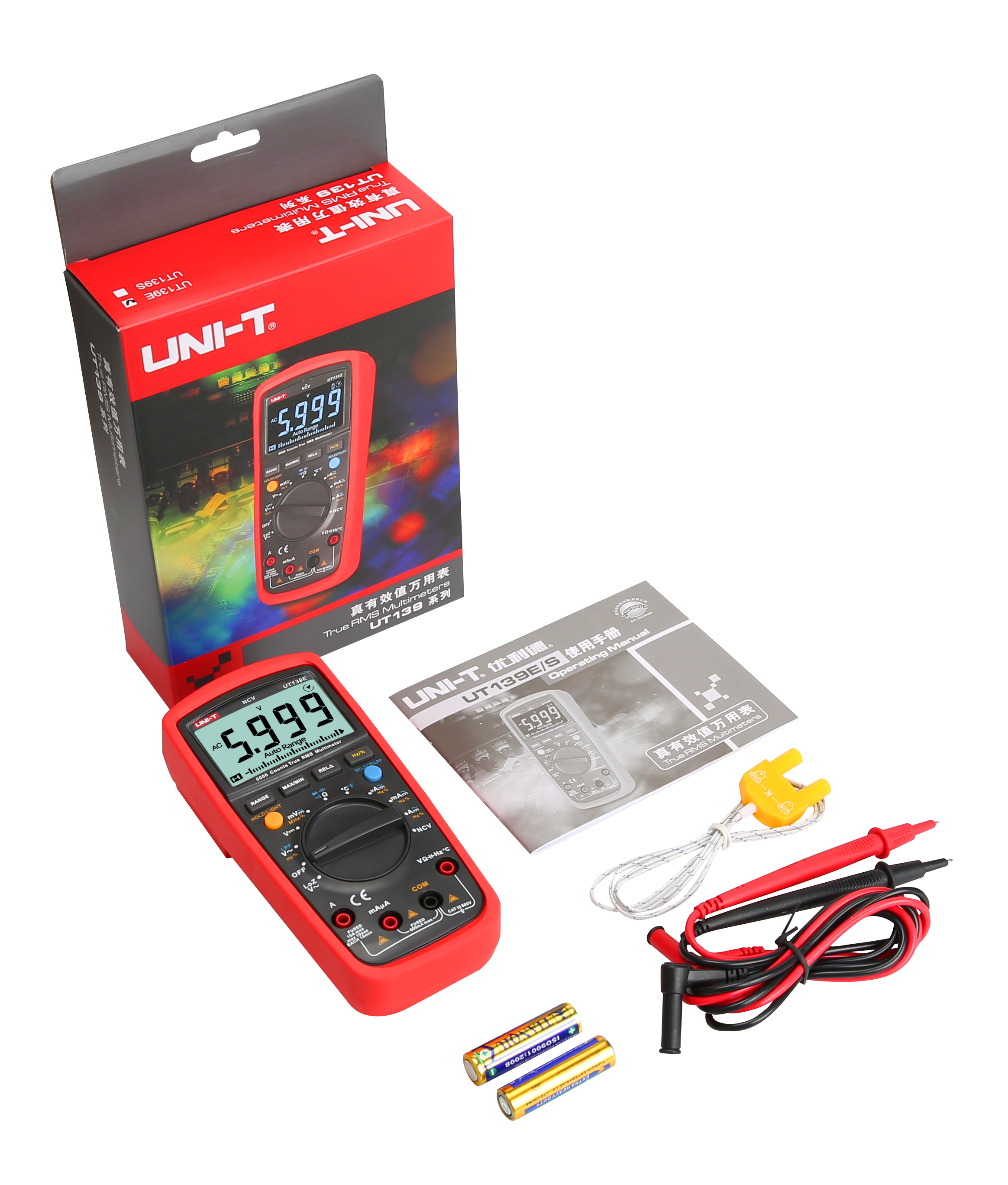

Standard individual packing		Gift box, English manual
Standard quantity per carton		40pcs
Standard carton size		645×450×340mm
Standard carton gross weight		23.12kg
