Digital multimeter

UT58 A/B/C

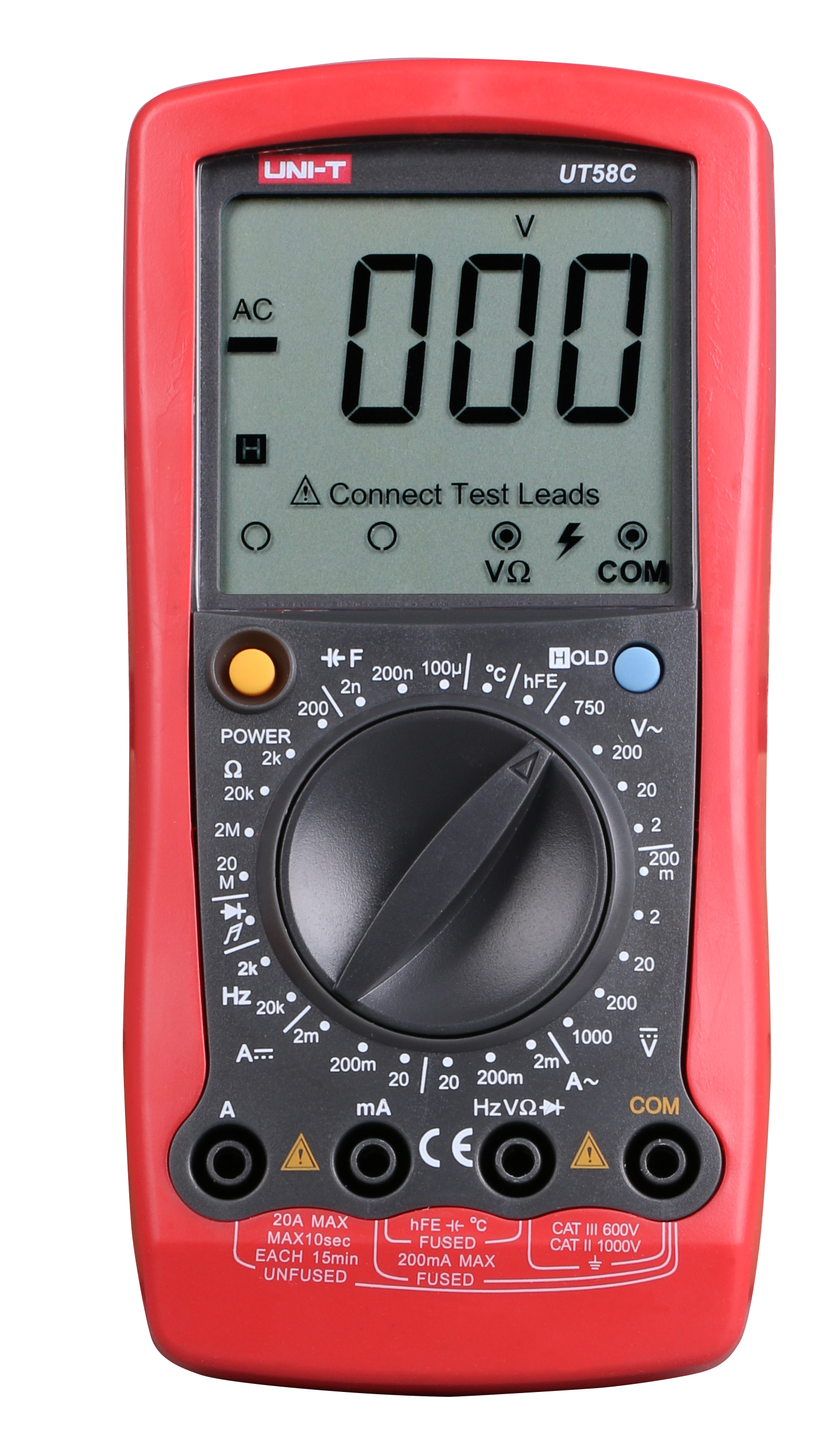

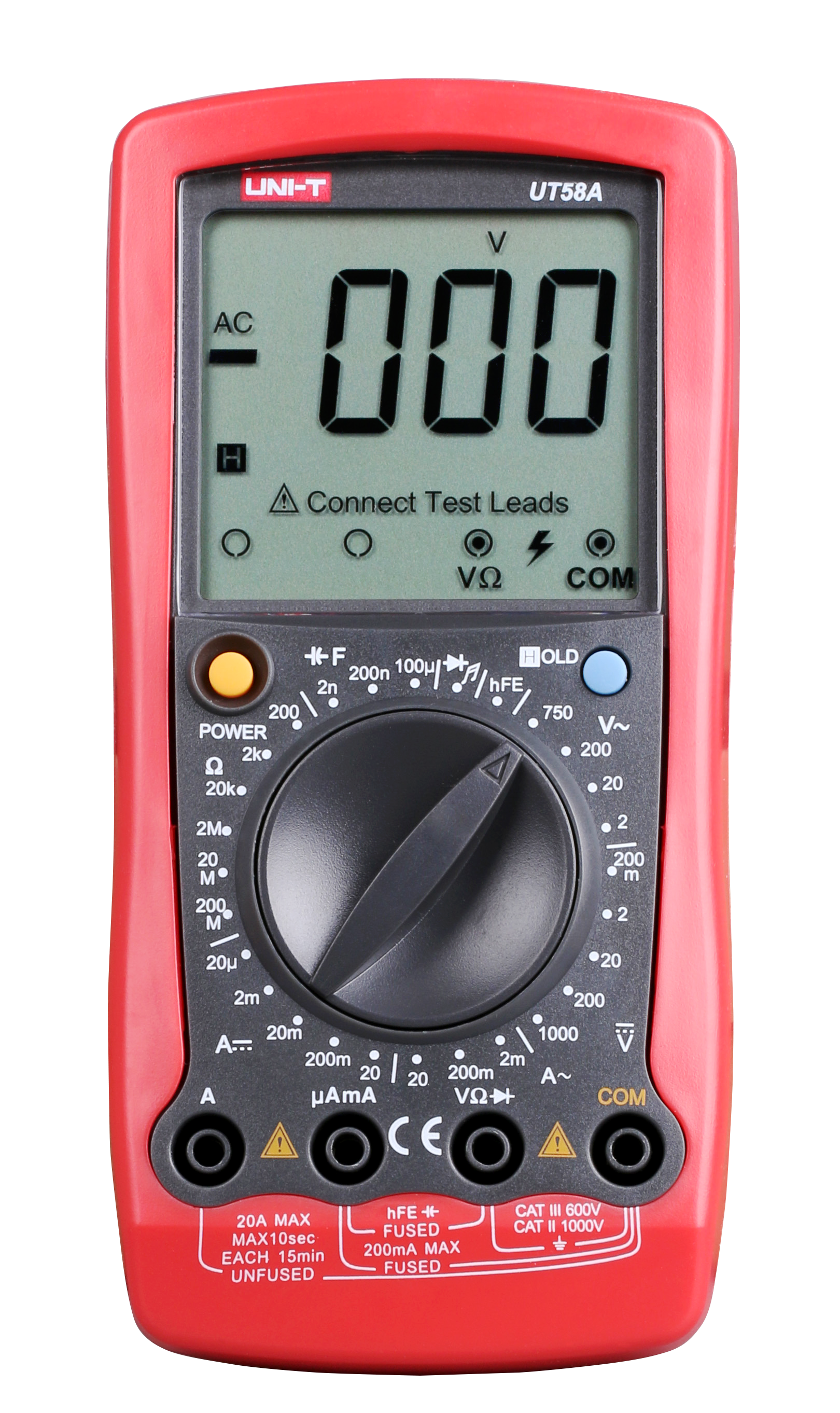

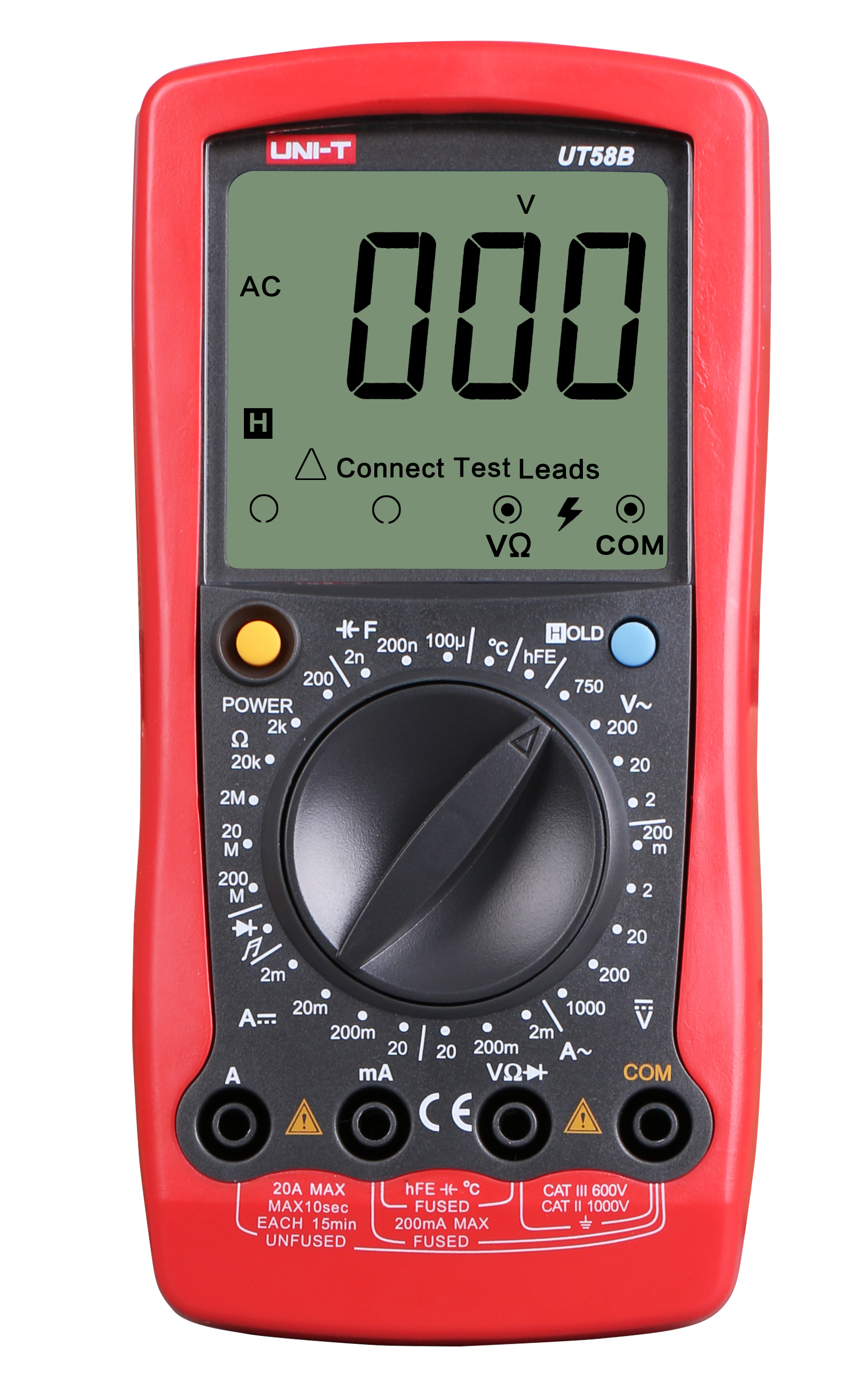

UNI-T's UT58A/B/C is a 2000-count digital multimeter with 60mm×54mm large LCD display and over 10MΩ input impedance.

Features

1. 2000 display count, update 2~3 times/s

2. Function symbols and test lead connection indication

3. Capacitance and transistor measurement

4. Overload protection

5. Diode and continuity buzzer; auto power off

6. Data hold

7. 20A AC/DC current measurement

Specifications	Range	Best Accuracy
Model		UT58A	UT58B	UT58C
DC Voltage (V)	200mV/2V/20V/200V/1000V	±(0.5%+1)	±(0.5%+1)	±(0.5%+1)
AC Voltage (V)	2V/20V/200V/750V	±(0.8%+3)	±(0.8%+3)	±(0.8%+3)
DC Current (A)	20μA/2mA/20mA/200mA/20A	±(0.8%+1)
	2mA/20mA/200mA/20A		±(0.8%+1)
	2mA/200mA/20A			±(0.8%+1)
AC Current (A)	2mA/200mA/20A	±(1%+3)	±(1%+3)	±(1%+3)
Resistance (Ω)	200Ω/2kΩ/20kΩ/2MΩ/20MΩ/200MΩ	±(0.8%+1)	±(0.8%+1)
Resistance (Ω)	200Ω/2kΩ/20kΩ/2MΩ/20MΩ			±(0.8%+1)
Capacitance (F)	2nF/200nF/100μF	±(4%+3)	±(4%+3)	±(4%+3)
Frequency (Hz)	2kHz/20kHz			±(1.5%+5)
Temperature (°C)	-40 °C～1000°C		±(1%+3)	±(1%+3)
Features
Display Count		2000	2000	2000
Manual Range		√	√	√
Diode		√	√	√
Transistor		√	√	√
Auto Power Off		√	√	√
Continuity Buzzer		√	√	√
Data Hold		√	√	√
Low Battery Indication		√	√	√
Full Icon Display		√	√	√
Input Impedance for DCV	Around 10MΩ	√	√	√
Test Lead Connection Indications		√	√	√
General Characteristics
Power	9V Battery (6F22)
LCD Size	60×54mm
Product Color	Red and grey
Product Net Weight	350g (Including holster)
Product Size	179mm×88mm×39mm
Standard Accessories	UT58A-Battery, Test Lead, Holster, Multi-Purpose Socket
Standard Accessories	UT58B/UT58C-Battery, Test Lead, Holster, Multi-Purpose Socket, Point Contact Temperature Probe
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	44pcs
Standard Carton Measurement	705×450×340mm (0.11 CBM Per Standard Carton)
Standard Carton Gross Weight	27kg
