Circuit detection

UT12 A/B/C

Product description: AC Voltage Detector
INQUIRY

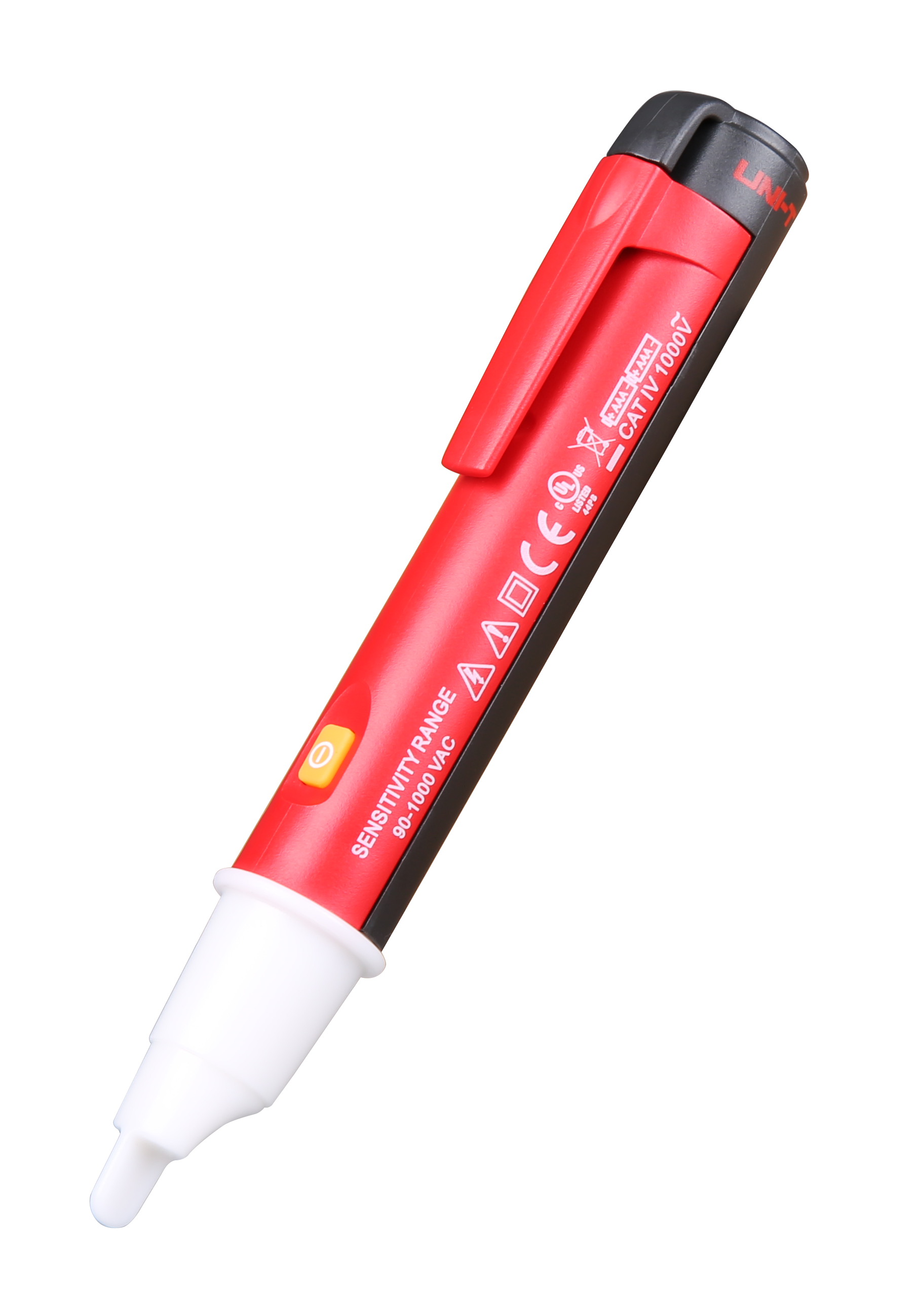

UT12 series is a non-contact AC voltage detector. It is lightweight and convenient to carry due to its pocket size. The voltage detector can be used in residential, commercial, and industrial settings. It can detect electricity when it is close in range of live adapters, connection terminals, or wires.

Features

1. UT12 series complies with CAT IV 1000V; prevent damage caused by transient voltage

2. LED indication

3. Low battery indicator

Specifications	Range
Model	UT12A	UT12B	UT12C
AC Voltage (V)	90V ~ 1000V	90V ~ 1000V	90V ~ 1000V
Frequency (Hz)	50/60Hz	50/60Hz	50/60Hz
Features
Vibration Indication			√ (Cancelable)
Beeper Indicator	√	Cancelable	√
LED Flashlight	√	√	√
Auto Power Off		Around 3 minutes	Around 3 minutes
Low Battery Indication	≤2.0V	≤2.0V	≤ 1.8V
NCV Detection By	Hold-on to on/off button	Auto sensing	Auto sensing
General Characteristics
Power	1.5V batteries (R03) × 2
Product Color	Red and grey
Product Net Weight	50g
Product Size	150mm × 20mm
Standard Accessories	Batteries
Standard Individual Packing	Blister, English Manual
Standard Quantity Per Carton	100pcs
Standard Carton Measurement	480mm×250mm×465mm (0.056CBM per standard carton)
Standard Carton Gross Weight	10.4kg
