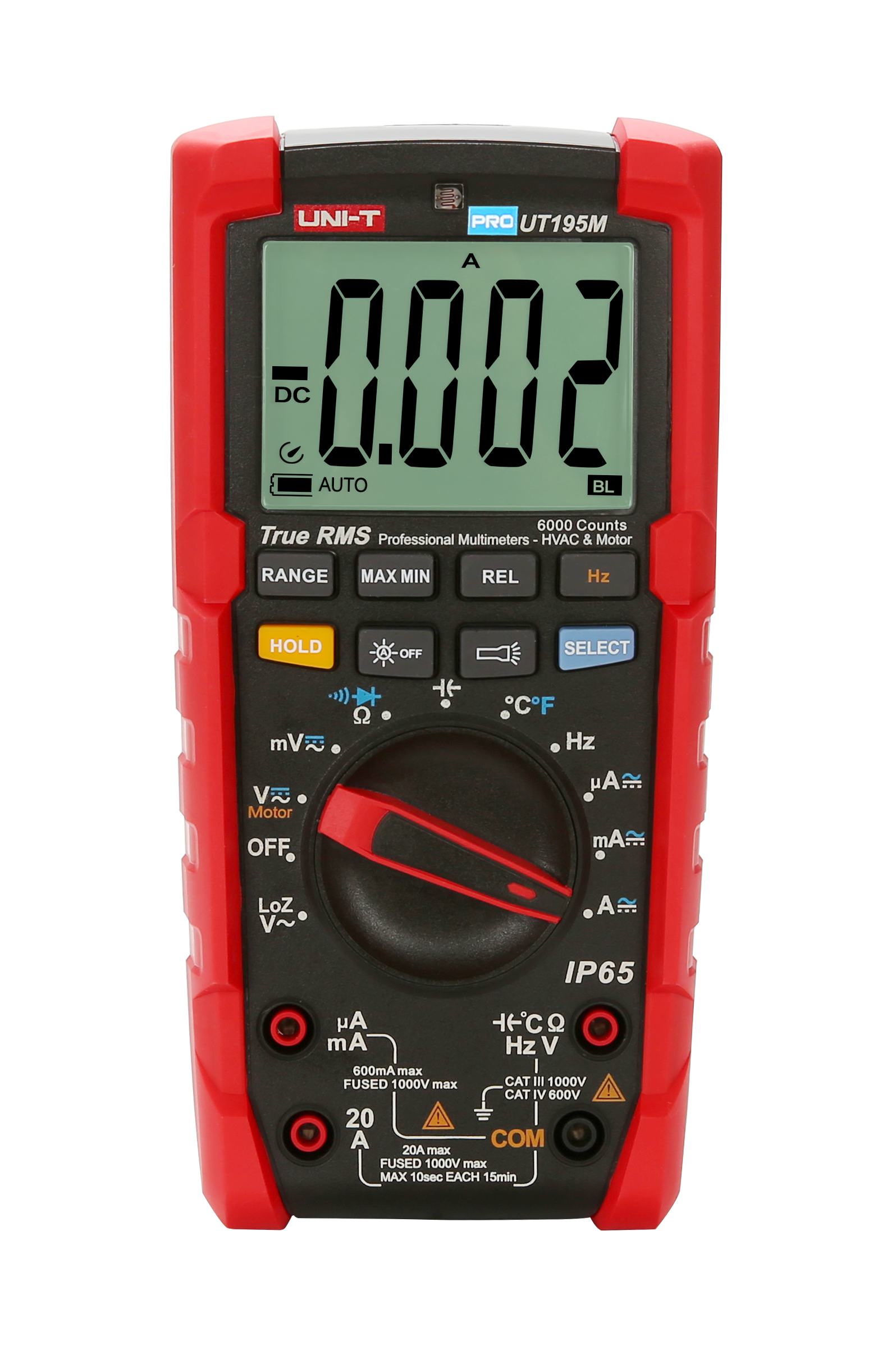

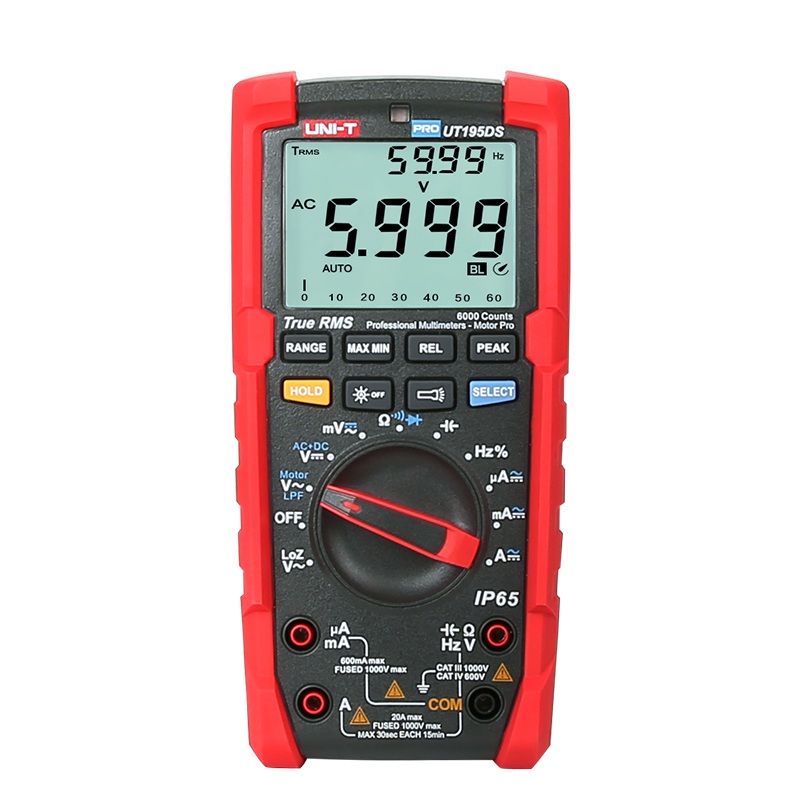

UT195 E/M/DS

Product description: Digital Multimeters
INQUIRY

Features

1. IP65 rating, 2m drop proof, CAT III 1000V, CAT IV 600V

2. Large 6000-count LCD screen

3. True RMS

4. ACV 750V 5kHz bandwidth

5. Flashlight

6. Auto LCD backlight controlled by light sensor (can be turned off)

7. LoZ voltage test, for ghost voltage measurement

8. 20A current measurement (max 30 seconds)

9. 31 analog bar

Specifications	Range	Best Accuracy
Model		UT195E	UT195M	UT195DS
DC voltage	600mV ~ 1000V	±(0.5%+3)	±(0.5%+3)	±(0.5%+3)
AC+DC	6.000V ~ 600V			±(1.5%+4)
AC voltage	600mV ~ 750V	±(0.7%+3)	±(0.7%+3)	±(0.7%+3)
LoZ ACV	600.0V	±(2.0%+3)	±(2.0%+3)	±(2.0%+3)
DC current (A)	600.0μA ~ 20A	±(0.8%+3)	±(0.8%+3)	±(0.8%+3)
AC current (A)	600.0μA ~ 20A	±(1.0%+3)	±(1.0%+3)	±(1.0%+3)
Resistance (Ω)	600.0Ω ~ 60.00MΩ	±(0.8%+2)	±(0.8%+2)	±(0.8%+2)
Capacitance	6.000nF ~ 60.00mF	±(3%+5)	±(3%+5)	±(3%+5)
Frequency	60.00Hz ~ 10.00MHz	±(0.1%+4)
Frequency	60.00Hz ~ 40.00MHz		±(0.1%+4)	±(0.1%+4)
Duty ratio	0.1% ~ 99.9%	±(2.0%+5)	N/A	±(2.0%+5)
Temperature °C	-40 ~ 1000°C		±(1.5%+4°C)
Temperature °F	-40 ~ 1832°F		±(2.0%+5°F)
Peak hold	250μs
Features
Display count		6000	6000	6000
Display interface (HTN)		Single display	Single display	Dual display
Measurement of digital conversion rate	times/s	3	3	5
Measurement of analogue bar conversion rate	times/s	10		20
Analogue bar	31 section	√		√
True RMS		√	√	√
AC voltage frequency response		45 ~ 400Hz	45 ~1kHz	45 ~5kHz
AC current frequency response		45 ~ 400Hz	45 ~1kHz	45 ~5kHz
Motor phase sequence measurement	600.0V
Low pass filter test				√ (1kHz 3dB attenuation)
Diode/Continuity test		3.5V	3V	3V
Auto/Manual range	√
Auto power off	√
Continuity buzzer	√
Low battery indication	√
Data hold	√
MAX/MIN	√
Function selection	√
Flashlight	√
Auto backlight	√
Working temperature	0 °C ~40 °C
2m drop proof	√
Protection rating	IP65
General characteristics
Power supply	9V 6F22 carbon-zinc or 6LR61 alkaline battery
LCD size	66mm × 51mm
Device color	Red and grey
Device weight	450g
Device size	206.5mm×95.5mm×61mm

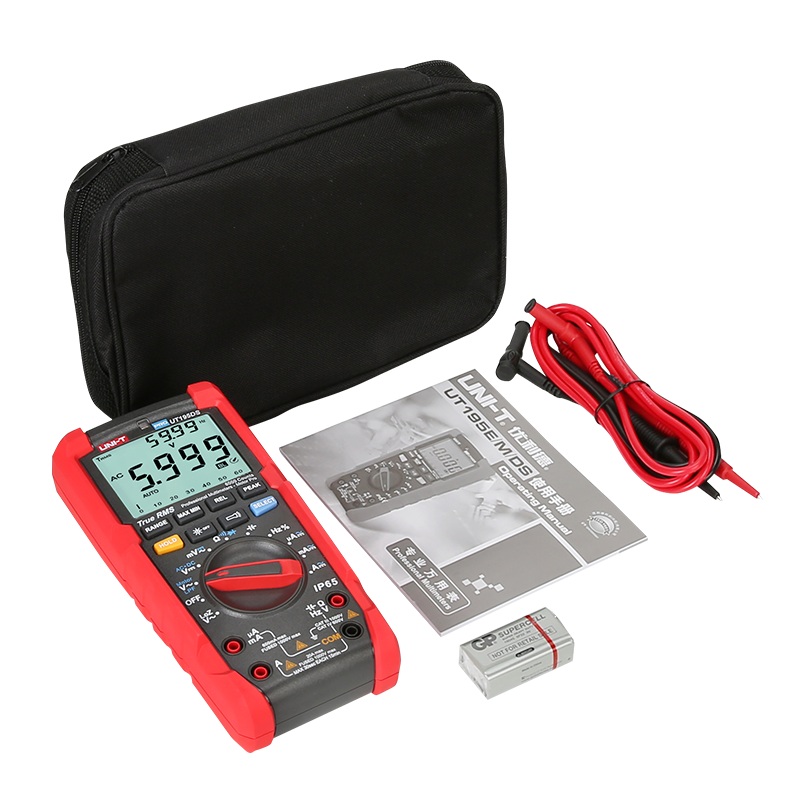

Standard accessories	Test probes, battery, carrying bag, point type temperature probe (UT195M)
Standard individual packing	Gift box, blister, user manual
Standard quantity per carton	10pcs
Standard carton size	605mm×335mm×405mm
Standard carton gross weight	11.8kg
