Clamp meter

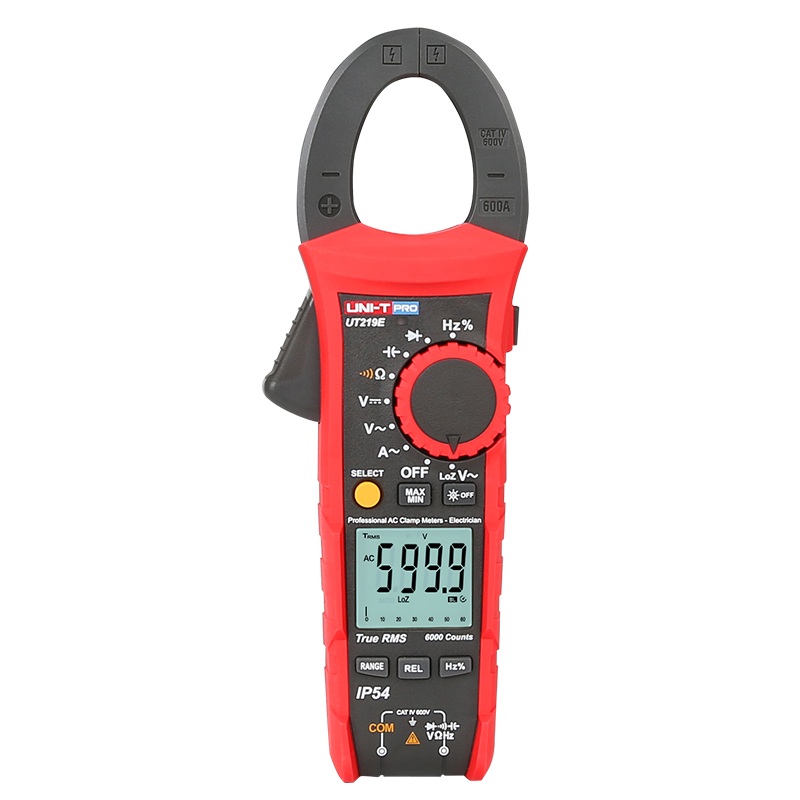

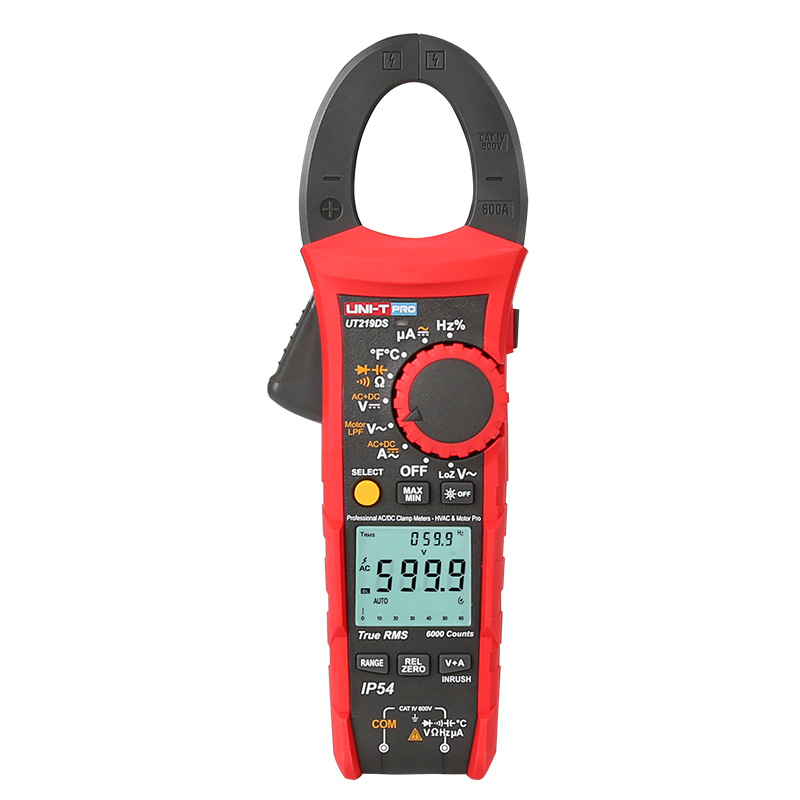

UT219 E/M/DS

Product description: Digital Multimeters
INQUIRY

Features

1. 2m drop proof, IP54, CAT IV 600V

2. Large 6000-digit LCD backlight (auto) display

3. True RMS

4. LoZ voltage test, for ghost voltage measurement

5. MAX/MIN/REL testing modes, data hold, excluding the test lead interference of resistance measurement

Specifications
Model		UT219E	UT219M	UT219DS
AC current (A)	60A/600A	±(1.8%+6)	±(1.8%+6)	±(1.8%+6)
Inrush current (A)	60A/600A			±10%
DC current (A)	60A/600A			±(1.8%+6)
AC+DC current (A)	60A/600A			±(3.0%+6)
AC voltage (V)	6V/60V/600V	±(1.0%+6)	±(1.0%+6)	±(1.0%+6)
LoZ ACV	600V	±(2.5%+6)	±(2.5%+6)	±(2.5%+6)
DC voltage (V)	600mV/6V/60V/600V	±(0.6%+3)
DC voltage (V)	6V/60V/600V		±(0.6%+3)	±(0.6%+3)
AC+DC voltage (V)	6V/60V/600V			±(2.0%+6)
DC current (μA)	2000μA		±(0.9%+6)	±(0.9%+6)
AC current (μA)	2000μA		±(1.5%+6)	±(1.5%+6)
Resistance (Ω)	60Ω		±(1.5%+3)
Resistance (Ω)	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ	±(1.0%+3)	±(1.0%+3)	±(1.0%+3)
Capacitance	6nF		±(4.0%+7)
Capacitance	60nF/600nF/6μF/60μF/600μF/6mF/60mF	±(4.0%+7)	±(4.0%+7)	±(4.0%+7)
Frequency	60Hz ~ 10MHz	±(0.1%+6)
Frequency	60Hz ~ 40MHz		±(0.1%+6)	±(0.1%+6)
Duty ratio	0.1% ~ 99.9%	±(2.6%+7)		±(2.6%+7)
Temperature (℃)	-40~1000℃		±(2.0%+5℃)	±(2.0%+5℃)
Temperature (℉)	-40~1832℉		±(2.0%+9℉)	±(2.0%+9℉)
Features
Display count		6000	6000	6000
Auto/Manual range		√	√	√
Jaw size		33mm	33mm	33mm
True RMS		√	√	√
AC current frequency response		40Hz~ 400Hz	40Hz~ 400Hz	40Hz~ 400Hz
AC voltage frequency response		40Hz~ 400Hz	40Hz~ 400Hz	40Hz~ 1kHz
3-phase motor test	600.0V		√	√
Low pass filter	1kHz, 3db attenuation			√
Diode test	6V/10V	√
Diode test	3V		√	√
Measurement sampling rate	times/s	3	3	5
Analog bar sampling rate	times/s	10		20
Analog bar	31 bars	√	--	√
LCD display (HTN)	interface	Single	Single	Dual
Auto power off		√	√	√
Low battery indication		√	√	√
Data hold (H)		√	√	√
Relative mode (REL)		√	√	√
MAX/MIN		√	√	√
V+A dual display				√
Function selection (SELECT)		√	√	√
Auto backlight		√	√	√
2m drop test		√	√	√
Safety rating		IP54	IP54	IP54
Input impedance	≥10MΩ	√	√	√
General Characteristics
Power supply	AAA 1.5V alkaline battery × 3
LCD size	35mm × 31mm
Device color	Red and grey
Device weight	310g
Device size	235mm × 82mm × 47mm
Standard accessories	UT219E-test leads, batteries, carrying bag UT219M/DS-test leads, batteries, K-type temperature probe, carrying bag
Standard individual packing	Blister, gift box, manual
Standard quantity per carton	10pcs
Standard carton size	490mm × 335mm × 330mm
Standard carton gross weight	8kg
