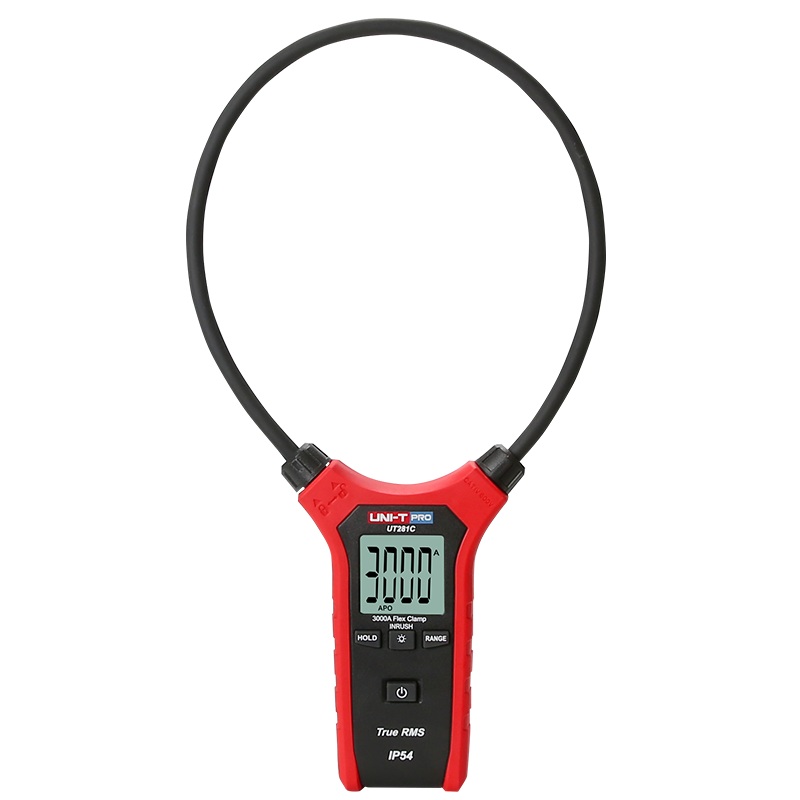

Clamp meter

UT281A/C

Features

1. 2m drop proof, IP54, ETL/Intertek certified 3^rd edition CE

2. Coil diameter: 0.75cm, bending length: 24.5cm

3. Large LCD display for clear reading

4. True RMS

5. Long press INRUSH key for 2s to measure inrush current

6. Data hold, backlight, auto power off

Specifications	Range	Basic Precision
Model		UT281A	UT281C
Max current measurement (AC)	0.00A ~ 3000A	±(3%+5)	±(3%+5)
Current measurement (AC)	0.00A ~ 30.00A	±(3%+5)	±(3%+5)
Current measurement (AC)	0.0A ~ 300.0A	±(3%+5)	±(3%+5)
Current measurement (AC)	0A ~ 3000A	±(3%+5)	±(3%+5)
Inrush current measurement	0.00A ~ 3000A	For reference	For reference
Frequency response	45Hz~500Hz (sine wave)	√	√
Jaw size	Rogowski flex coil (diameter: 8mm)	Bending length: 10″ inches (24.5cm); radius: around 1.5″ inches (3.8cm)	Bending length: 18″ inches (45.7cm); radius: around 3.1″ inches (8cm)
True RMS measurement		√	√
Measurement of digital conversion rate	times/s	3	3
LCD display (TN)	interface	Single display	Single display
Manual range	√
Auto power off	√
Buzzer	√
Low battery indication	√
Data hold	√
Manual backlight	√
Working temperature	0°C ~ 50°C
2m drop proof	√
Protection rating	IP54
Safety certification	CAT IV 600V
General Characteristics
Device color	Red and grey
Device weight		220g	236g
Device size		300mm × 150mm × 55mm	350mm × 190mm × 55mm

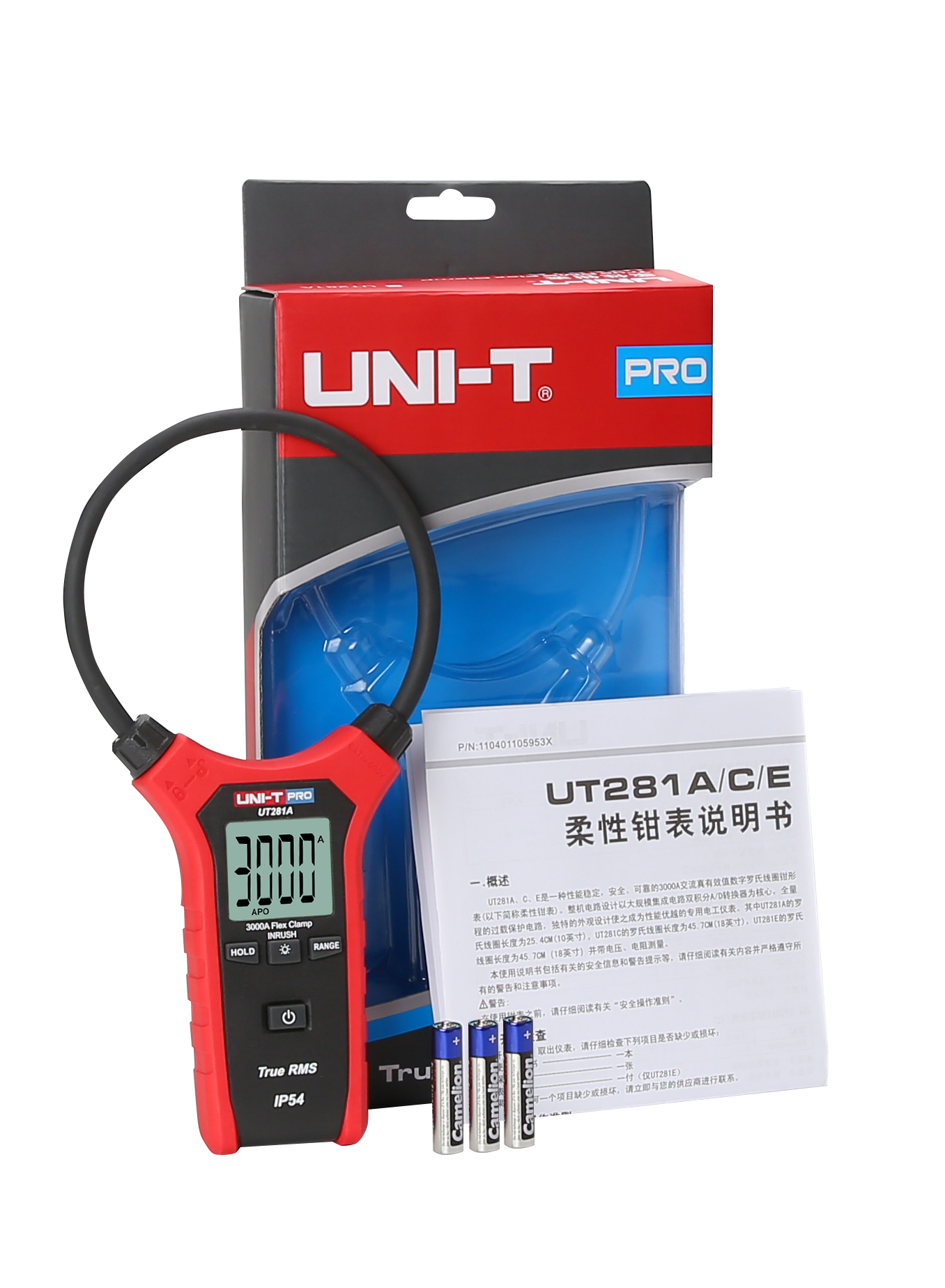

Standard individual packing	Gift box, blister, English manual
Standard quantity per carton	8pcs
Standard carton size		600mm × 380mm × 270mm	650mm × 420mm × 270mm
Standard carton gross weight		9.5kg	10.1kg
