Specifications

Range

Best Accuracy

Model

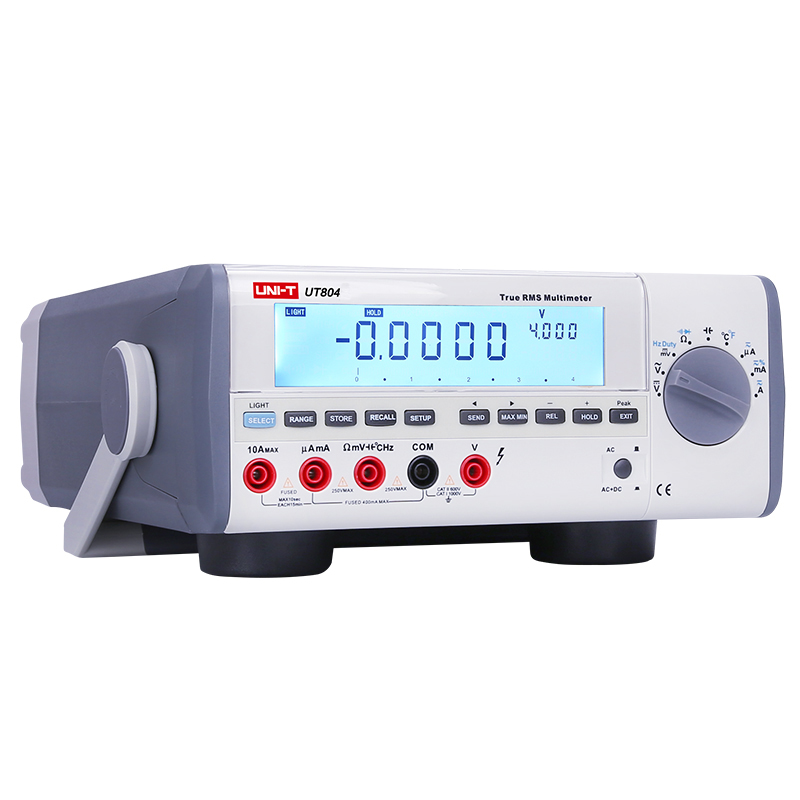

UT804

DC Voltage (V)

400mV/4V/40V/400V/1000V

±(0.025%+5)

AC Voltage (V)

4V/40V/400V/1000V

±(0.4%+30)

DC Current (A)

400μA/4000μA/40mA/400mA/10A

±(0.1%+15)

AC Current (A)

400μA/4000μA/40mA/400mA/10A

±(0.7%+15)

Resistance (Ω)

400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ

±(0.3%+40)

Capacitance (F)

40nF/400nF/4μF/40μF/400μF/4mF/40mF

±(1%+20)

Frequency (Hz)

40Hz/400Hz/4kHz/40kHz/400kHz

/4MHz/40MHz/400MHz

±(0.01%+8)

Temperature (°C)

-40 °C ～ 1000°C

±(1%+30)

Temperature (°F)

-40°F～1832°F

±(1.5%+50)

Features

Max Display

39999

Auto Range

√

True RMS

√

Bandwidth (Hz)

100kHz

√

Duty Ratio

0～100%

±(1.0%+40)

Diode

√

Auto Power Off

√

Continuity Buzzer

√

Low Battery Indication

√

Data Hold

√

Relative Measurement

√

MAX/MIN

√

Peak Hold

√

Data Storage

9999

Data Recall

√

RS-232

√

USB interface

√

LCD Double Backlight

√

Analog Bar Graph

81

Function Setup

√

Input Protection

√

Input Impedance

400mV range: around 4GΩ, other ranges: 10MΩ

√

Auto/Manual Alarm

√

4 - 20mA

0～100%

±(1%+50)

Voltage and Current: AC+DC Measurement

√

General Characteristics

Power

AC 220V/50Hz or 1.5V batteries (2#) × 6

LCD Size

128mm × 28mm

Product Color

White and grey

Product Net Weight

2.2kg

Product Size

310mm × 240mm × 105mm

Standard Accessories

Test Lead, AC 220V Power Cord, Software CD, RS-232 Interface Cable, USB Interface Cable, Alligator Clip, Point Contact Temperature Probe, Multi-purpose Socket

Standard Individual Packing

Gift Box, User Manual

Standard Quantity Per Carton

4pcs

Standard Carton Measurement

 680mm × 365mm × 320mm

Standard Carton Gross Weight

15kg
