Digital multimeter

UT805A

Product description: Benchtop Digital Multimeter
INQUIRY

UT805A is a 200000-count auto range, benchtop digital multimeter with 256x64 pixel dot-matrix LCD and a high accuracy up to ±(0.015%+3). This advanced benchtop multimeter is suitable for high precision measurement needs. From universities to laboratories, UT805A’s wide measurement range is able to meet all requirements.

Specifications	Range	Best Accuracy
Model		UT805A
DC Voltage (V)	200mV/2V/20V/200V/1000V	±(0.015%+3)
AC Voltage (V)	200mV/2V/20V/200V/750V	±(0.2%+100)
DC Current (A)	2mA/200mA/10A	±(0.03%+10)
AC Current (A)	2mA/200mA/10A	±(0.3%+100)
Resistance (Ω)	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ	±(0.02%+6)
Capacitance (F)	6nF/60nF/600nF/6μF/60μF/600μF/6mF	±(2%+5)
Frequency (Hz)	10Hz～60MHz	±(0.1%+3)
Features
Max Display		199999
Auto Range		√
True RMS		√
Bandwidth (Hz)	100kHz	√
Diode		√
Continuity Buzzer		√
Data Hold		√
Relative Measurement		√
MAX/MIN		√
Data Storage		100
Data Recall		√
RS-232 Data Transmission		√
USB Data Transmission		√
LCD Backlight		√
Dot-matrix Liqid Crystal Display	256×64 pixels	√
Setup		√
Input Protection		√
Input Impedance	2V range: about 10GΩ, other range is 10MΩ	√
Voltage & Current: AC+DC		√
General Characteristics
Power	AC 220V/50Hz
LCD Size	128mm × 28mm
Product Color	White and Grey
Product Net Weight	3.2kg
Product Size	300mm × 245mm × 105mm

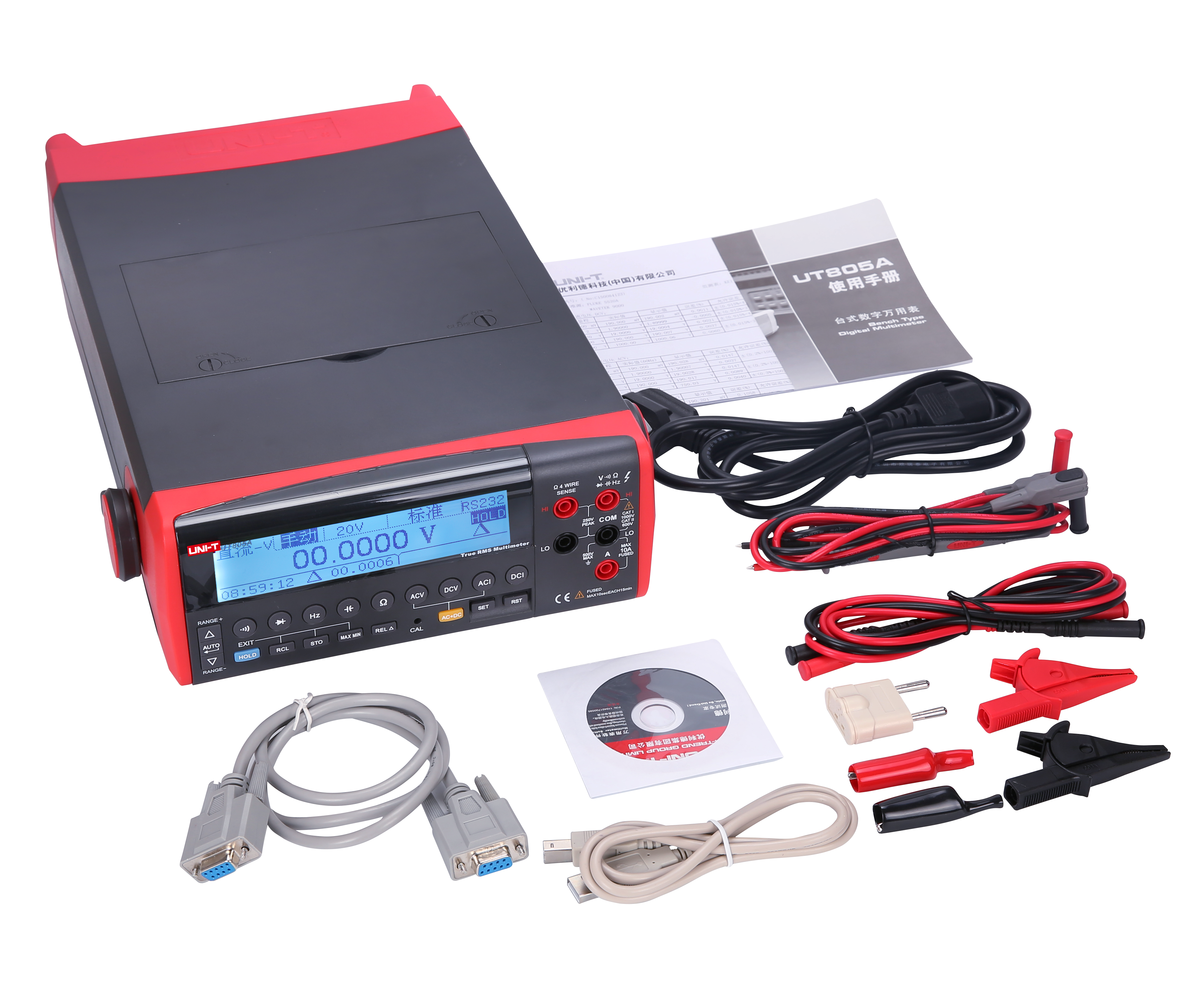

Standard Accessories	Probe, AC 220V Power Cord, Software CD, USB Interface Cable, RS232C Interface Cable, Alligator Clip, Multi-purpose Socket, Test Line
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	4pcs
Standard Carton Measurement	685mm × 450mm × 315mm
Standard Carton Gross Weight	19.2kg
