Features
1. 40000 display count, 0.025% accuracy
2. Can set the interval for auto data recording
3. MAX/MIN/REL modes; peak hold; analog bar graph
4. Measure AC and DC at the same time (AC+DC)
5. 40-20mA% test
6. 45Hz~100kHz frequency response
7. LCD backlight; misplug alarm
8. Auto and manual ranges selectable
9. USB interface; Bluetooth connection with a cellphone for data monitoring
10. Temperature measurement, equipped with k-type temperature probe
| Specifications | Range | Best Accuracy | ||

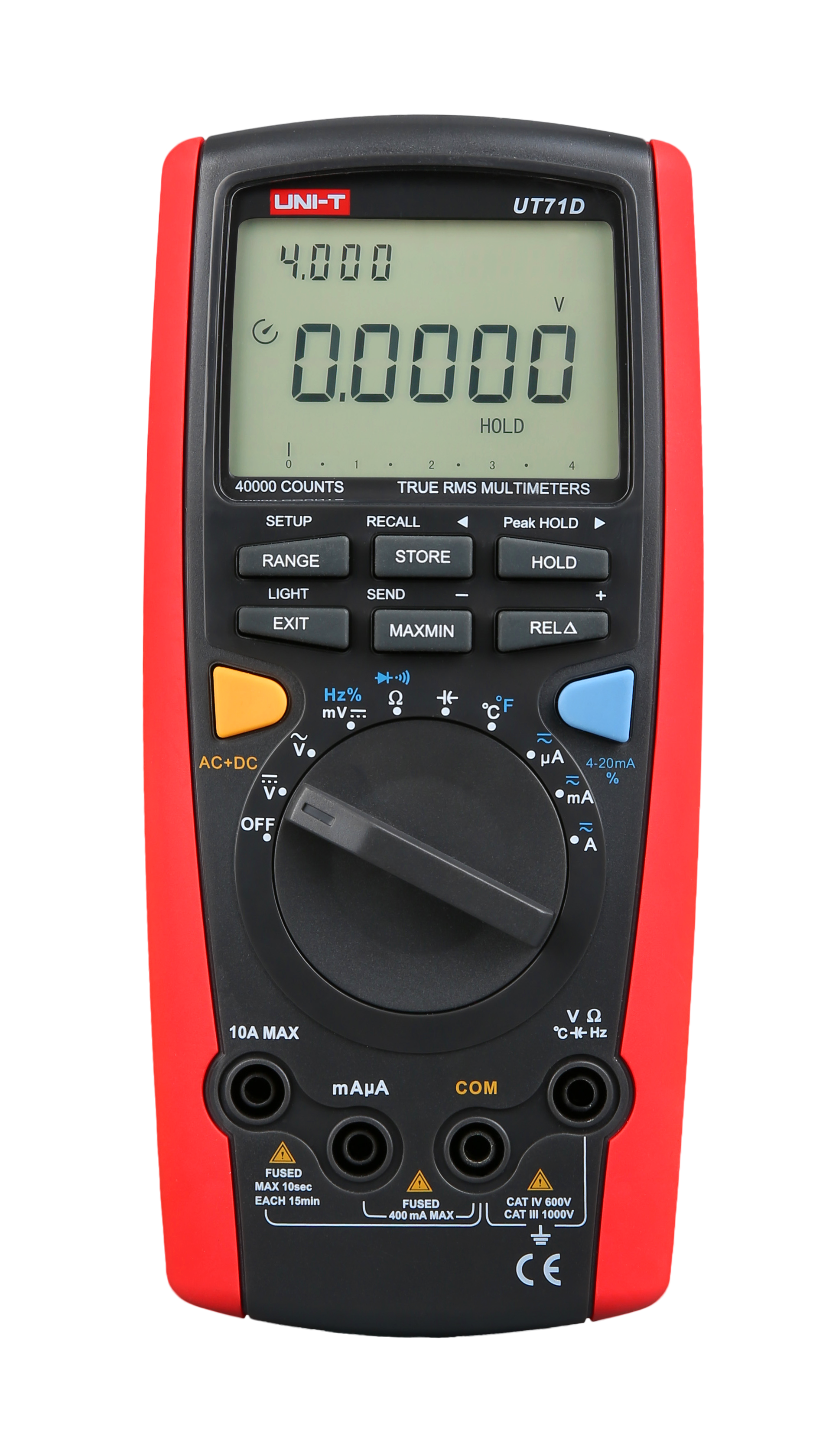

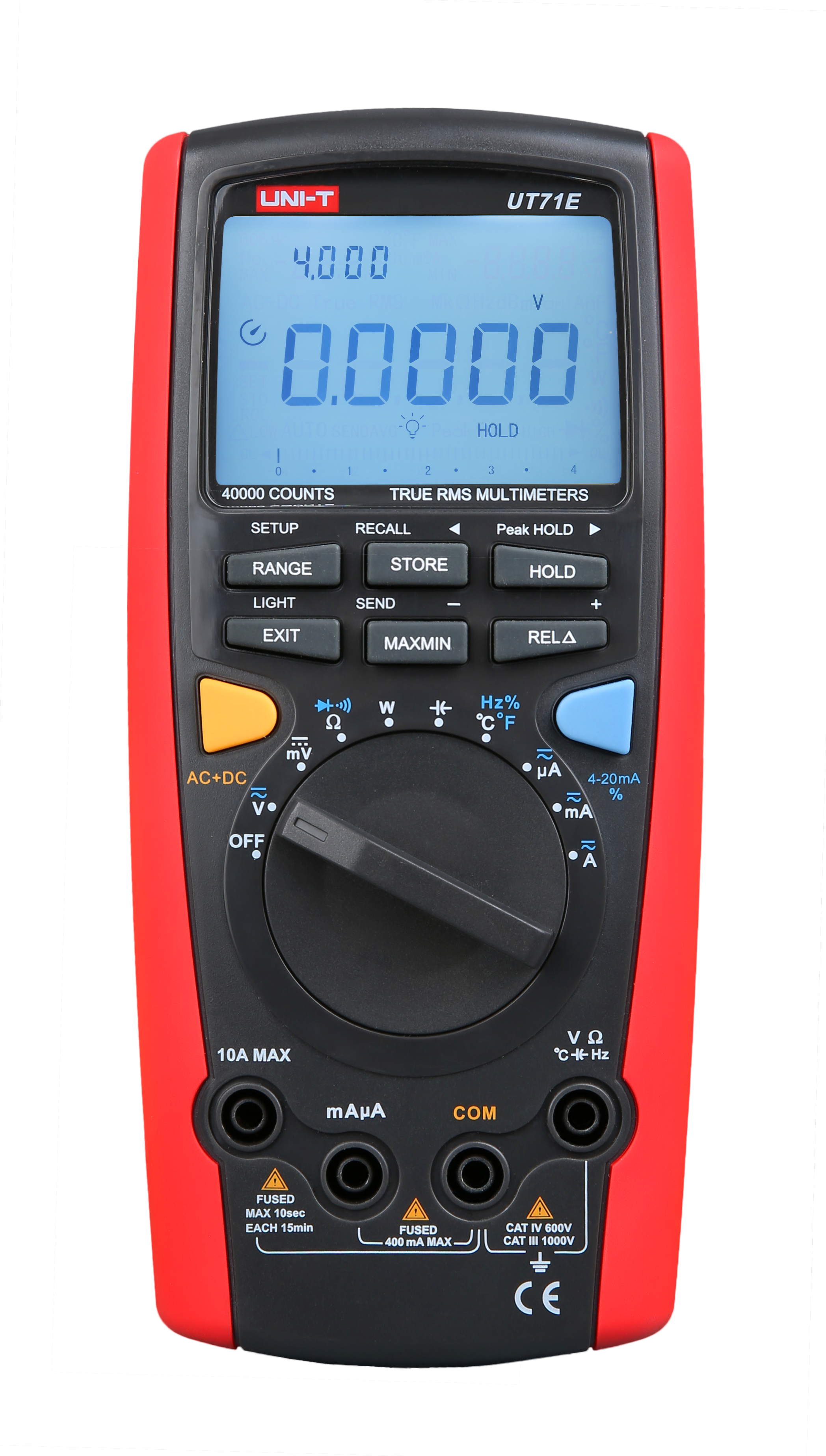

| Model | UT71C | UT71D | UT71E | |
| DC Voltage (V) | 400mV/4V/40V/400V/1000V | ±(0.025%+5) | ±(0.025%+5) | ±(0.025%+5) |
| AC Voltage (V) | 4V/40V/400V/1000V | ±(0.4%+30) | ±(0.4%+30) | ±(0.4%+30) |
| DC Current (A) | 400μA/4000μA/40mA/400mA/10A | ±(0.1%+15) | ±(0.1%+15) | ±(0.1%+15) |
| AC Current (A) | 400μA/4000μA/40mA/400mA/10A | ±(0.7%+15) | ±(0.7%+15) | ±(0.7%+15) |
| Resistance (Ω) | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(0.3%+8) | ±(0.3%+8) | ±(0.3%+8) |
| Capacitance (F) | 40nF/400nF/4μF/40μF/400μF/4mF/40mF | ±(1%+20) | ±(1%+20) | ±(1%+20) |
| Frequency (Hz) | 40Hz-400MHz | ±(0.01%+8) | ±(0.01%+8) | ±(0.01%+8) |
| Temperature (°C) | -40 °C ～ 1000°C | ±(1%+30) | ±(1%+30) | ±(1%+30) |
| Temperature (°F) | -40°F～1832°F | ±(1.5%+50) | ±(1.5%+50) | ±(1.5%+50) |
| Power (W) | 2500W | ±(2%+10) | ||
| Features | ||||
| Display Count | 40000 | 40000 | 40000 | |
| Auto Range | √ | √ | √ | |
| True RMS | √ | √ | √ | |
| Bandwidth (Hz) | 100kHz | √ | √ | √ |
| Duty Cycle | 10% ～ 90% | ±(1%+30) | ±(1%+30) | ±(1%+30) |
| Diode | √ | √ | √ | |
| Auto Power Off | √ | √ | √ | |
| Continuity Buzzer | √ | √ | √ | |
| Low Battery Indication | √ | √ | √ | |
| Data Hold | √ | √ | √ | |
| Relative Mode | √ | √ | √ | |
| MAX/MIN | √ | √ | √ | |
| Data Logging | 100 | 9999 | 100 | |
| USB Interface | √ | √ | √ | |
| Double Backlight | √ | √ | √ | |
| Analogue Bar Graph | √ | √ | √ | |
| Full Icon Display | √ | √ | √ | |
| Setup | √ | √ | √ | |
| Input Impedance for DCV | DC 400mV: around 2.5GΩ; Other ranges: 10MΩ | √ | √ | √ |
| 4 - 20mA Loop | 0～100% | ±(1%+50) | ±(1%+50) | ±(1%+50) |
| Fused 10A | √ | √ | √ | |
| Current Measurement Alarm | √ | √ | √ | |
| Voltage & Current AC+DC Measurement | √ | √ | √ | |
| General Characteristics | ||||
| Power | 9V Battery (6F22) | |||
| LCD Size | 73mm X 50mm | |||
| Product Color | Red and grey | |||
| Product Net Weight | 384g | |||
| Product Size | 200mm X 93mm X 40mm | |||

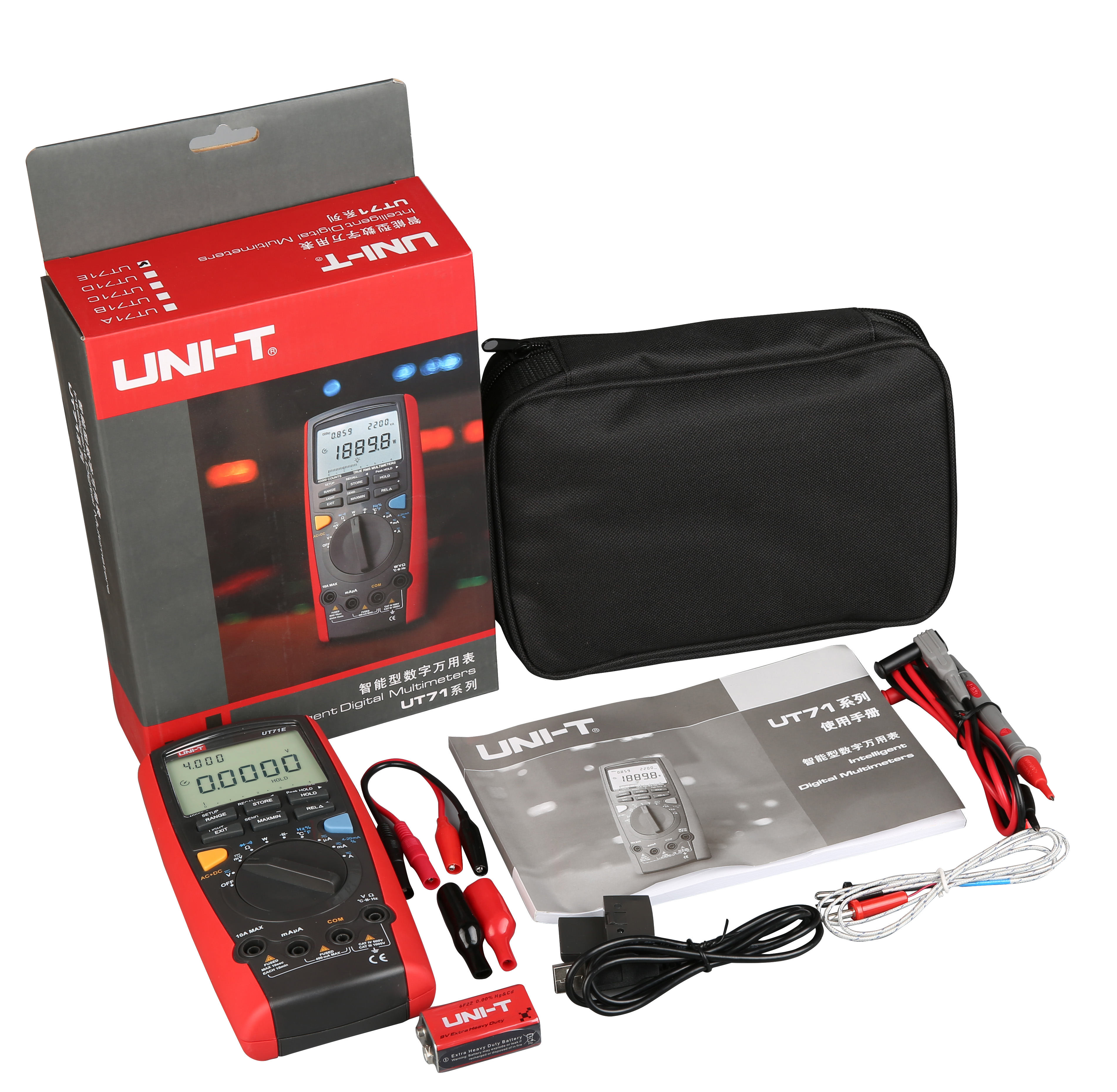

| Standard Accessories |
UT71C/UT71D-Battery, Test Lead, Alligator Clip, Test Clip, USB Interface Cable, PC Software CD, Carrying Bag, Point Contact Temperature Probe |
|||
|
UT71E-Battery, Test Lead, Alligator Clip, Test Clip, USB Interface Cable, PC Software CD, Carrying Bag, Point Contact Temperature Probe, Power Adaptor |
||||
| Standard Individual Packing | Gift Box, English Manual | |||
| Standard Quantity Per Carton | 22pcs | |||
| Standard Carton Measurement | 535mm × 370mm × 425mm (0.084CBM Per Standard Carton) | |||
| Standard Carton Gross Weight | 22kg | |||
