Digital multimeter

  • DT8200G
DT8200G

DT8200G

  • Product description: Digital Multimeters
  • INQUIRY
Characteristic

Large screen and Easy to read
Clear to read in dark working condition with Blue backlight
Data hold function for easy reading after measurement
With temperature test function
With wrong insert protection, mechanical protection design

Technology features

DCV: 200m-2-20-200-1000V                                        ±0.5%
ACV: 2-20-200-750V                                                       ±1.0%
DCA: 2m-20m-200m-10A                                              ±1.8%
ACA: 2m-20m-200m-10A                                               ±2.0%
Resistance: 200-2K-20K-200K-2M-20M-200MΩ       ±1.0%
Capacitance: 20n-200n-2u-20uF                                  ±4.0%
Frequency: 2K-20KHz                                                      ±3.0%
Temperature: -20°C ~1000°C                                        ±2.0%

Description

LCD size: 62x38mm
Max display: 1999
Low battery indication: yes
Overload protection: yes
Diode test: yes
Continuity buzzer test: yes
Auto power off: yes
Data hold: yes
Backlight: yes
Power supply: one 9V 6F22 battery
Product size: 190×82×38mm
Product weight: about 333g (with holster)

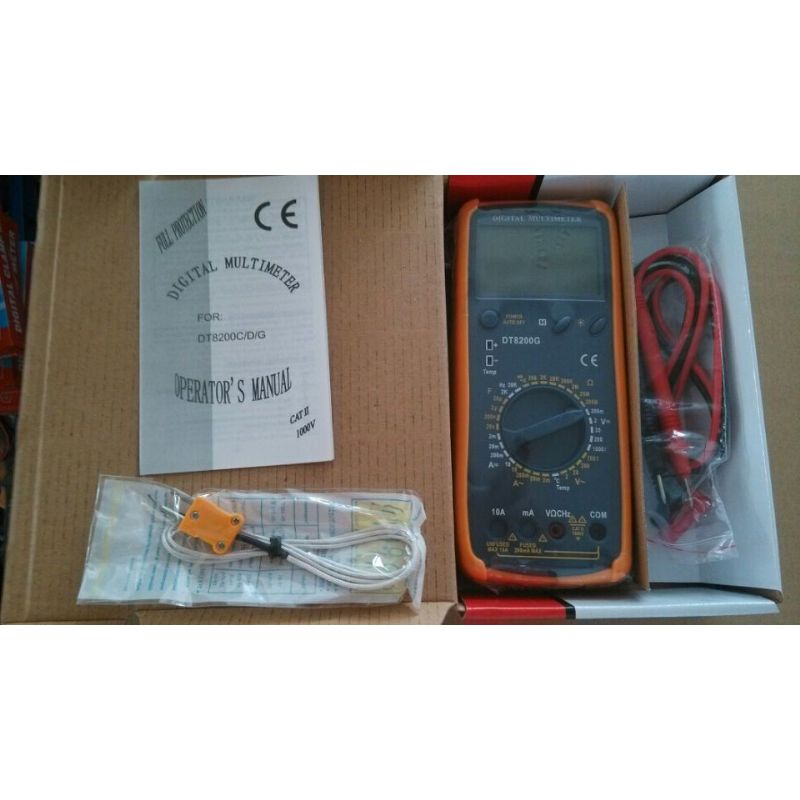

Standard accessories: meter (with battery), holster, test lead, thermocouple, manual
