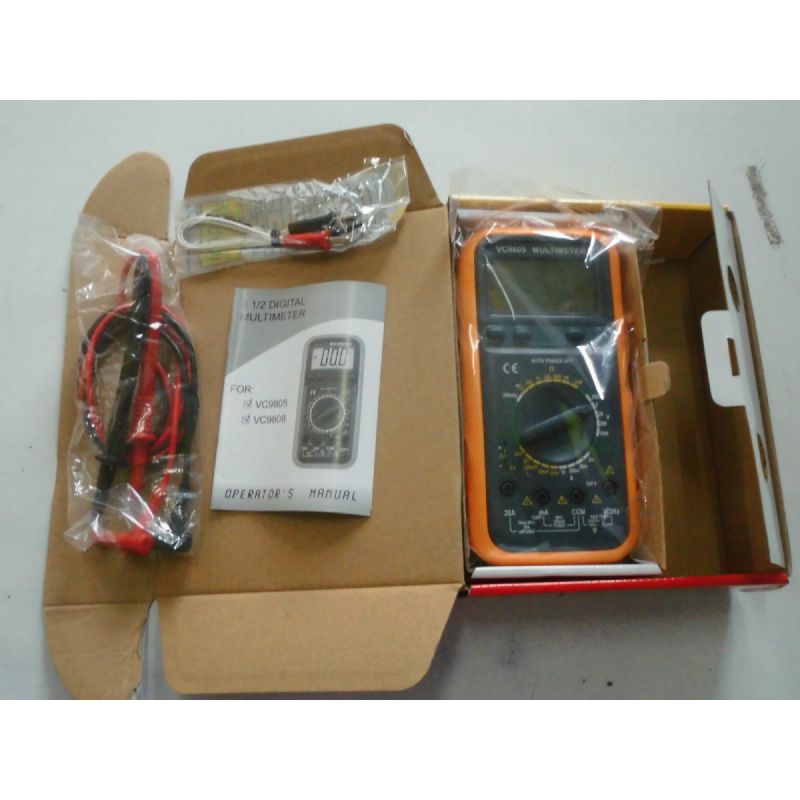

Digital multimeter

  • VC9805
VC9805

VC9805

  • Product description: Digital Multimeter
  • INQUIRY
Characteristic

Large LCD
Easy to read in dark condition with blue backlight
Data hold function for easy reading after measurement
With PVC shockproof holster
With temperature test function

Technology features

DCV: 200m-2-20-200-1000V                            ±0.5%
ACV: 200m-2-20-200-750V                               ±1.0%
DCA: 2m-20m-200m-20A                                  ±1.8%
ACA: 2m-20m-200m-20A                                   ±2.0%
Resistance: 200-2K-20K-200K-2M-20MΩ      ±1.0%
Capacitance: 20n-200n-2u-20u-200uF           ±4.0%
Inductance: 2m-20m-200m-2-20H                   ±2.0%
Frequency: 200KHz                                              ±3.0%
Temperature: -20℃~1000℃                             ±2.0%

Description

LCD size: 62x33mm
Max display: 1999
Low battery indication: yes
Overload protection: yes
Diode test : yes
Transistor test: yes
Continuity buzzer test: yes
Auto power off: yes
Data hold: yes
Backlight: yes
Power supply: one 9V 6F22 battery
Product size: 185x89x37mm
Product weight: about 366g (with holster)
Standard accessories: meter (with battery), holster, test lead, thermocouple, manual
