Digital multimeter

  • VC9802
VC9802

VC9802

  • Product description: Digital Multimeters
  • INQUIRY
Characteristic

Easy to read in dark condition with blue backlight of large screen
Data hold function for easy reading after measurement
With PVC shockproof holster
With 50Hz square wave output as a signal source
With live wire test function

Technology features

DCV: 200m-2-20-200-1000V                                         ±0.5%
ACV: 2-20-200-750V                                                        ±1.0%
DCA: 20m-200m-20A                                                      ±1.8%
ACA: 20m-200m-20A                                                       ±2.0%
Resistance: 200-2K-20K-200K-2M-20M-200MΩ       ±1.0%
Capacitance: 20n-200n-2u-20u-200uF                       ±4.0%

Description

LCD size: 62x33mm
Max display:1999
Low battery indication: yes
Overload protection: yes
Diode test: yes
Transistor test: yes
Continuity buzzer test: yes
Square wave output: yes
Data hold: yes
Auto power off: yes
Backlight: yes
Live wire test: yes
Logic test: yes
Power supply: one 9V 6F22 battery
Product size: 185x89x37mm
Product weight: about 337g (with holster)

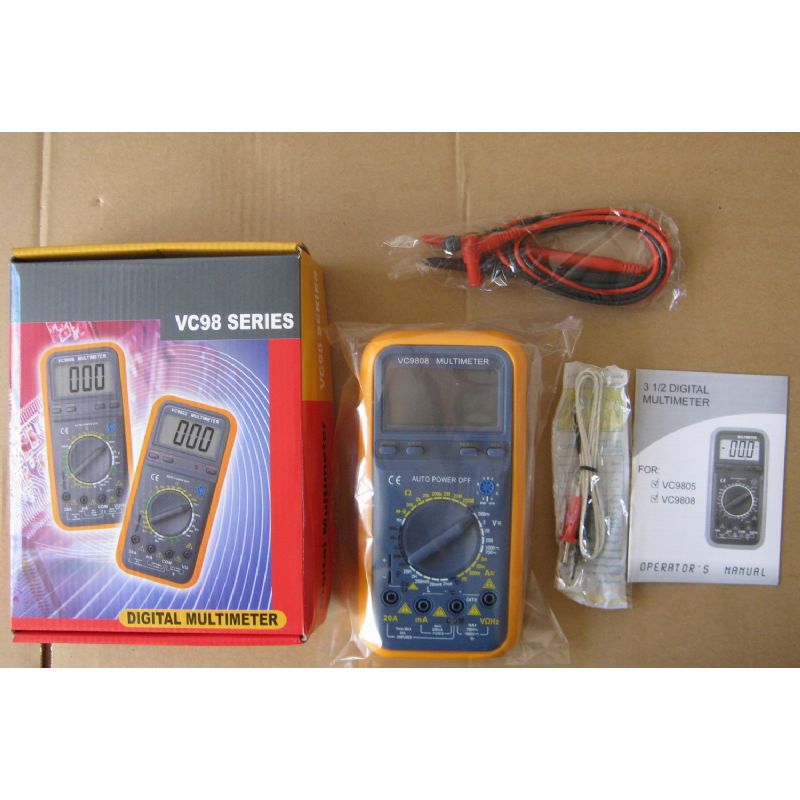

Standard Accessories: meter (with battery), holster, test lead, thermocouple, manual
