  • Product description: Digital Multimeter
  • INQUIRY
Characteristic

Large screen for easy reading
Full protection design against burn
Clear to read in dark working conditions with white backlight
Data hold function for easy reading after measurement
With PVC shockproof holster
With LED diode test and non-contact voltage test function
With temeperature and frequency test function

Technology features

DCV: 200m-2-20-200-1000V                                        ±0.8%
ACV: 2-20-200-750V                                                       ±1.2%
DCA: 20m-200m-10A                                                     ±0.8%
ACA: 20m-200m-10A                                                      ±1.2%
Resistance: 200-2K-20K-200K-2M-20M-200MΩ      ±0.8%
Capacitance: 20n-200n-2u-200uF                               ±4.0%
Frequency: 2K-20KHz                                                     ±1.0%
Temperature: -20ºC~1000ºC                                        ±3.0%

Description

MAX display: 1999
Low battery indication: yes
Overload protection: yes
Diode test: yes
Continuity buzzer test: yes
Transistor test: yes
Auto power off: yes
Data hold: yes
Backlight: yes
Inductance test: yes
LED test: yes
Power supply: one 9V 6F22 battery
Product size: 177x87x44mm
Product weight: about 400g (with holster)

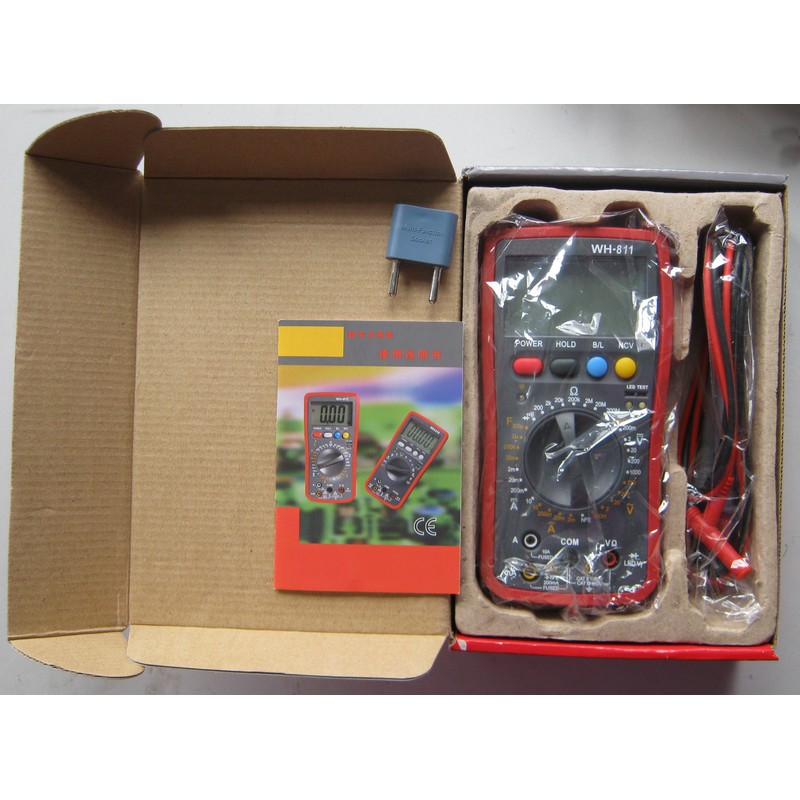

Standard accessories: meter (with battery), holster, multi-function socket, test lead, manual
