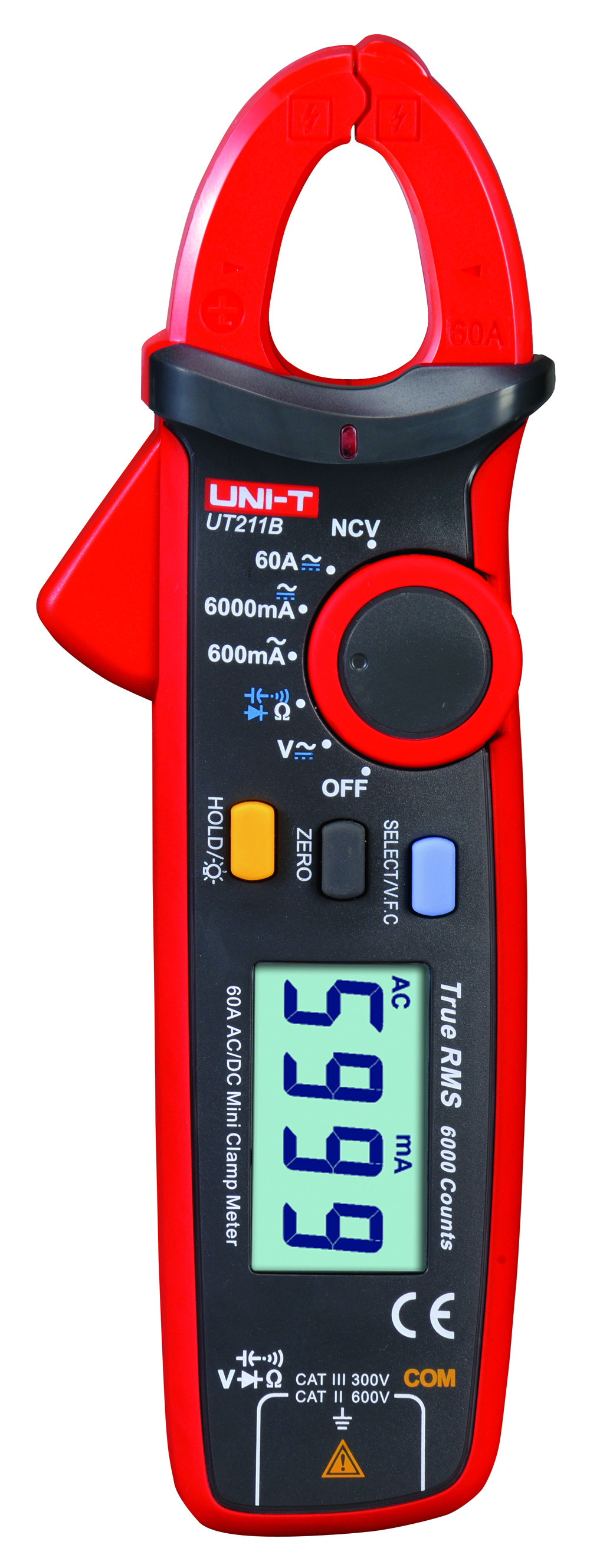

Clamp meter

UT211 A/B

Features

1. Max AC current resolution: 0.1mA

2. AC current accuracy: ±(1.5%+10)

3. Auto range, 6000 display count

4. VFC low pass filter

5. NCV testing

6. Relative mode

7. Data hold, LCD backlight

8. True RMS

9. 17mm jaw

10. Auto power off, low battery indication

Specifications	Range	Best Accuracy
Model		UT211A	UT211B
AC Current (A)	600mA/6000mA/60A	±(1.5%+10)	±(1.5%+10)
DC Current (A)	6000mA/60A		±(2%+3)
AC Voltage (V)	6V/60V/600V	±(0.8%+3)	±(0.8%+3)
DC Voltage (V)	600mV/6V/60V/600V	±(0.7%+3)	±(0.7%+3)
Resistance (Ω)	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ	±(0.8%+2)	±(0.8%+2)
Capacitance (F)	6.2nF~62mF	±(4%+5)	±(4%+5)
Features
Display Count		6000	6000
Auto Range		√	√
True RMS		√	√
Diode	Around 3.0V	√	√
V.F.C.		√	√
NCV		√	√
Data Hold		√	√
Zero Mode			√
Relative Mode		√
LCD Backlight		√	√
Auto Power Off	Around 15 minutes	√	√
Continuity Buzzer		√	√
Low Battery Indication	≤2.5V	√	√
Input Protection		√	√
Input Impedance for DCV	≥10MΩ	√	√
General Characteristics
Power	AAA 1.5V x 2
LCD Size	39.3mm x 26.5mm
Product Color	Red and grey
Product Net Weight	170g
Product Size	175mm x 60mm x 33.5mm
Standard Accessories	Batteries, Test Lead
Standard Individual Packing	Gift Box, Carrying bag, English Manual
Standard Quantity Per Carton	40pcs
Standard Carton Measurement	385mm x 345mm x 305mm (0.041 CBM Per Standard Carton)
Standard Carton Gross Weight	11kg
