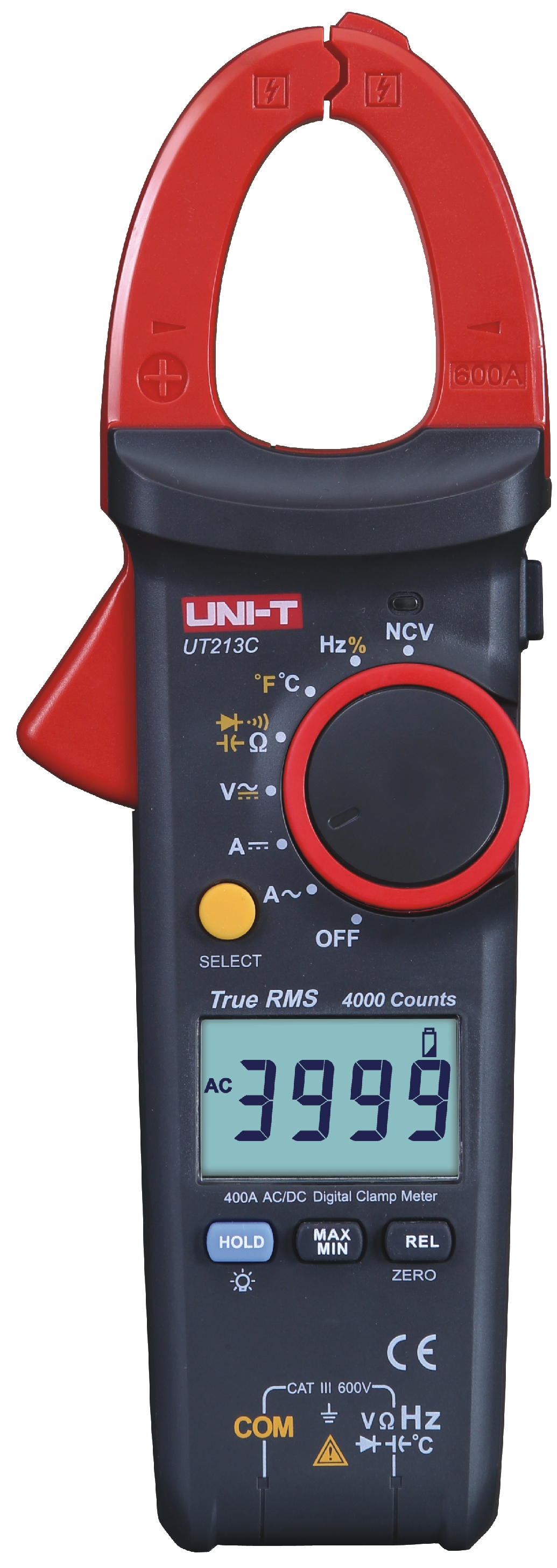

Clamp meter

UT213 A/B/C

Product description: 400A AC/DC Digital Clamp Meters
INQUIRY

Features

1. Auto range

2. 4000 display count, 3/s sampling rate

3. NCV, non-contact voltage

4. Frequency and duty ratio

5. 30mm large jaw

6. Data hold; LCD backlight

7. Auto power off

Specifications	Range	Best Accuracy
Model		UT213A	UT213B	UT213C
AC Current (A)	4A/40A/400A	±(1.8%+9)	±(1.8%+9)
AC Current (A)	40A/400A			±(2.5%+5)
DC Current (A)	40A/400A			±(2.0%+3)
AC Voltage (V)	4V/40V/400V/600V	±(1.2%+5)	±(1.2%+5)	±(1.2%+5)
DC Voltage (V)	400mV/4V/40V/400V/600V	±(0.8%+1)	±(0.8%+1)	±(0.8%+1)
Resistance (Ω)	400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ	±(1.0%+2)	±(1.0%+2)	±(1.0%+2)
Capacitance (F)	50nF/500nF/5μF/50μF/100μF	±(4.0%+5)
Capacitance (F)	40nF/400nF/4μF/40μF/400μF/4mF/40mF		±(4.0%+5)	±(4.0%+5)
Frequency	10Hz~1MHz	±(0.1%+4)	±(0.1%+4)	±(0.1%+4)
Temperature (℃)	-40~1000℃		±(1.0%+3)	±(1.0%+3)
Temperature (℉)	-40~1832℉		±(1.0%+6)	±(1.0%+6)
Features
Display Count		4000	4000	4000
Auto Range		√	√	√
Jaw Capacity		30mm	30mm	30mm
True RMS			√	√
Diode		Around 1.5V	Around 3.0V	Around 3.0V
NCV		√	√	√
Data Hold		√	√	√
Relative Mode		√	√	√
MAX/MIN			√	√
LCD Backlight		√	√	√
Flashlight		√	√	√
Auto Power Off		√	√	√
Continuity Buzzer		√	√	√
Low Battery Indication	≤3.6V	√	√	√
Input Protection		√	√	√
Input Impedance for DCV	≥10MΩ	√	√	√
General Characteristics
Power	AAA 1.5V x 3
LCD Size	38mm x 24mm
Product Color	Red and grey
Product Net Weight	UT213A/B - 280g UT213C - 231.7g
Product Size	220mm x 75mm x 40mm
Standard Accessories	UT213A - Batteries, Test Lead
Standard Accessories	UT213B/C - Batteries, Test Lead, Point Contact Temperature Probe
Standard Individual Packing	Gift Box, Carrying bag, English Manual
Standard Quantity Per Carton	40pcs
Standard Carton Measurement	485mm x 320mm x 385mm (0.060 CBM Per Standard Carton)
Standard Carton Gross Weight	UT213A/B - 23kg UT213C - 20kg
