Oscilloscopes

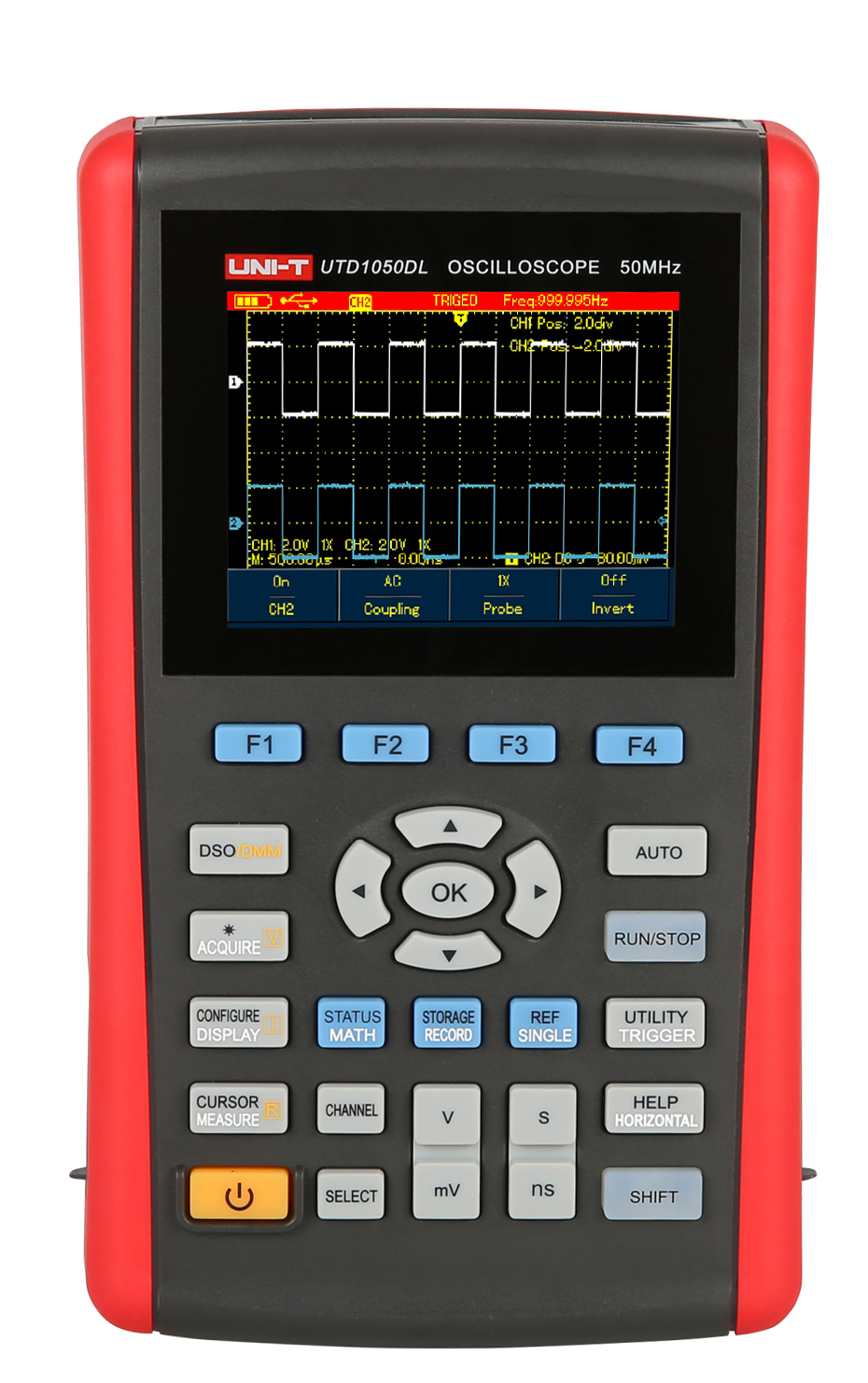

UTD1025DL / UTD1050DL

Features

1. Fully Auto Scale; Vertical Scale and Time-base automatically adjusted with the signal and without any manual interference;

2. Unique and powerfulAuto Setup, quick and accurate to set up for signals with any DC component;

3. Wider voltage measuring range; Coupled with 10×probe with attenuation up to 200V/div;

4. Isolated USB for much safer communication;

5. White and black display for your option, perfect for use outdoors with strong light;

6. Intelligent local or network software update

7. More than 6 hours continuous battery operation

Specifications	UTD1025DL	UTD1050DL
Channels	2
Bandwidth	25MHz	50MHz
Sample Rate	250MS/s
Rise Time	≤14ns	≤7ns
Memory Depth	12kpts
Vertical Sensitivity	5mV/div~20V/div
Timebase Range	10ns/div~50s/div	5ns/div~50s/div
Storage	Bitmap, Setup, Waveform
Trigger Modes	Edge, Pulse, Video, Slope
Interface	Mini USB
Multimeter Specifications	Range
DC Voltage (V)	400.0mV/4.000V/40.00V/400.0V
AC Voltage (V)	400.0mV/4.000V/40.00V/400.0V
DC Current (A) (External Convertor)	400.0μA/4000μA
	40.0mA/400mA
	4A
AC Current (A) (45Hz~400Hz) (External Convertor)	400.0μA/4000μA
	40.0mA/400mA
	4A
Resistance (Ω)	400.0Ω/4.000kΩ/40.00kΩ/400.0kΩ/4.000MΩ
	40.00MΩ
Capacitance (F)	51.20nF/512.0nF/5.120μF/51.20μF/100μF
Display Count	4000
General Characteristics
Power	Lithium Battery: 7.4V 3600mAh; DC Adapter: 100～240V 50/60Hz input, 9V 4A Output
LCD Size	3.5 Inches TFT LCD, QVGA (320×240)
Product Color	Red and Grey
Product Net Weight	0.9kg
Product Size (W×H×D)	199mm × 118mm × 49mm

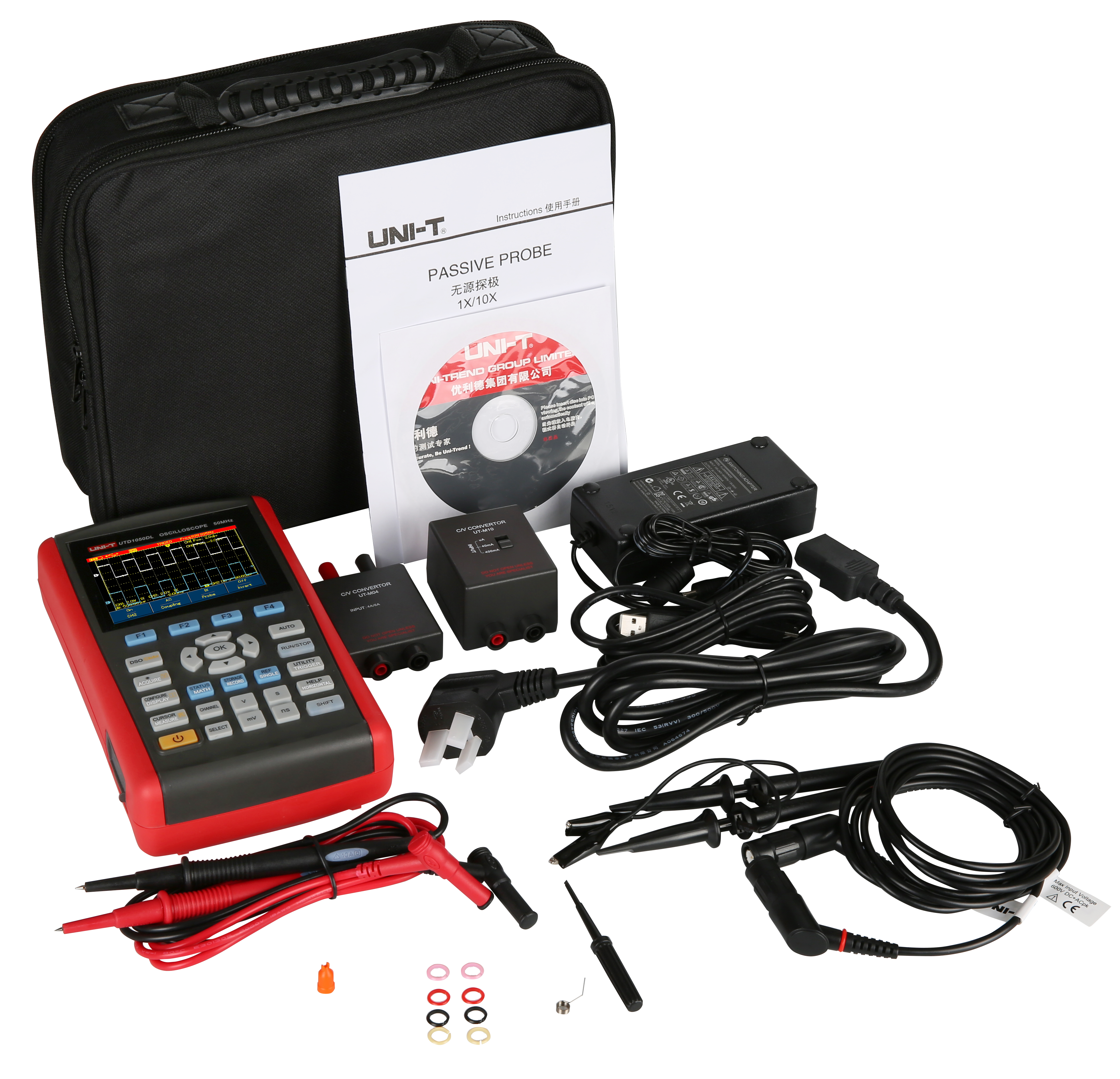

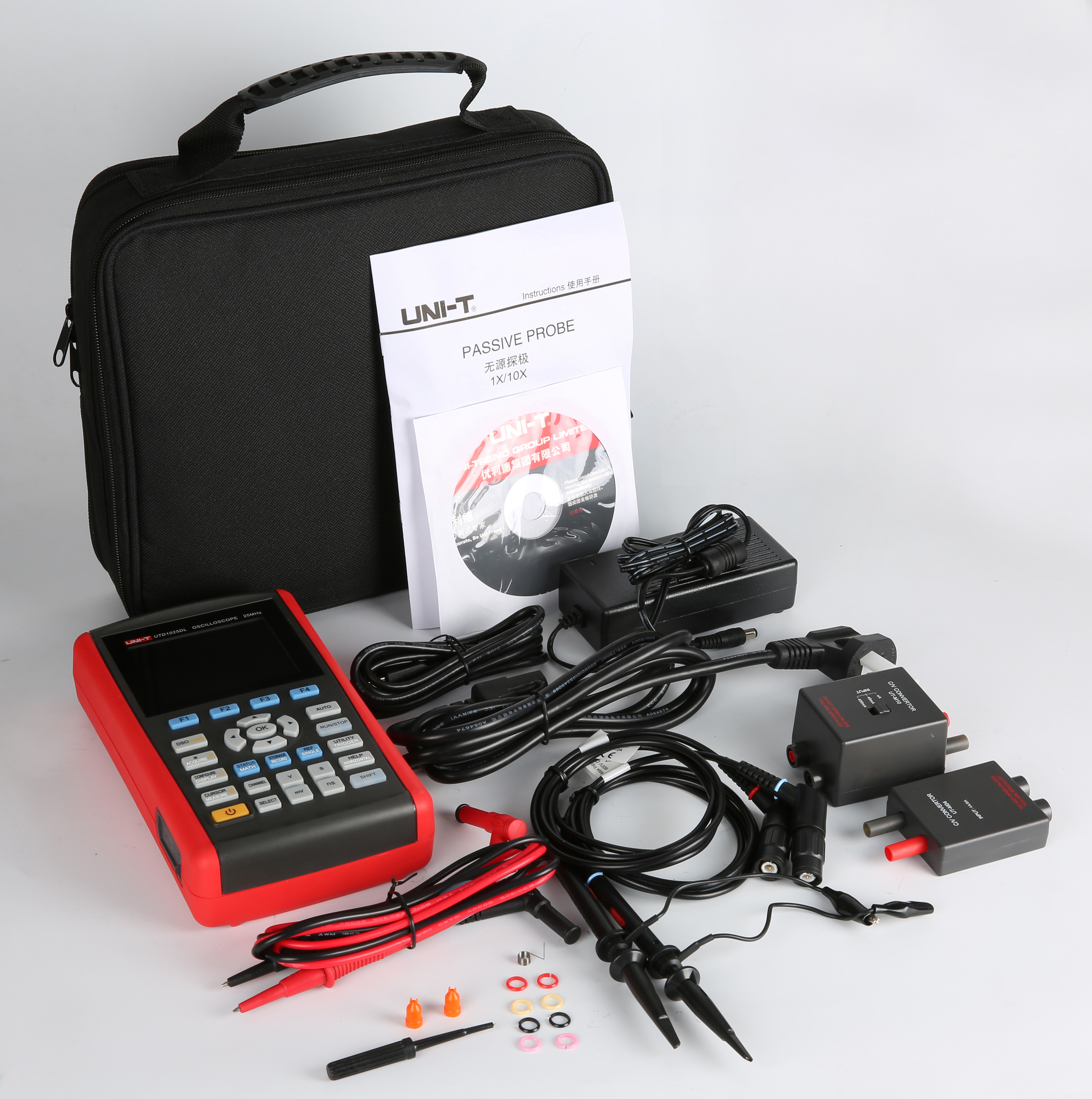

Standard Accessories	DC Adaptor, Test Lead, Probe×2 (1×,10× switchable), (Current-to-Voltage Convertor)×2, Power Cord, USB Cable, PC Software CD

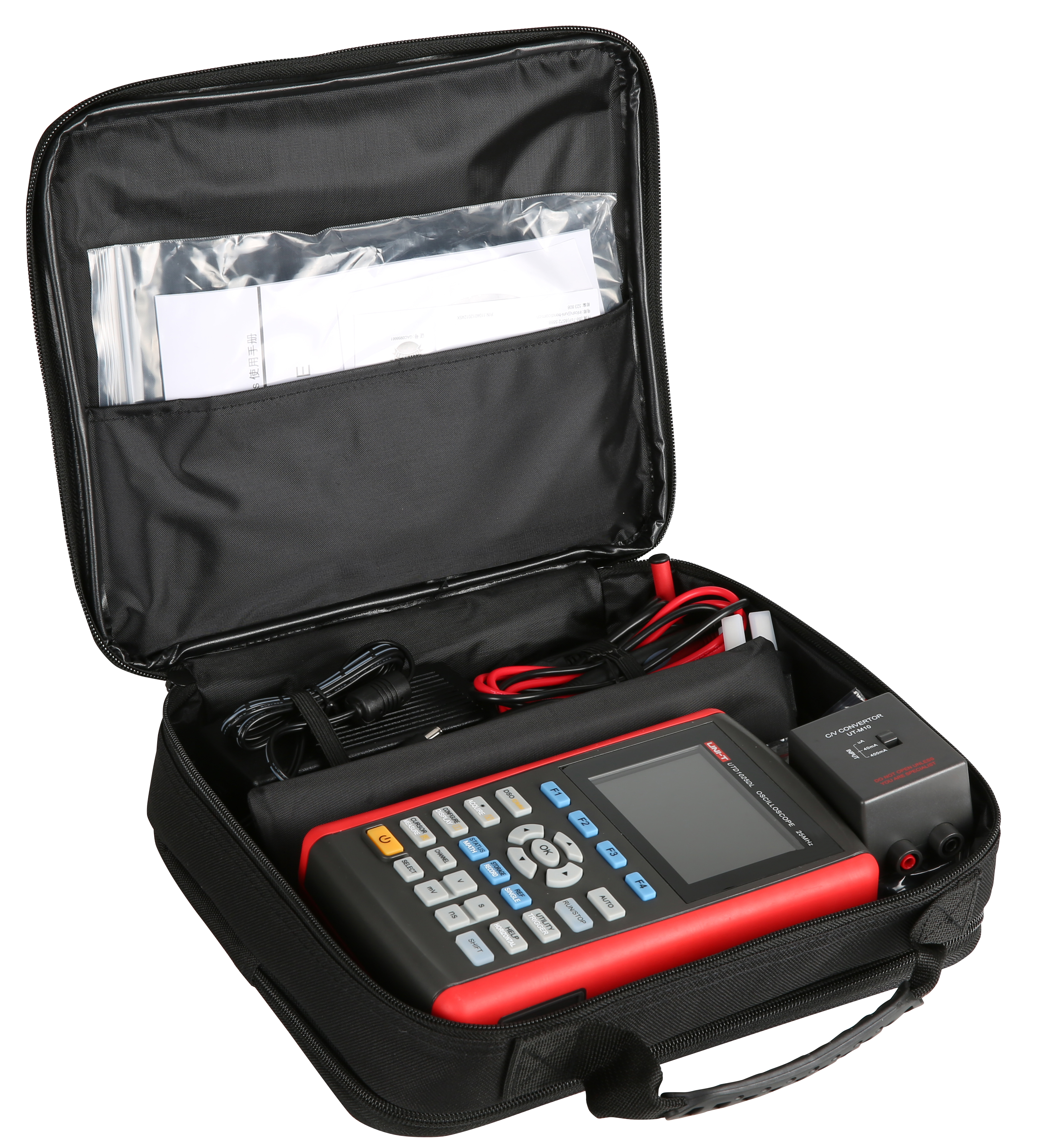

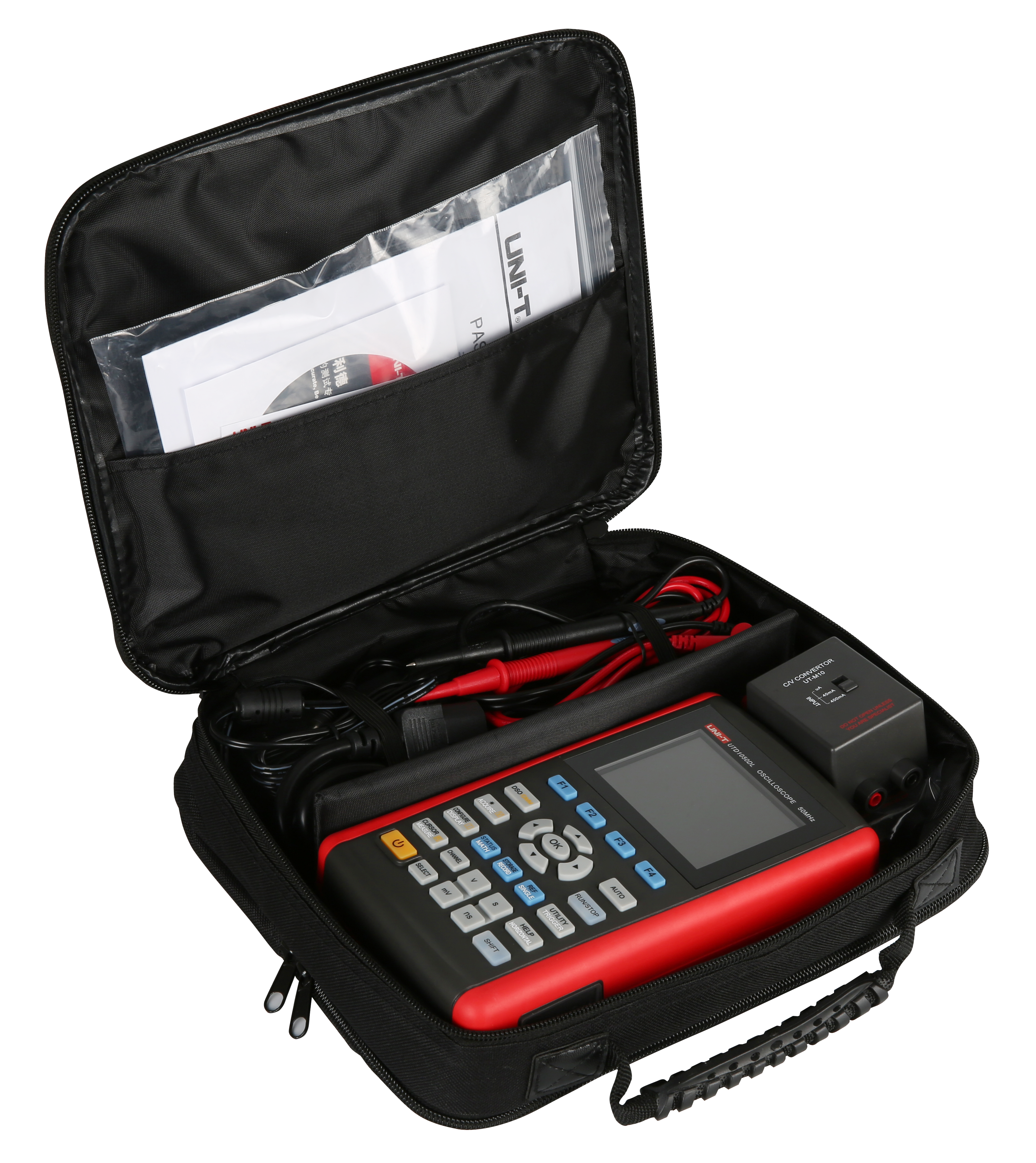

Standard Individual Packing	Gift Box, Carrying Bag, English Manual
Standard Quantity Per Carton	6pcs
Standard Carton Measurement (L×W×H)	515mm x 295mm x 315mm
Standard Carton Gross Weight	10.8kg
