Features and benefits:
1. Sampling rate up to 1GS/s
2. Channels 2
3. Bandwidth 100MHz
4. Memory depth 28Mpts (standard)
5. Waveform capture rate up to 50,000wfms/s
6. With 256 level intensity grading display
7. Up to 65,000 frames for waveform record/replay
8. Support serial bus trigger and decoding (optional feature)
9. 8 inches, TFT LCD, WVGA (800*480)
10. Interface: USB Host, USB Device, LAN, VGA, AUX OUT, 10MHz input/output
Specifications

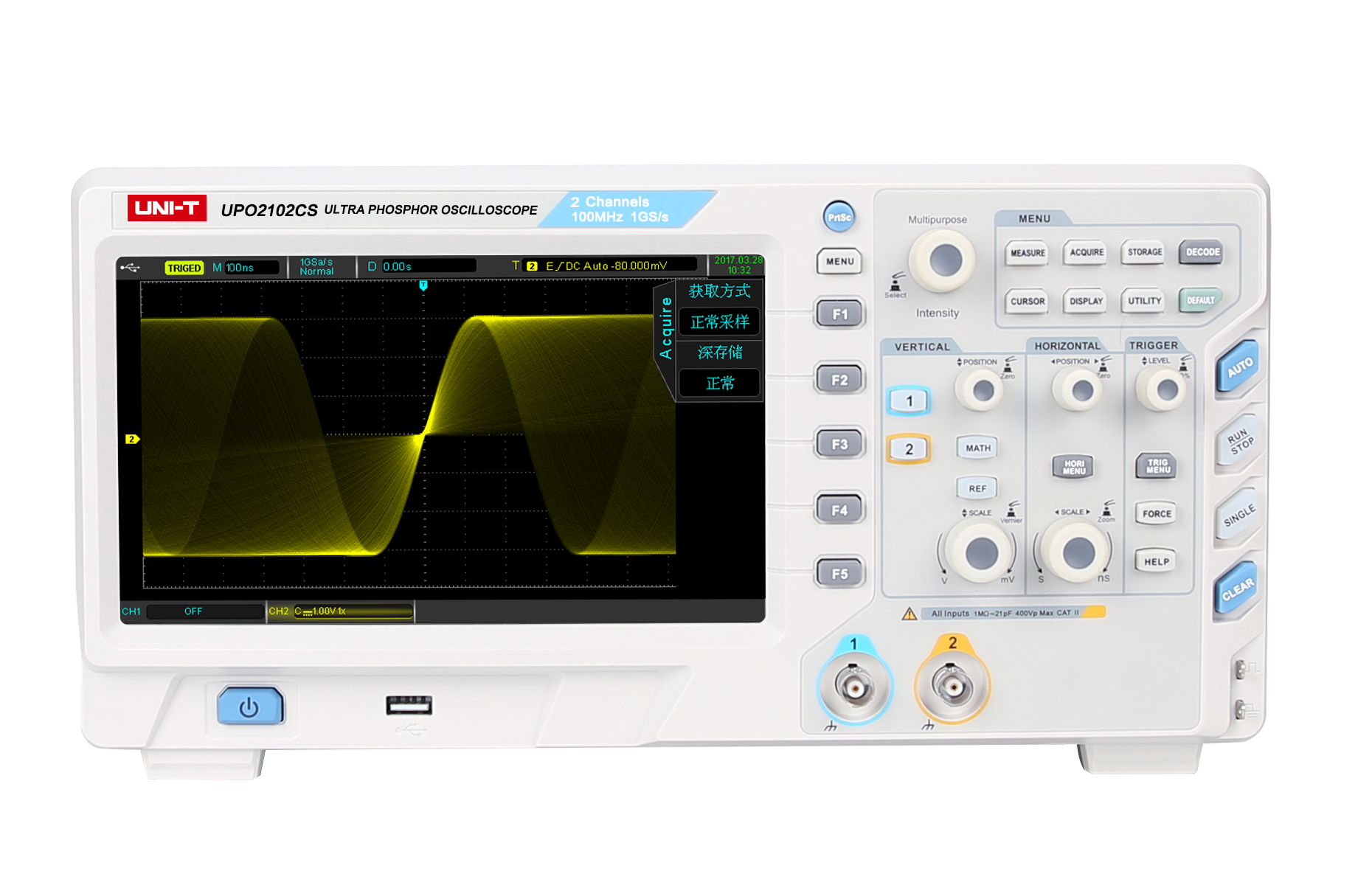

UPO2072CS
UPO2074CS
UPO2102CS

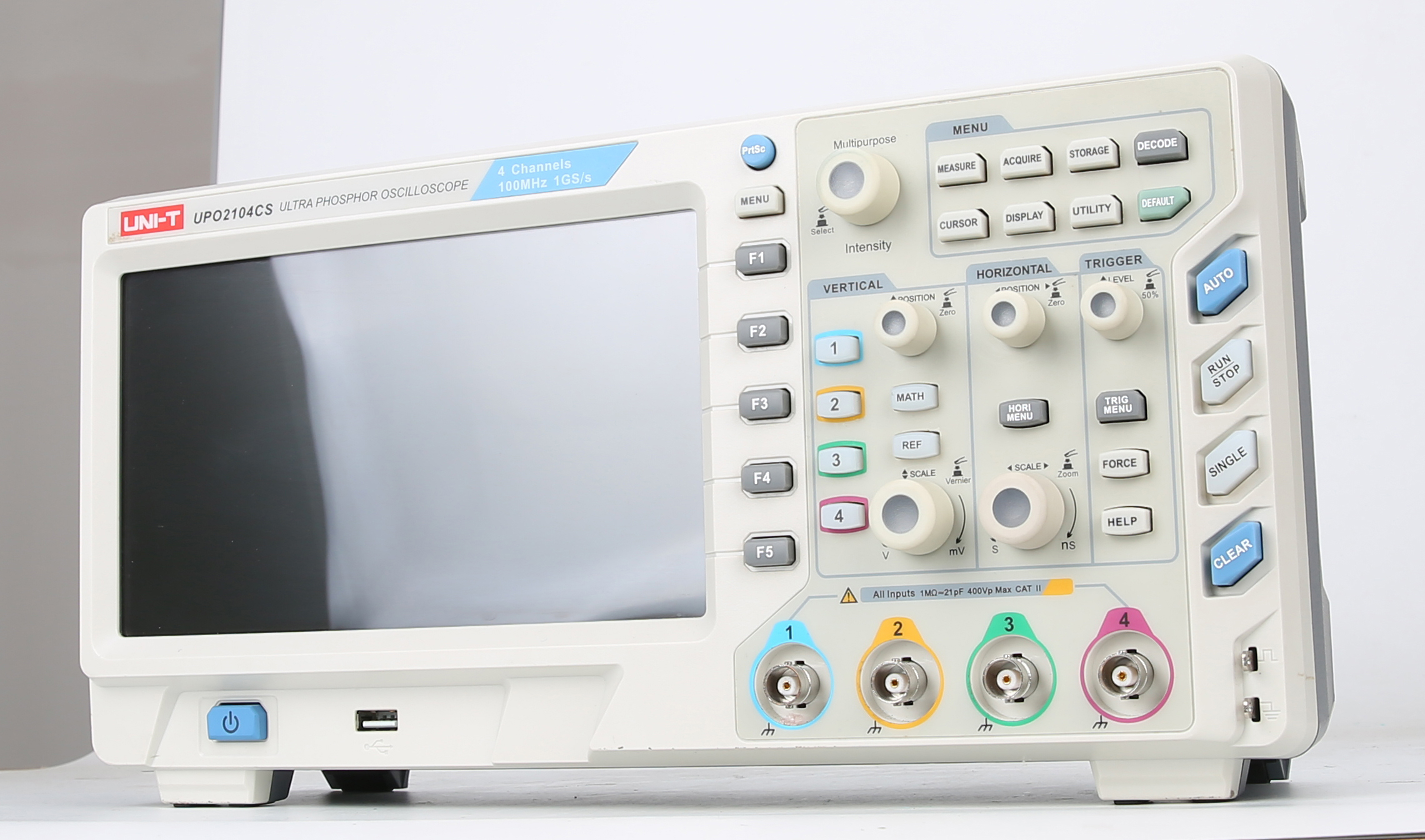

UPO2104CS
Bandwidth
70MHz
100MHz
Channels
2
4
2
4
Sampling rate
1GS/s
Memory depth
28Mpts (each channel)
Waveform capture rate
50,000wfms/s
Time base range (s/div)
5ns/div ~ 50s/div
Input impedance
(1MΩ±2%) // (20pF±3pF)
Vertical sensitivity
1mV/div ~ 20V/div (1MΩ)
Waveform record
Max 65,000 frames
Trigger modes
Edge, pulse, slope, video
Waveform operations
A+B, A-B, A×B, A/B, FFT, logical operations, editable advanced operations
Auto measurements
Max, Min, Top, Bottom, Middle, Peak-Peak, Amplitude, Mean, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area, Overshoot, Preshoot, Frequency, Cycle, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Rise Delay, Fall Delay, Phase, FRR, FRF, FFR, FFF, LRF, LRR, LFR, LFF, 34 measurement parameters in total
Measurement counts
Display 5 measurements at the same time
Measurement statistic
Mean, max, min, standard deviation and measurement counts
Frequency counter
6-bit hardware counter
Standard interfaces
USB Host, USB Device, LAN, AUX OUT
General characteristics
Power
100V ~ 240V ACrms, 50Hz/60Hz
Display
8-inch TFT LCD, WVGA (800×480)
Product color
White and grey
Product net weight
3.5kg
Product size (W×H×D)
336mm×164mm×108mm
