Oscilloscopes

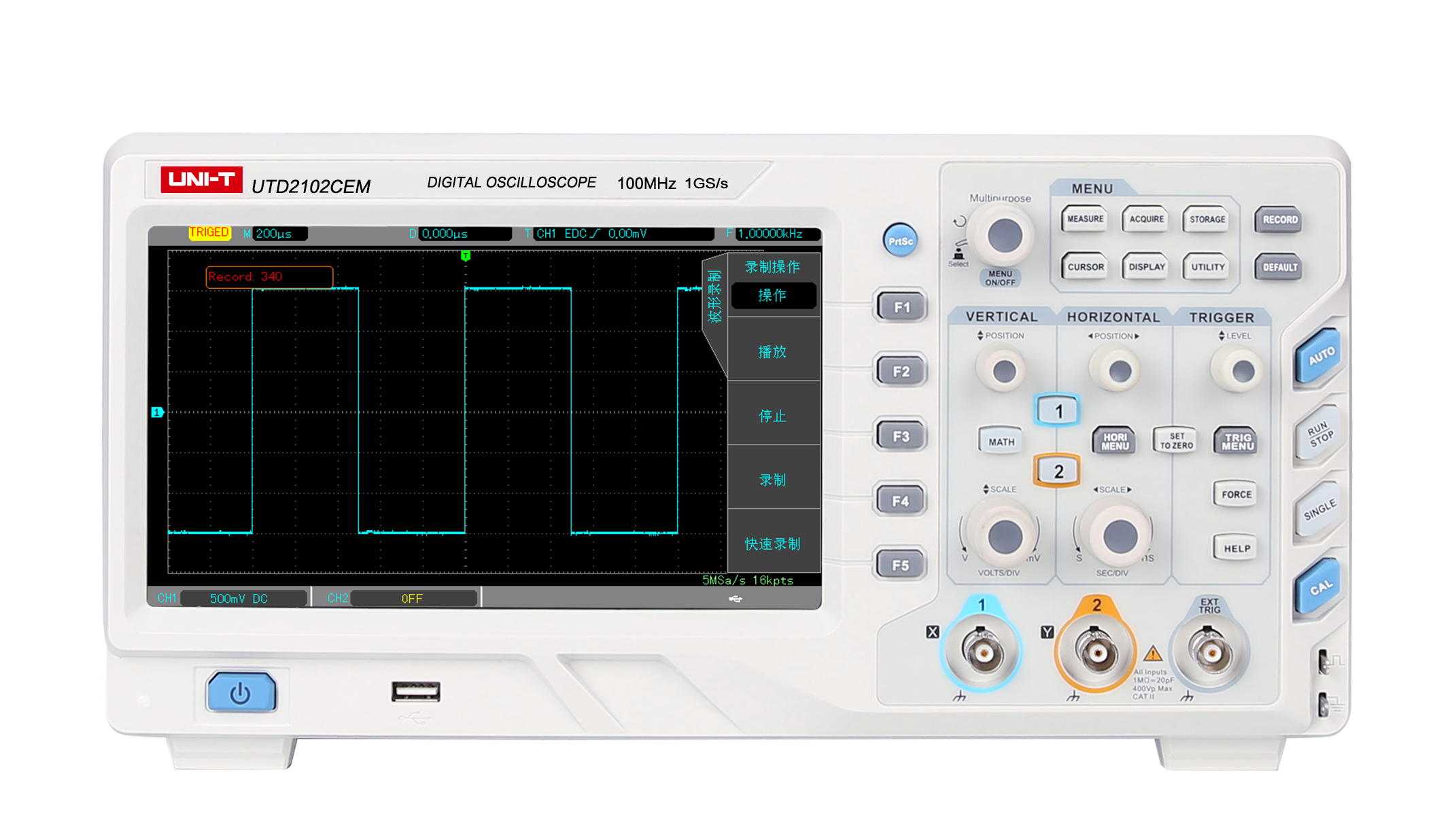

UTD2072CEM / UTD2102CEM

Product description: Digital Storage Oscilloscope
INQUIRY

Features & Benefits

1. 100MHz bandwidth, 1GSa/s real-time sampling rate

2. 2 channels

3. 28Mpts memory depth

4. 20,000wfms/s waveform acquisition rate

5. 2ns/div~50s/div time-base

6. Trigger modes: Edge, Pulse Width, Runt, Over-amplitude, Slope and Video

7. Calibration signal output: 10Hz, 100Hz, 1kHz (default), 10kHz and 100kHz

8. Input calibration signal only by pressing a button

9. 10Mpts waveform recording

10. 8-inch TFT LCD, WVGA (800×480)

11. USB OTG and Pass/Fail interface

Specifications		UTD2072CEM	UTD2102CEM
Channels		2	2
Bandwidth		70MHz	100MHz
Sampling rate		1GS/s (single channel), 500MS/s (dual channel)	1GS/s (single channel), 500MS/s (dual channel)
Rise time		≤5ns	≤3.5ns
Memory depth		32Mpts	32Mpts
Waveform acquisition rate		≥20,000wfms/s	≥20,000wfms/s
Vertical sensitivity (V/div)		1mV/div~20V/div (1MΩ)	1mV/div~20V/div (1MΩ)
Time-based range (s/div)		2ns/div~50s/div	2ns/div~50s/div
Storage		Setup, Wave, Bitmap	Setup, Wave, Bitmap
Trigger
Trigger frequency		6 bits	6 bits
Trigger mode		Edge, Pulse Width, Runt, Over amplitude, Slope, Video	Edge, Pulse Width, Runt, Over amplitude, Slope, Video
Trigger Level range	Internal	±15div from the center of the screen	±15div from the center of the screen
	EXT	±6V (adjustable)	±6V (adjustable)
	EXT/5	--	--
Suppression range		100ns~10s	100ns~10s
Edge Trigger
Edge mode		Rise, Fall, Rise and Fall	Rise, Fall, Rise and Fall
Pluse Width Trigger
Trigger mode		+Width (greater than, less than or in designated section); -Width (greater than, less than or in designated section)	+Width (greater than, less than or in designated section); -Width (greater than, less than or in designated section)
Pluse width range		20ns~10s	20ns~10s
Video Trigger
Signal mode and Line/Field		Supports standard NTSC and PAL signal mode, line range is 1~525 (NTSC) and 1~625 (PAL)	Supports standard NTSC and PAL signal mode, line range is 1~525 (NTSC) and 1~625 (PAL)
Slope Trigger
Trigger mode		+Slope (greater than, less than or in designated section); -Slope (greater than, less than or in designated section)	+Slope (greater than, less than or in designated section); -Slope (greater than, less than or in designated section)
Time setting		20ns~10s	20ns~10s
Measurements
Cursor	Manual mode	Voltage Difference between cursors (ΔV), Time Difference between cursors (ΔT), reciprocal of ΔT(Hz) (1/ΔT)	Voltage Difference between cursors (ΔV), Time Difference between cursors (ΔT), reciprocal of ΔT(Hz) (1/ΔT)
	Tracking mode	Voltage and time value of wave point	Voltage and time value of wave point
	Auto measurement	Allowed to display cursor in auto measurements	Allowed to display cursor in auto measurements
Auto measurement		Max, Min, Peak-Peak, Amplitude, Top, Bottom, Cycle Average, Average, Crms, RMS, Area, Cycle area, Overshoot, Preshoot, RPRE, FPRE, Rise Time, Fall Time, Frequency, Period, Pulse Width, +Width, -Width, Burst Width, +Duty, -Duty, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, 34 measuring parameters in total	Max, Min, Peak-Peak, Amplitude, Top, Bottom, Cycle Average, Average, Crms, RMS, Area, Cycle area, Overshoot, Preshoot, RPRE, FPRE, Rise Time, Fall Time, Frequency, Period, Pulse Width, +Width, -Width, Burst Width, +Duty, -Duty, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, 34 measuring parameters in total
Storage waveform		20 internal settings/waforms, 200 settings/waveforms in U disc, deep storage CSV in U disc	20 internal settings/waforms, 200 settings/waveforms in U disc, deep storage CSV in U disc
Others
Interface		USB-OTG, Pass/Fail	USB-OTG, Pass/Fail
General Characteristics
Power		100~240V ACrms, 50Hz/60Hz	100~240V ACrms, 50Hz/60Hz
LCD size		8 inch TFT LCD; Display resolution: 800×RGB×480	8 inch TFT LCD; Display resolution: 800×RGB×480
Product color		Ivory and grey	Ivory and grey
Product net weight		3.35kg	3.35kg
Product size (W×H×D)		336mm×164mm×108mm	336mm×164mm×108mm
Standard accessories		Power cord, USB cable, 2 sets of passive probes (100MHz), PC software CD (manual and application software inside)	Power cord, USB cable, 2 sets of passive probes (100MHz), PC software CD (manual and application software inside)
Optional accessories		--	--
