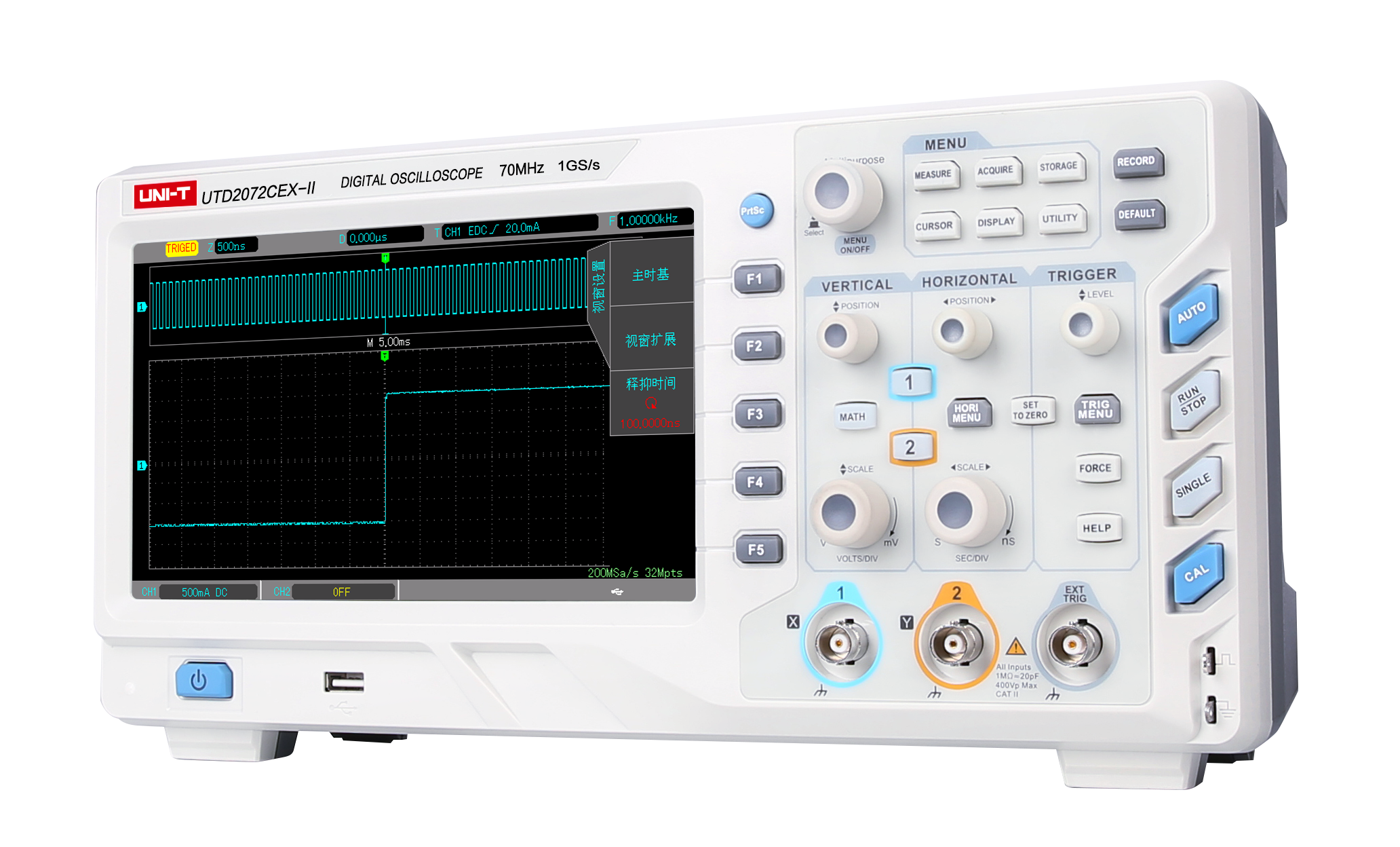

UTD2102CEX-II / UTD2072CEX-II

UTD2102CEX-II / UTD2072CEX-II

  • Product description: Digital Storage Oscilloscope
  • INQUIRY

Features & Benefits

1. 100MHz bandwidth, 1GSa/s real-time sampling rate

2. 2 channels

3. 25kpts memory depth

4. 20,000wfms/s waveform acquisition rate

5. 2ns/div~50s/div time-base

6. Trigger modes: Edge, Pulse Width, Runt, Over-amplitude, Slope and Video

7. Calibration signal output: 10Hz, 100Hz, 1kHz (default), 10kHz and 100kHz

8. Input calibration signal only by pressing a button

9. 10Mpts waveform recording

10. 8-inch TFT LCD, WVGA (800×480)

11. USB OTG and Pass/Fail interfaces

Specifications UTD2072CEX-II UTD2102CEX-II
Channels 2 2
Bandwidth 70MHz 100MHz
Sample rate 1GS/s (single channel), 500MS/s (dual channel)
Rise time ≤5ns ≤3.5ns
Memory depth 25kpts
Waveform acquisition rate   ≥20,000wfms/s
Vertical sensitivity (V/div) 1mV/div~20V/div (1MΩ)
Time-base range (s/div) 2ns/div~50s/div
Storage Setup, Waveform, Bitmap
Trigger mode Edge, Pulse Width, Runt, Over amplitude, Video, Slope
Trigger frequency 6 bits
Trigger type Auto, normal, single
Pluse Width range 100ns~10s
Signal mode and Line/Field Supports standard NTSC and PAL signal mode, line range is 1~525 (NTSC) and 1~625 (PAL)
Auto measurement Max, Min, Peak-Peak, Amplitude, Top, Bottom, Cycle Average, Average, Crms, RMS, Area, Cycle area, Overshoot, Preshoot, RPRE, FPRE, Rise Time, Fall Time, Frequency, Period, Pulse Width, +Width, -Width, Burst Width, +Duty, -Duty, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, 34 measuring parameters in total
Storage waveform 20 internal settings/waveform, 200 settings/waveform in U disc, deep storage CSV in U disc
Interface USB OTG, Pass/Fail
General Characteristics
Power 100~240VACrms, 50/60Hz
Display 8-inch TFT LCD, 800×RGB×480
Product color White and gray
Product net weight 3.35kg
Product size (W×H×D) 336mm×164mm×108mm
Standard accessory Power cord, USB cable, 2 sets of passive probes (100MHz), PC software CD (with manual and application software inside)
