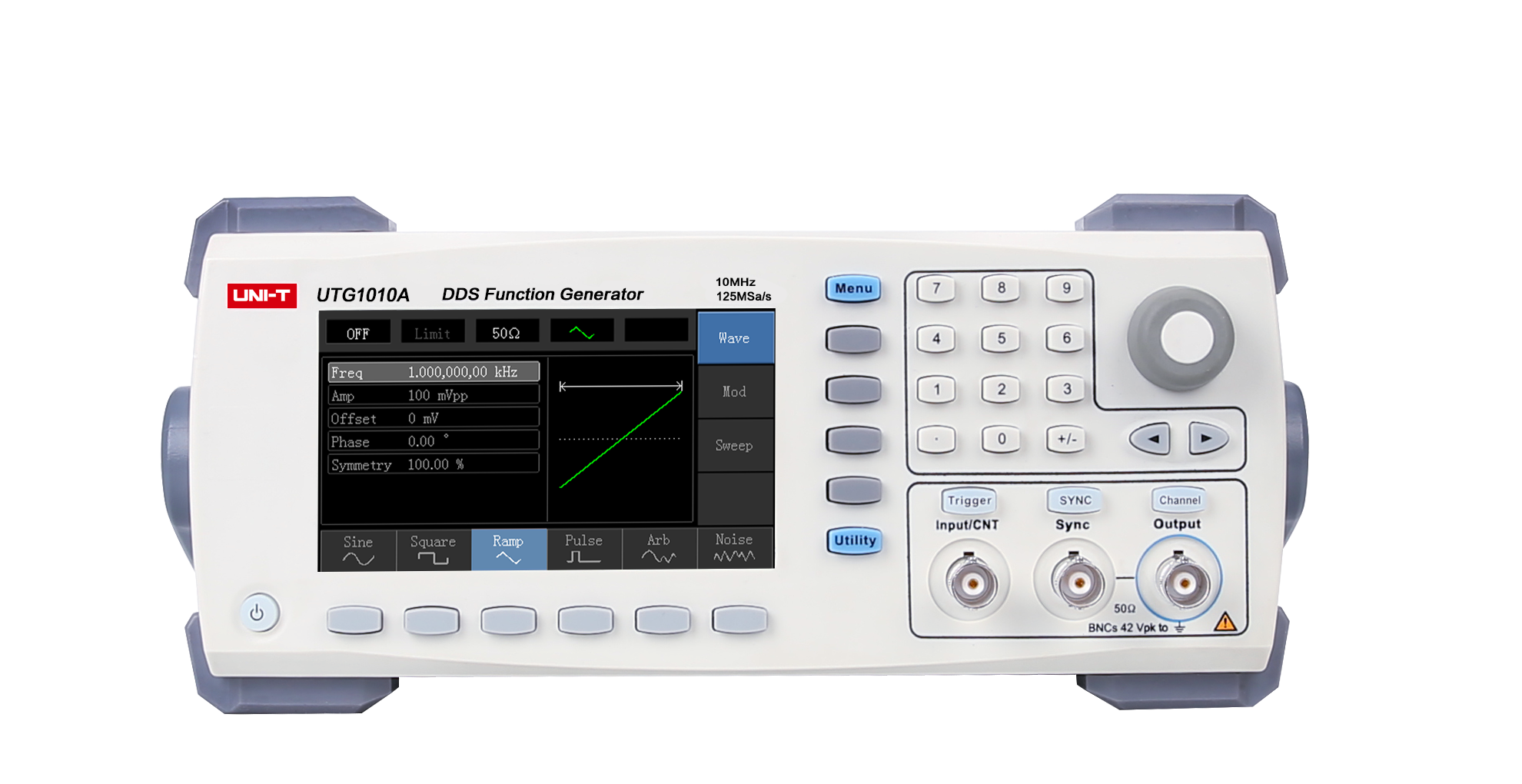

UTG1010A / UTG1005A

Product description: Function/Arbitrary Waveform Generators
INQUIRY

Main Features

1. 5MHz/10MHz sine wave output, full band with 1Hz resolution

2. 5MHz pulse waveform, rise and fall time adjustable

3. 125MSa/s sampling rate and 14 bit vertical resolution

4. Standard performance of double channel

5. 16 nonvolatile waveform memory

6. Modulations: AM, FM, PM, ASK, FSK, PWM

7. 4.3 inch high resolution TFT color LCD display

8. Standard interface: USB Device

Specifications
Model	UTG1005A	UTG1010A
Channel	1	1
Channel bandwidth	5MHz	10MHz
Sampling rate	125MS/s	125MS/s
Vertical resolution	14 bits	14 bits
Waveforms	Sine, square, triangle, pulse, ramp, noise, arbitrary (16 sets)
Sweeps	Linear, logarithmic and external
Modulations	AM, FM, PM, ASK, FSK, PSK, PWM
Output characteristics
Output impedance	50Ω/ high resistance
Amplitude range	1mVpp~10Vpp (50Ω)	1mVpp~10Vpp (50Ω)
	2mVpp~20Vpp (high resistance)	2mVpp~20Vpp (high resistance)
Accuracy (1kHz sine wave)	1% + 2mV of amplitude setting value
DC offset range	-5Vpp~5Vpp (50Ω) (AC+DC)
	-10Vpp~10Vpp (high resistance) (AC+DC)
Offset accuracy	+1% of offset setting value+ 0.5% + 2mV of amplitude setting value
Amplitude resolution	1mV
Amplitude flatness	＜100kHz 0.1dB
	100kHz~10MHz 0.2dB
Sine waveform
Frequency range	1μHz~5MHz	1μHz~10MHz
Resolution	1μHz
Harmonic distortion (typical value)	Testing condition: 0dBm output power
	DC~20kHz -55dBc
	20kHz~1MHz -50dBc
	1MHz~10MHz -40dBc
Total harmonic distortion (typical value)	DC~20kHz, 1Vpp＜0.2%


Square / pulse waveform
Frequency range	1μHz~5MHz	1μHz~5MHz
Resolution	1μHz
Rise / fall time	＜24ns (typical value 1kHz, 1Vpp)
Overshoot (typical value)	＜2%
Duty cycle	0.01%~99.99%
Minimum pulse width	≥80ns
Jitter (typical value )	1ns+period * 100ppm
Triangle / ramp waveform
Frequency range	1μHz~400kHz
Resolution	1μHz
Nonlinearity	1%±2mV (typical value: 1kHz,1Vpp; symmetry: 50%)
Ramp waveform symmetry	0.0%~100.0%
Minimum edge time	≥400ns
Arbitrary waveform
Arbitrary waveforms	Frequency range: 1μHz~1MHz	Frequency range: 1μHz~2MHz
	Internal storage (fixed):16 groups
	AbsSine, AmpALT, AttALT, Gaussian Monopulse, GaussPulse, SineVer, StairUd, Trapezia, LogNormal, Sinc, ECG, EEG, exponential rise, exponential decline, Lorentz, D-Lorentz
AM modulation
Carriers	Sine, square, ramp, arbitrary
Source	Internal / external (BNC on the front panel)
Modulation waveforms	Sine, square, rise ramp, fall ramp, noise, arbitrary
Modulation frequency	2MHz~50kHz
Modulation depth	0%~120%
FM modulation
Carriers	Sine, square, ramp, arbitrary
Source	Internal / external (BNC on the front panel)
Modulation waveforms	Sine, square, rise ramp, fall ramp, noise, arbitrary
Modulation frequency	2mHz~50kHz
Frequency offset	2.5MHz (Max)	5MHz (Max)
PM modulation
Carriers	Sine, square, ramp, arbitrary
Source	Internal / external (BNC on the front panel)
Modulation waveforms	Sine, square, rise ramp, fall ramp, noise, arbitrary
Modulation frequency	2MHz~50kHz
Phase offset	0°~360°
ASK modulation
Carriers	Sine, square, ramp, arbitrary
Source	Internal / external (BNC on the front panel)
Modulation waveform	50% duty cycle of square wave
Modulation frequency	2MHz~100kHz
FSK modulation
Carriers	Sine, square, ramp, arbitrary
Source	Internal / external (front panel BNC)
Modulation waveform	50% duty cycle of square wave
Modulation frequency	2MHz~100kHz
PSK modulation
Carriers	Sine, square, ramp, arbitrary
Source	Internal / external (BNC on the front panel)
Modulation waveform	50% duty cycle of square wave
Modulation frequency	2MHz~100kHz
PWM modulation
Carrier	Pulse
Source	Internal / external (BNC on the front panel)
Modulation waveforms	Sine, square, rise ramp, fall ramp, noise, arbitrary
Modulation frequency	2MHz~20kHz
Width offset	0%~49.99% of pulse width
Sweep
Carrier wave	Sine, square, ramp
Types	Linear and logarithmic
Sweep time	1ms~500s±0.1%
Trigger source	Manual, internal and external
Frequency counter
Input level	Compatible with TTL
Input frequency	1Hz~100MHz
Frequency resolution	6 bit / second
Coupling	DC

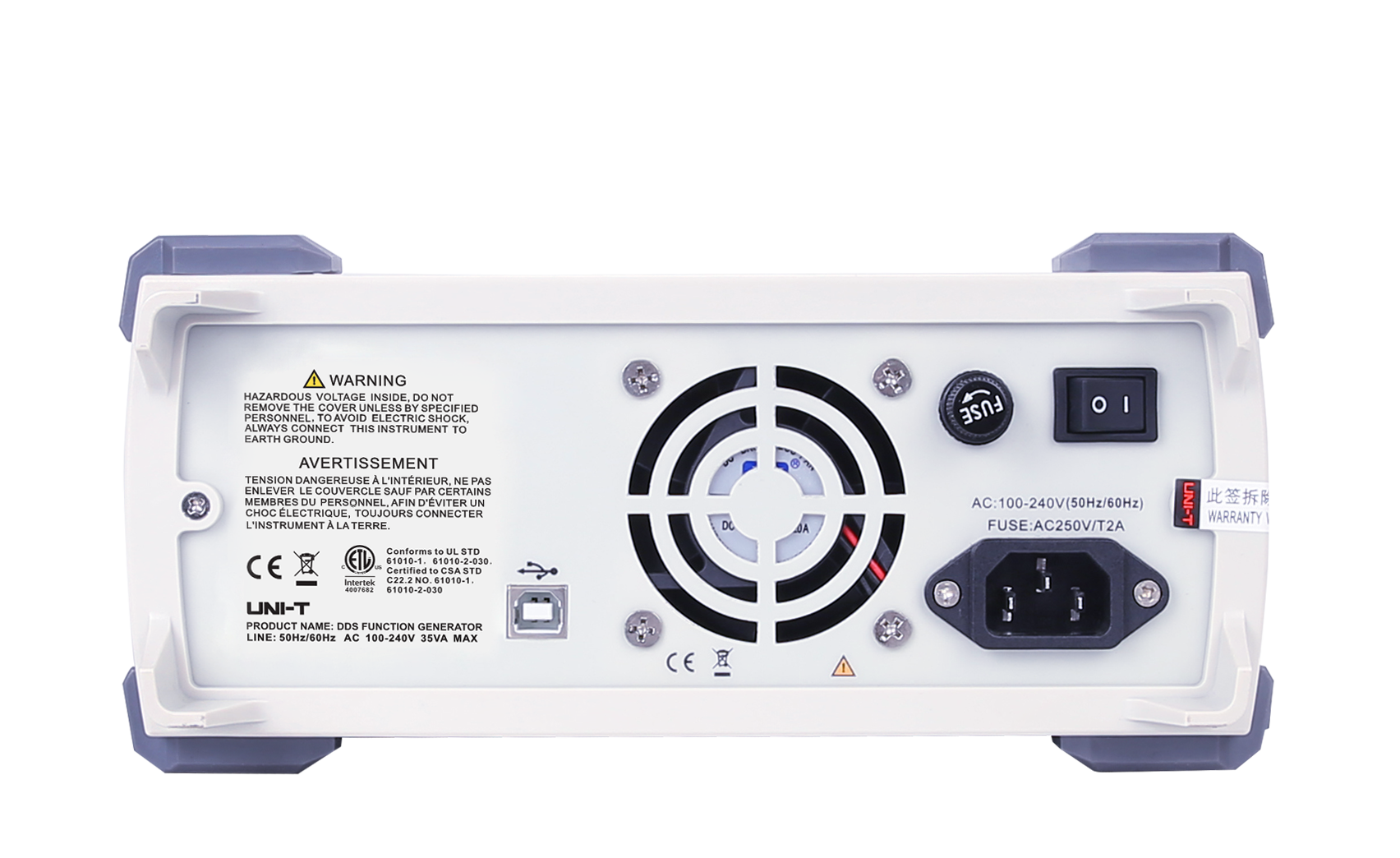

Connector on back panel
Interface
Standard	USB Device
Display
Screen	4.3 inches TFT, LCD
Resolution	WVGA (480×272)
Languages	Chinese (by default) and English
Power supply
Power	100V~240VACrms, 50Hz/60Hz
Consumption	Less than 25W
Fuse	2A, T class, 250V
Environment
Temperature range	Operating: 10℃~+40℃
	Others: -20℃~+60℃
Cooling	By fan
Humidity range	Less than 35℃: ≤90%RH
	35℃~40℃: ≤60%RH
Altitude	Operating: less than 2,000m
	Others: less than 15,000m
General characteristics
Product size (W×H×D)	265mm×110mm×320mm
Product net weight	3.1kg
Standard accessories	Power cord, USB cable, BNC cable (1m), PC software CD
Standard individual packing	English manual
Standard quantity per carton	2pcs
Standard carton size	380mm×330mm×320mm
Standard carton gross weight	8.6kg
