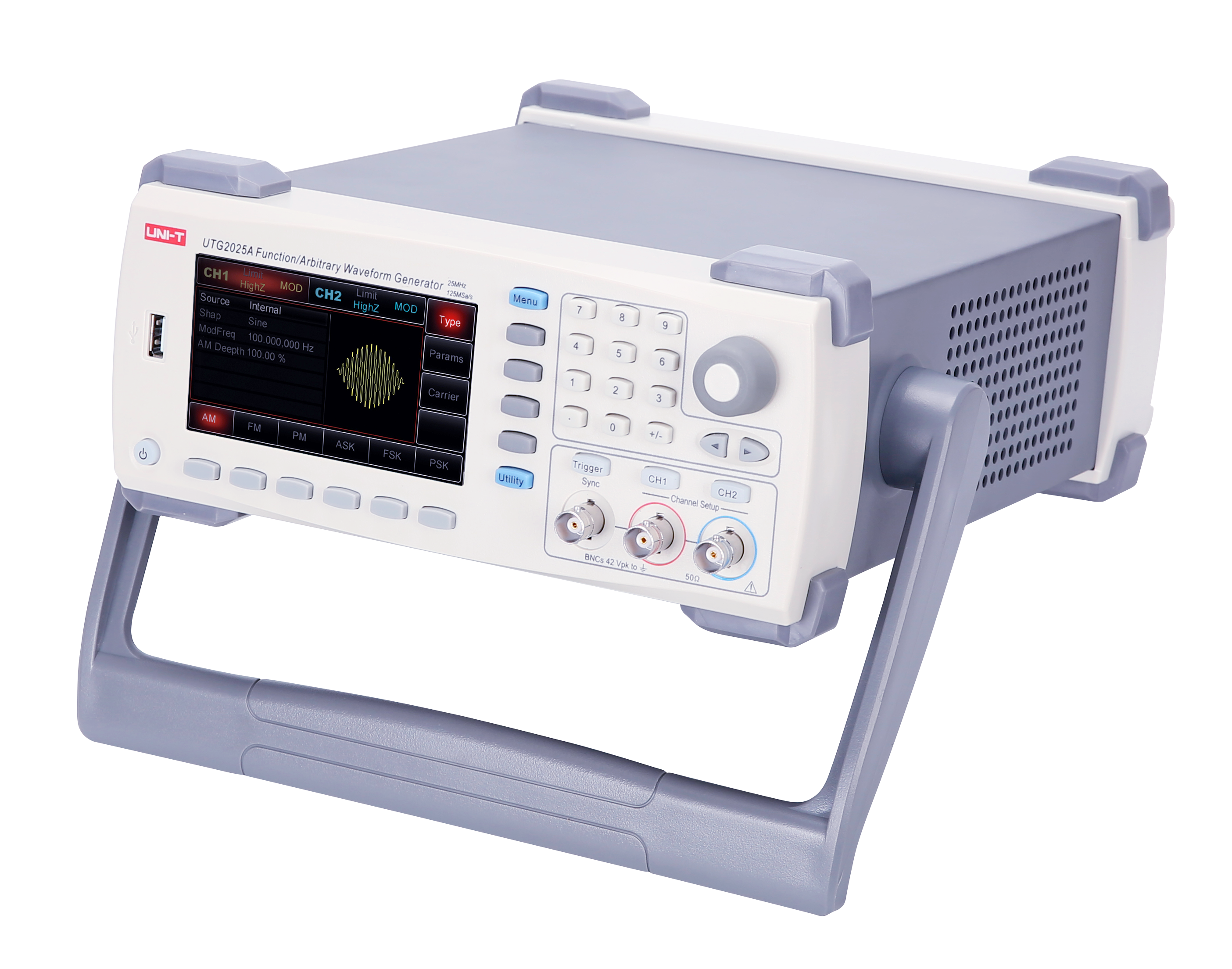

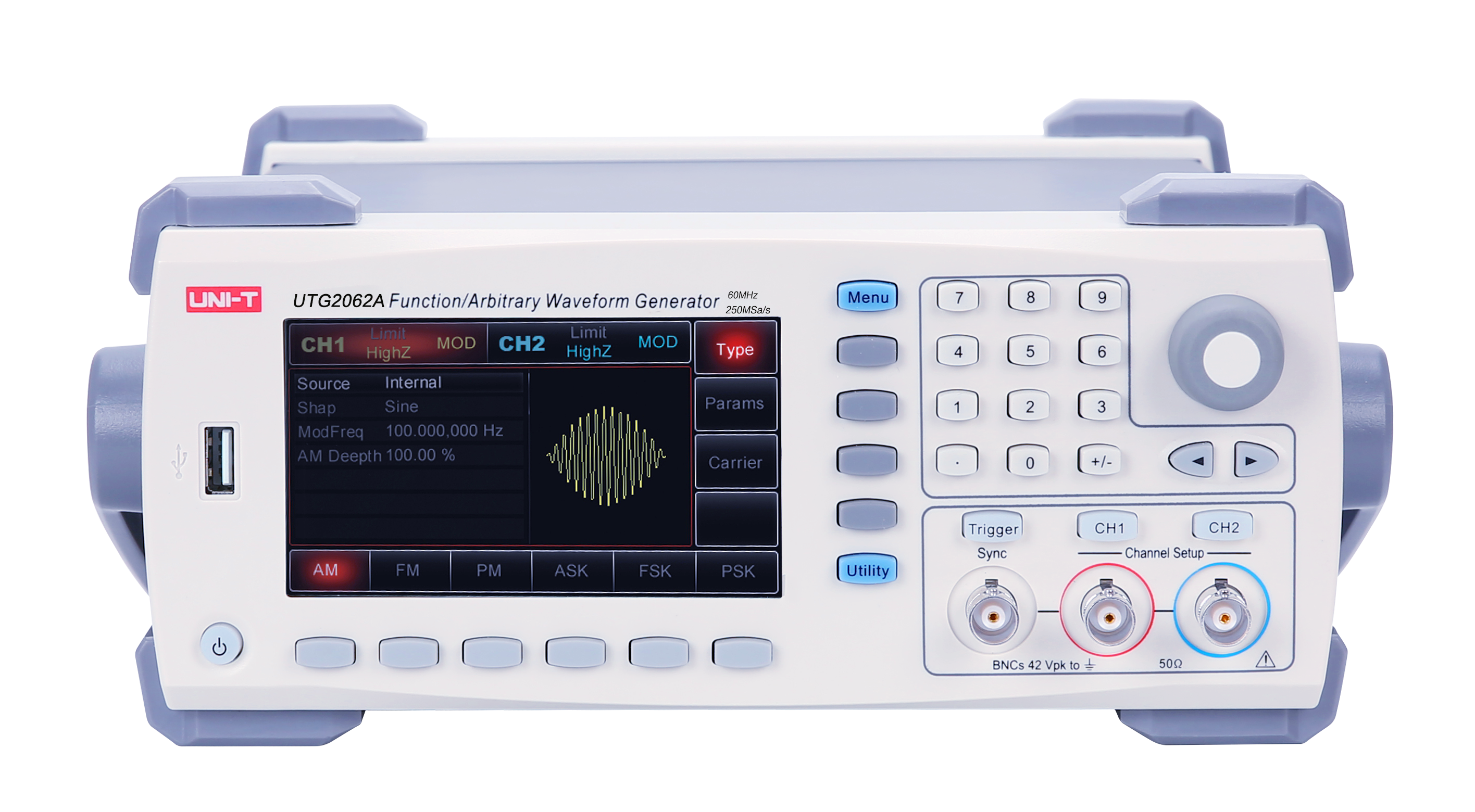

UTG2025A / UTG2062A

Product description: Function/Arbitrary Waveform Generators
INQUIRY

Product Features:
1. Intuitive Interface Design;
2. Dual Channels with Standard Performance;
3. 125MS/s Sample Rate, 14bits Vertical Resolution;
4. Integrated Analog and Digital Design;
5. 4.3” HD Display Panel.

Specifications	UTG2025A	UTG2062A
Channels	2
Max. Sample Rate	125MS/s	250MS/s
Max. Output Frequency	25MHz	60MHz
Frequency Resolution	1μHz
Vertical Resolution	14bits
Max. Arb Memory Depth	8kpts	1Mpts
Waveform	Sine, Square, Ramp, Triangle, Pulse, Noise, DC, Arb
Output Amplitude Range	1mVpp～10Vpp (50Ω); 2mVpp～20Vpp (High Z)
Modulation Types	AM, FM, PM, ASK, FSK, PWM, Sweep, Burst
Interface	USB Device, USB Host
General Characteristics
Power	100-240VAC, 50/60Hz
Display	4.3 inches 64K Color TFT LCD, 480×272
Product Color	White and grey
Product Net Weight	3.2kg
Product Size	231mm × 94mm × 283mm

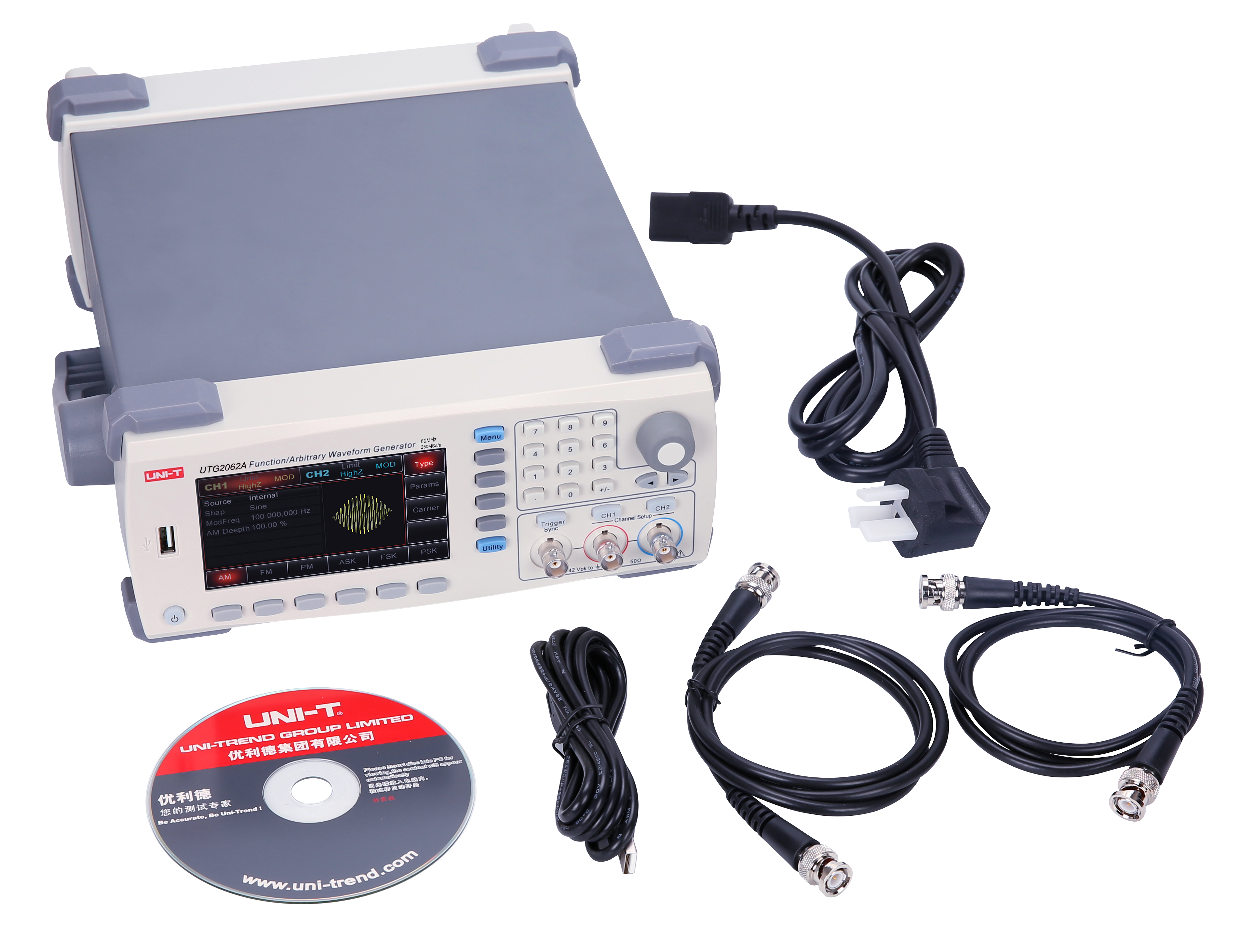

Standard Accessories	BNC Cable, Power Cord, USB Cable, PC Software CD
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	2pcs
Standard Carton Measurement	330mm × 295mm × 255mm
Standard Carton Cross Weight	10.5kg
Optional Accessories
LAN Communication Port
