Clamp meter

UT233

Features

1. 999-group data storage; single/continuous recording and data recall available

2. True RMS voltage/current measurement

3. 3-phase 3-wire, 3-phase 4-wire and single-phase 2-wire measurements

4. 10000 count LCD dual display

5. Adjustable sampling rate

6. Max/Min modes

7. Auto range, auto power off, backlight, low battery indication

8. Equipped with USB interface and PC software CD

Specifications	Range	Best Accuracy
Model		UT233
AC Current (A)	40A/100A/400A/1000A	±(2%+5)
AC Voltage (V)	15V/100V/300V/600V	±(1.2%+5)
Frequency (Hz)	20Hz~500Hz	√
Active Power (W)	0.01kW-600kW	±(3%+5)
Apparent Power (VA)	0.01kVA~600kVA	±(3%+5)
Reactive Power (VAr)	0.01kVAr~600kVAr	±(4%+5)
Power Factor	0.3~1	±(0.02%+2)
Phase Factor (°)	0° ～ 360°	±1°
Active Energy (Wh)	1~9999kWh	±(3%+2)
Features
Display Count		10000
Auto Range		√
Jaw Capacity		50mm
True RMS	AC Voltage/AC Current	√
Auto Power Off		√
Low Battery Indication		√
Data Hold		√
MAX/MIN		√
Data Storage		99
USB Interface		√
LCD Backlight		√
Full Icon Display		√
Single-Phase 2-Wire		√
3-Phase 3-Wire		√
3-Phase 4-Wire		√
Phase Sequence Test	Positive Phase, Reverse Phase, Phase Deficiency	√
Auto Calibration		√
Input Impedance for DCV	≥10MΩ	√
General Characteristics
Power	1.5V Batteries (5﹟) ×4
LCD Size	46mm X 42mm
Product Color	Red and grey
Product Net Weight	601g
Product Size	303mm X 112mm X 39mm

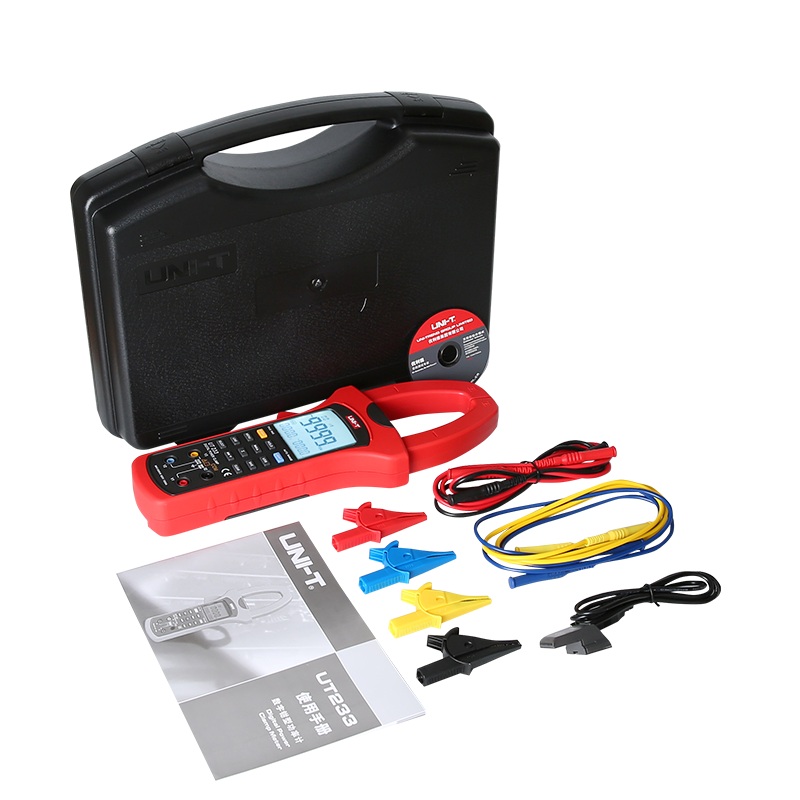

Standard Accessories	Battery, Test Lead, Aligator Cilp, USB Interface Cable, PC Software CD, Point Contact Temperature Probe
Standard Individual Packing	Gift Box, Carrying Bag, English Manual
Standard Quantity Per Carton	5pcs
Standard Carton Measurement	480mm X 372mm X 315mm
Standard Carton Gross Weight	12kg
