  • Product description: Handheld Spectrum Analyzers
  • INQUIRY

Features

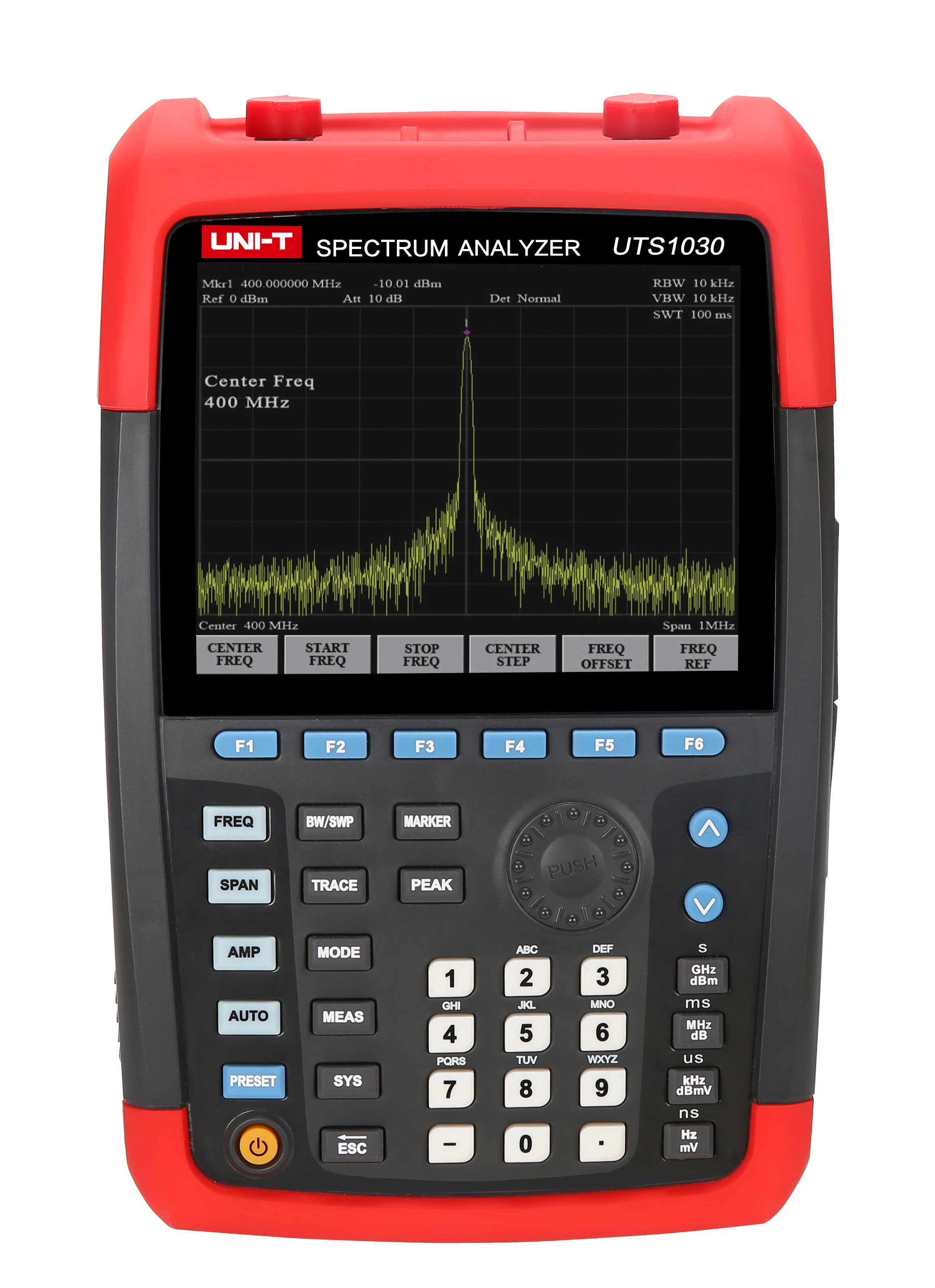

1. 6.5 inches large high-definition screen

2. Splendid and vivid structural design

3. Light-weight, compact, easy to carry with

4. Offers 6600mAh large-capacity rechargeable battery for continuous working up to 4 hours

5. Shares similar interface with that of benchtop spectrum analyzer

6. Offers better specifications than that of portable spectrum analyzers prevailing in the market; suitable for indoor and outdoor use


Specifications UTS1010 UTS1020 UTS1030
Spectrum Measurement
Range 9kHz~2GHz 9kHz~2.6GHz 9kHz~3.6GHz
Resolution  1Hz
Accuracy ±(Frequency Marker Readout*Frequency Reference Accuracy +1%*Span+10%*RBW+0.5*[Span/(Sweep Points-1)]+1Hz)
Internal Reference (10MHz) Aging Rate <1ppm/year
Stability Over Temperature <0.5ppm (15℃ ~ 35℃)
Resolution Bandwidth (RBW)
Range 10Hz~3MHz, Customized down to: 1Hz~10Hz
Electability (60dB/3dB) RBW≤500kHz; <5:1 Typical (Digital implementation, next to Gaussian shape); <5% Typical
Accuracy RBW≤500kHz; <5% Typical
Video Bandwidth 10Hz~3MHz
Average Noise Level (1Hz RBW, 0dB RF Attenuator)
Preamplifier Off 100kHz~1MHz: <-100dBm-3×(f/100kHz)dB
1MHz~10MHz: <-130dBm
10MHz~1GHz: <-135dBm
1GHz~3.6GHz: <-130dBm
Preamplifier On 100kHz~1MHz: <-120dBm-3×(f/100kHz)dB
1MHz~10MHz: <-150dBm
10MHz~1GHz: <-155dBm
1GHz~3.6GHz: <-148dBm
Phase Noise (fc=500MHz)
Offset 30kHz -90dBc/Hz
Offset 100kHz -100dBc/Hz
Offset 1MHz -110dBc/Hz
Sweep Time
Span (100Hz≤SPAN≤3.6GHz) 10ms to 3000s
Zero Span 1ms to 3000s
Sweep Modes Continuous, Single
Trigger
Trigger Source AUTO, Video, EXT
Offset 100kHz 5V TTL Level (Typical)
Frequency Counter
Resolution  1Hz, 10Hz, 100Hz, 1kHz
Uncertainty  Frequency Readout x Frequency Reference Progress+Counter Resolution
Amplitude Accuracy (20℃~30℃)
Overall Amplitude Accuracy (90%) ±1.5dB
Input Signal Range: -50dBm ~ 0dBm
Amplitude
Max. Safe Input Level Average Continuous Power: +27dBm
Max. Input DC Voltage 50Vdc
Input Attenuator Range 0~39dB, in 3dB step
1dB Compression +7dBm
Residual Response
Third-Order Intercept (TOI) >30MHz: ﹢13dBm
Second Harmonic Intercept (SHI) +30dBm
Input Related Spurious <-60dBm
Residual Response <-85dBm
Tracking Generator (Optional)
Frequency Range 100kHz to 1.5GHz
Output Power -30dBm ~ 0dBm, in 1dB step
Output Flatness ±3dB
Input/Output
RF Input SMA Type, Negative (50Ω)
USB USB Host, USB Device
LAN 10/100 Base-T, RJ-45 Connector
AM/FM Demodulation  Headset
Reference Input/Output 10MHz, BNC Negative, Input: 0dBm ~ +10dBm; Ouput: 0dBm±2dB
General Characteristics
Power Li-ion Battery: 7.4V 6600mAh; DC Adapter: 100-240VAC 50/60Hz 1.5A
Display 6.5 inches TFT LCD, 640×480
Product Color Red and grey
Product Net Weight 3kg
Product Size 288mm × 182 mm ×142mm

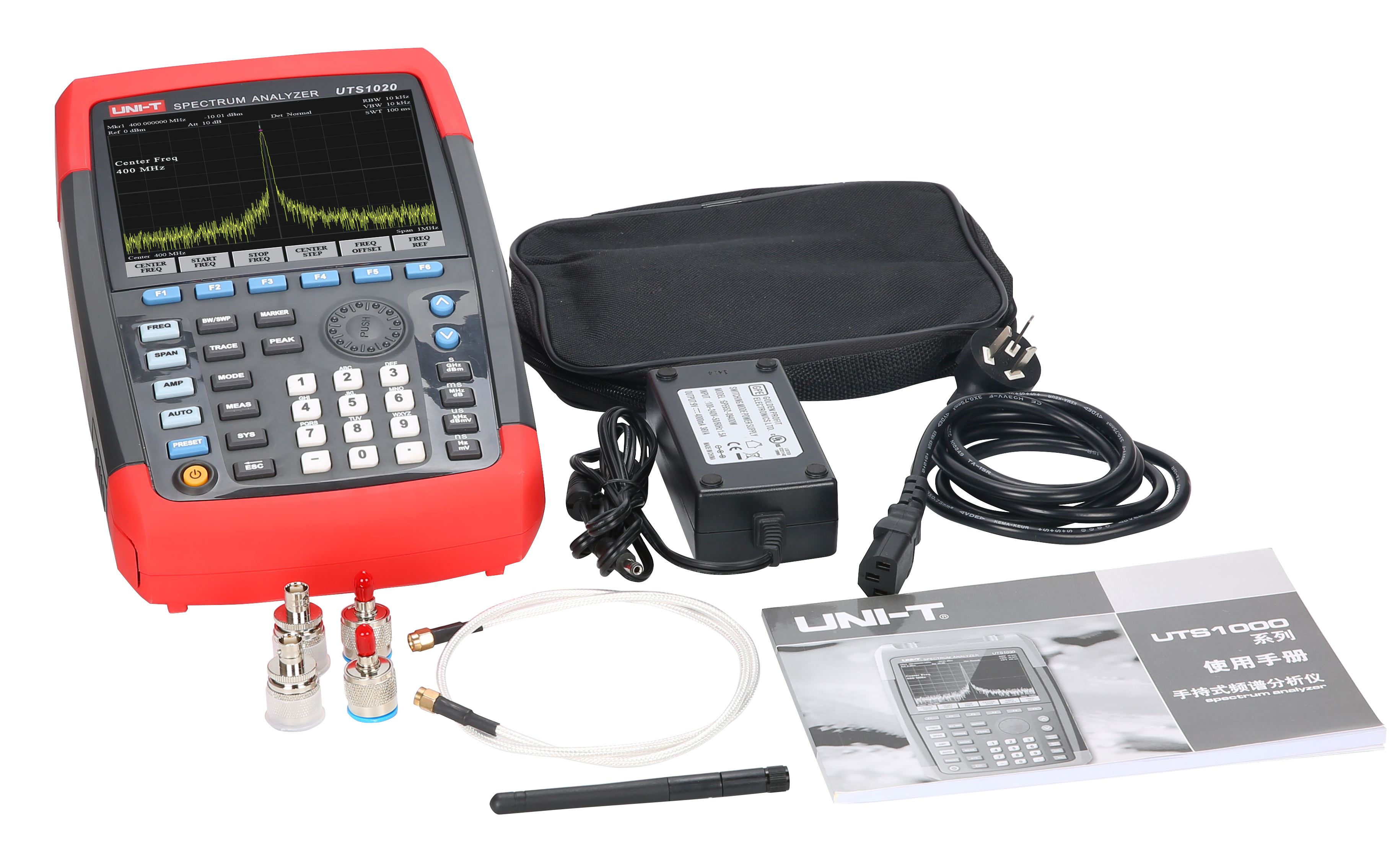

Standard Accessories DC Adapter, N/SMA Convertor, N/BNC Convertor, RF Cable, Antenna
Standard Individual Packing Gift Box, English Manual
Standard Quantity Per Carton 1pcs
Standard Carton Measurement (L×W×H) 400mm× 280mm × 220mm
Standard Carton Gross Weight 3.9kg
