1. 2 channels, wide vertical range: 1mV/div~20V/div;
2. 7 inch widescreen LCD display;
3. The new interface style;
4. Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device;
5. USB drive system software upgrade;
6. Storage of waveform setups and interface waveform and setup reproduction;
7. Automatic measurement of 32 waveform parameters;
8. Unique waveform record and replay function;
9. Multilingual menu available

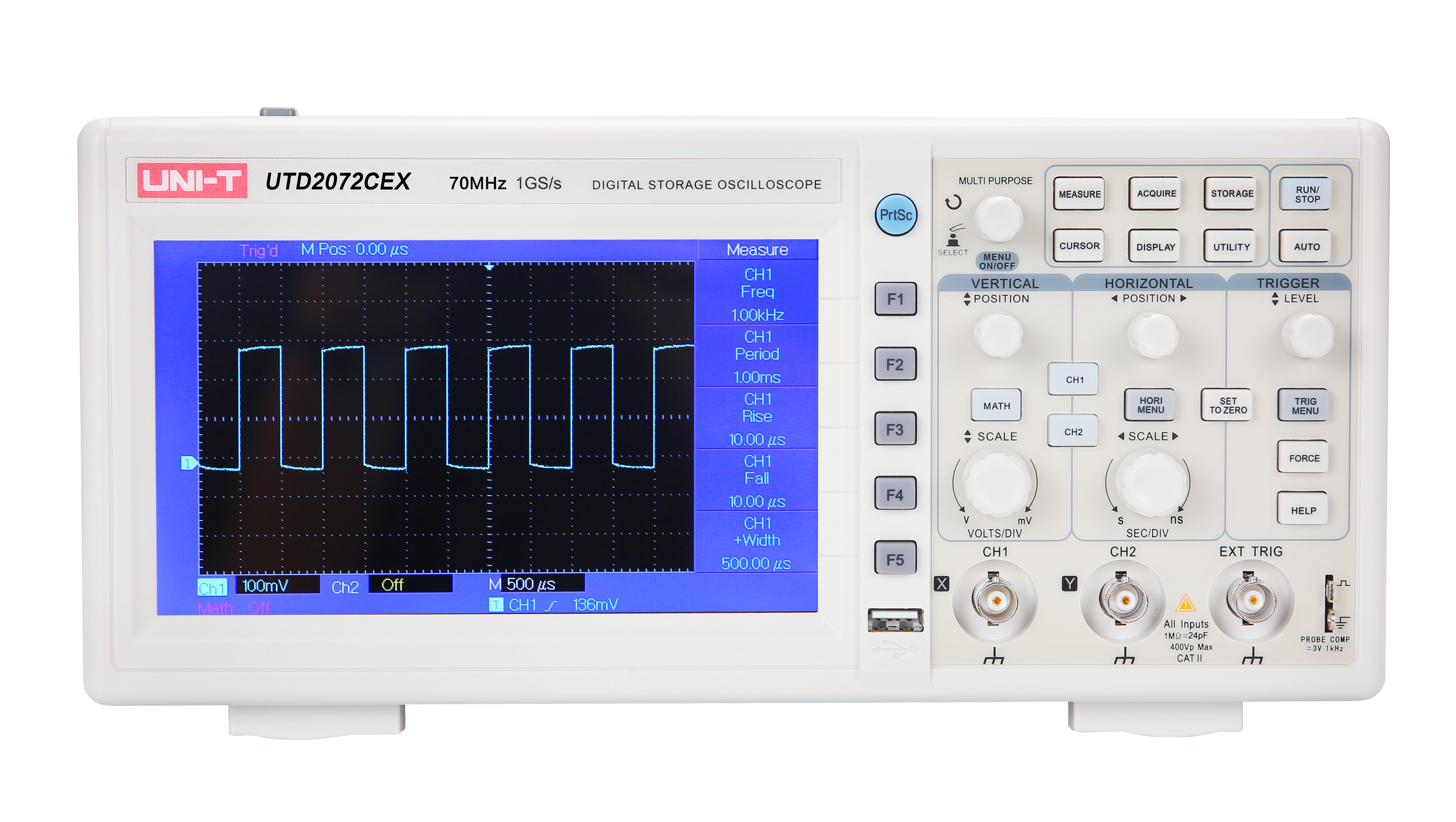

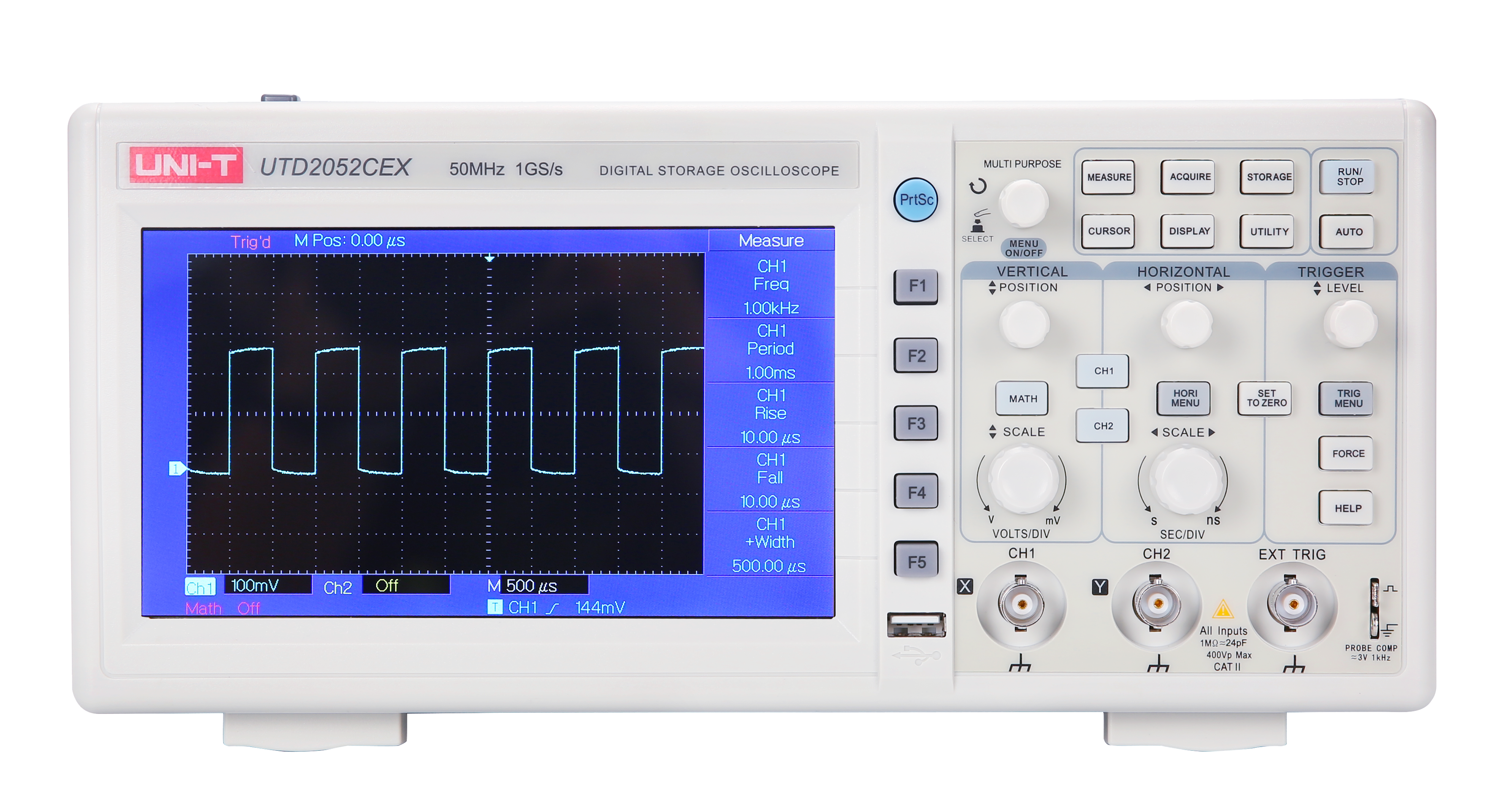

| Specifications | UTD2052CEX | UTD2072CEX | UTD2102CEX |
| Channels | 2 | ||
| Bandwidth | 50MHz | 70MHz | 100MHz |
| Sample Rate | 1GS/s | ||
| Rise Time | ≤7ns | ≤5ns | ≤3.5ns |
| Memory Depth | 25kpts | ||
| Waveform Acquisition Rate | ≥2000wfms/s | ||
| Vertical Sensitivity (V/div) | 1mV/div~20V/div | ||
| Timebase Range(s/div) | 2ns/div~50s/div | ||
| Storage | Setup, Wave, Bitmap | ||
| Trigger Modes | Edge, Pluse, Video, Slope, Alternate | ||
| Interface | USB OTG | ||
| General Characteristics | |||
| Power | 100-240VAC, 45-440Hz | ||
| Display | 7 inches 64K Color TFT LCD, 800×480 | ||
| Product Color | White and grey | ||
| Product Net Weight | 2.2kg | ||
| Product Size (W×H×D) | 306mm ×147mm × 122mm | ||

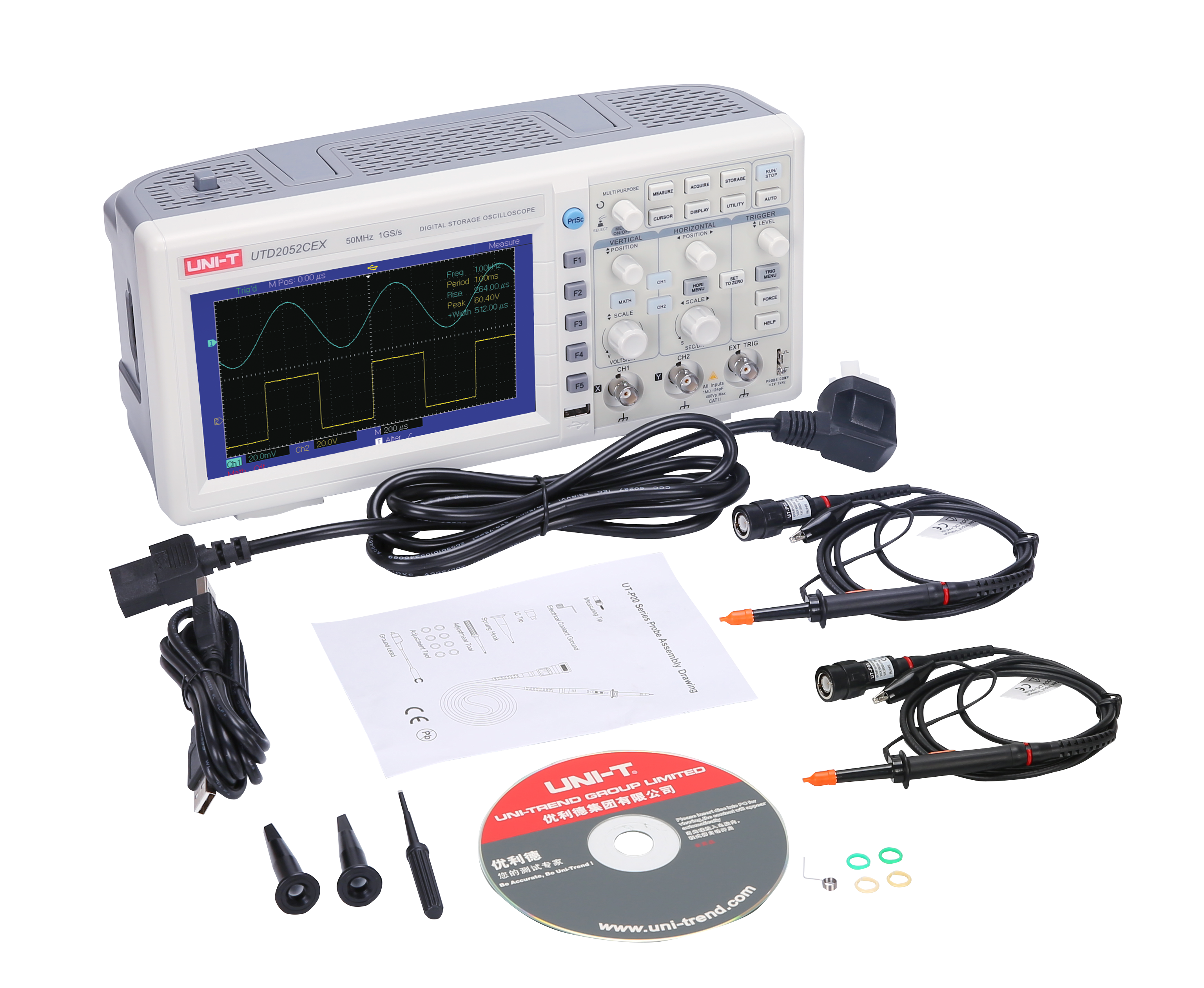

| Standard Accessories | Probe×2 (1×,10× switchable), Power Cord, USB Cable, PC Software CD | ||
| Standard Individual Packing | Gift Box, English Manual | ||
| Standard Quantity Per Carton | 2pcs | ||
| Standard Carton Measurement (L×W×H) | 450mm× 420mm × 280mm | ||
| Standard Carton Gross Weight | 8.5kg | ||
| Optional Accessories | |||
| LA Module | |||
