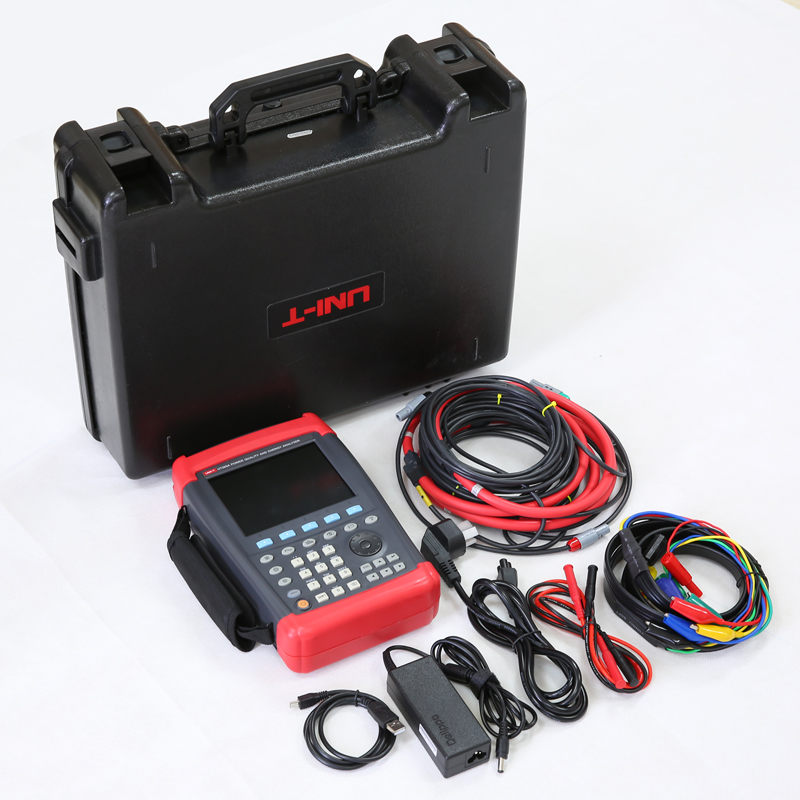

UT285A

Features

1. TFT color LCD display with 640×480 resolution

2. Visual waveform display

3. VAH mode

4. Harmonics measurement mode

5. Power mode

6. Unbalance mode

7. Flicker measurement

8. Power quality summary

9. Transient mode

10. Swell and sag mode

11. Trigger parameter view mode

12. True RMS voltage/current

13. ±0.1% Voltage and current accuracy

14. Inrush current

Specifications
Model	UT285A
	Range	Accuracy	Resolution
AC Voltage	0.1～1000V	0.10%	0.1V
AC Current	3000A Flexible Current Probe	1%(10~100%In)	0.01A
Power, Electric Energy	9000kW	1%	0.1 W
Power Frequency	45~65Hz	0.01Hz	0.001Hz
Phase Angle	0~359.99°	±0.1°	0.01°
Harmonics	0~50	A Level	0.01V
Inter Harmonics	0~50	A Level	0.01V
Voltage Unbalance Factor	0~50%	0.20%	0.01%
Current Unbalance Factor	0~50%	1%	0.01%
Flickering	0.00~20.00	5%	0.01
Swell and Sag Interrupt	0.0~200%	0.1V	0.01V
General Characteristics
Power	Li-ion 7.4V 3000mAh
Product Color	Red and grey
Product Weight	1950g
Product Size	263mm×168mm×60mm
Standard Accessories	Batteries, Flexible Current Probe×4
Standard Individual Packing	Gift Box, User Manual
