IR Thermometers

  • UTI80
UTI80

UTI80

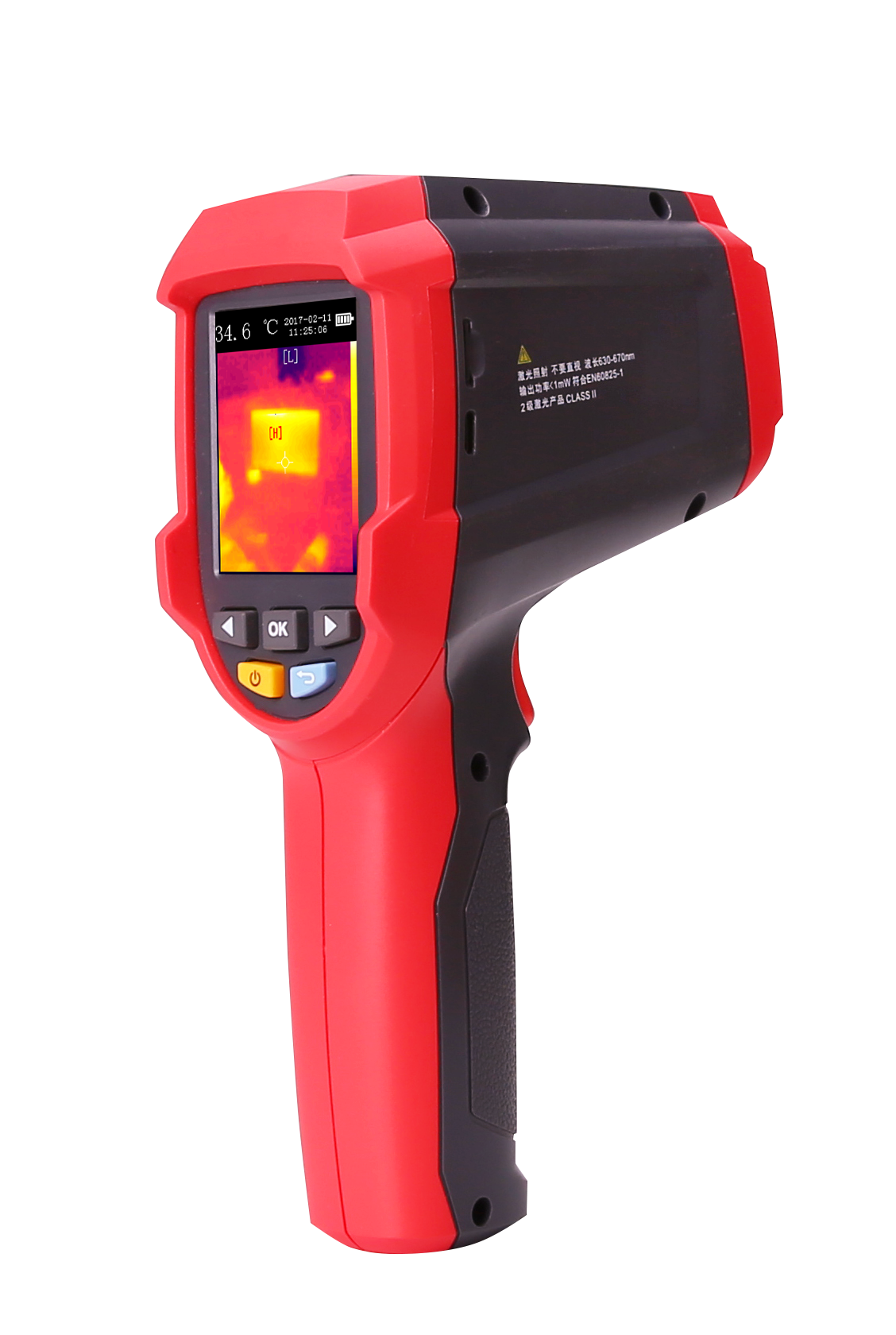

  • Product description: Thermal Imager
  • INQUIRY

Main Features

1. 2-megapixel camera

2. 4-inch TFT LCD Display

3. Dual laser

4. D:S ratio, 20:1

5. Adjustable emissivity 0.1~0.99

6. Temperature testing range: -30°C ~ 400°C

7. 80×60 pixel resolution, 51° Field of View

8. Merging visible and infrared image display

9. Chargeable Li-ion battery (charge through micro USB)


Industrial applications: Thermal imaging, automotive, monitoring

Other applications: Firefighting, radiology, R&D, HVAC, lighting, motor, energy saving, construction, health care, and more.


Specifications UTi80
Temperature range -30℃~400℃
Basic accuracy -30-0℃: ±3.5℃, 0℃~100℃: ±2℃, 101℃~400℃: ±2%
Emissivity 0.1-0.99 adjustable
D:S ratio 20:01
Measuring resolution 0.1℃/℉
Response time 150ms
Thermal Imaging Technology
Thermal imaging resolution 4800 pixels (80 x 60)
Pixel size 17μm
Image display thermal imaging, thermal blending, digital camera
Palettes iron red, rainbow, grey
Blending setup 0% (thermal imaging only), 25%, 50%, 100% (visible light only)
Infrared spectral bandwidth 8~14μm
FOV 50° horizontal
IFOV 11mrad
Thermal imaging sensitivity 150mk
Frame rate ≦9Hz
Image format BMP
Features
Visible light camera 2 megapixels
Display resolution 320 x 240 pixels
Laser indicator Dual laser
Auto power off Yes
Battery continuous working time 3~4hrs
Certification CE
SD card 8GB μSD card
Storage temperature -20℃~50℃, -4℉~122℉
Working temperature -10℃~45℃, 14℉~113℉
Drop proof 1m (3.28 feet)
Altitude ≤40000 feet
General Characteristics
Battery 3.7V/2600mAh
Monitor 2.4 inches TFT LCD
Device size (L x W x H) 205mm x 124mm x 65mm
Standard accessories Manual, USB cable, 8GB micro TF card
