IR Thermometers

  • UT300 A/C/S
  • UT300 A/C/S
  • UT300 A/C/S
UT300 A/C/SUT300 A/C/SUT300 A/C/S

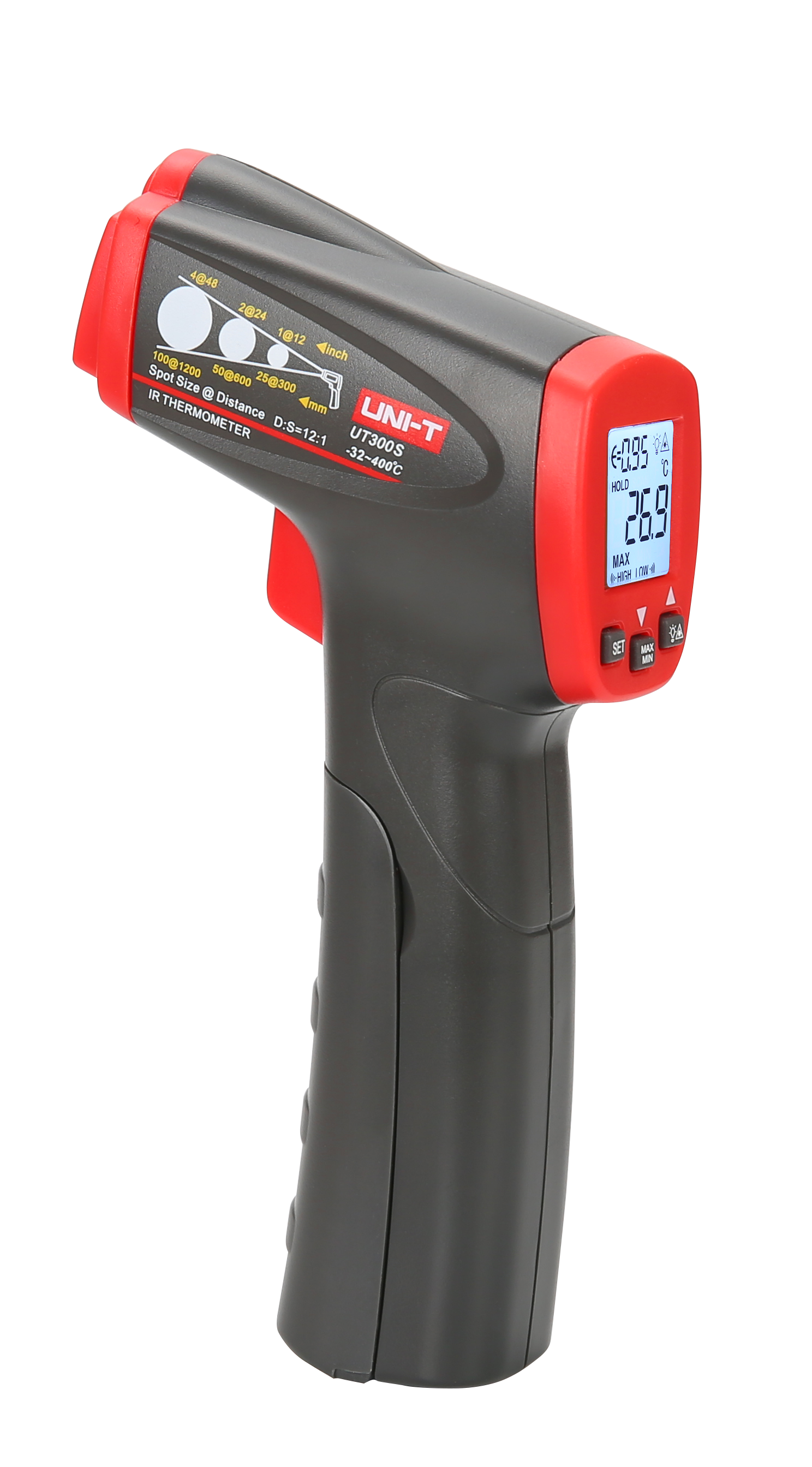

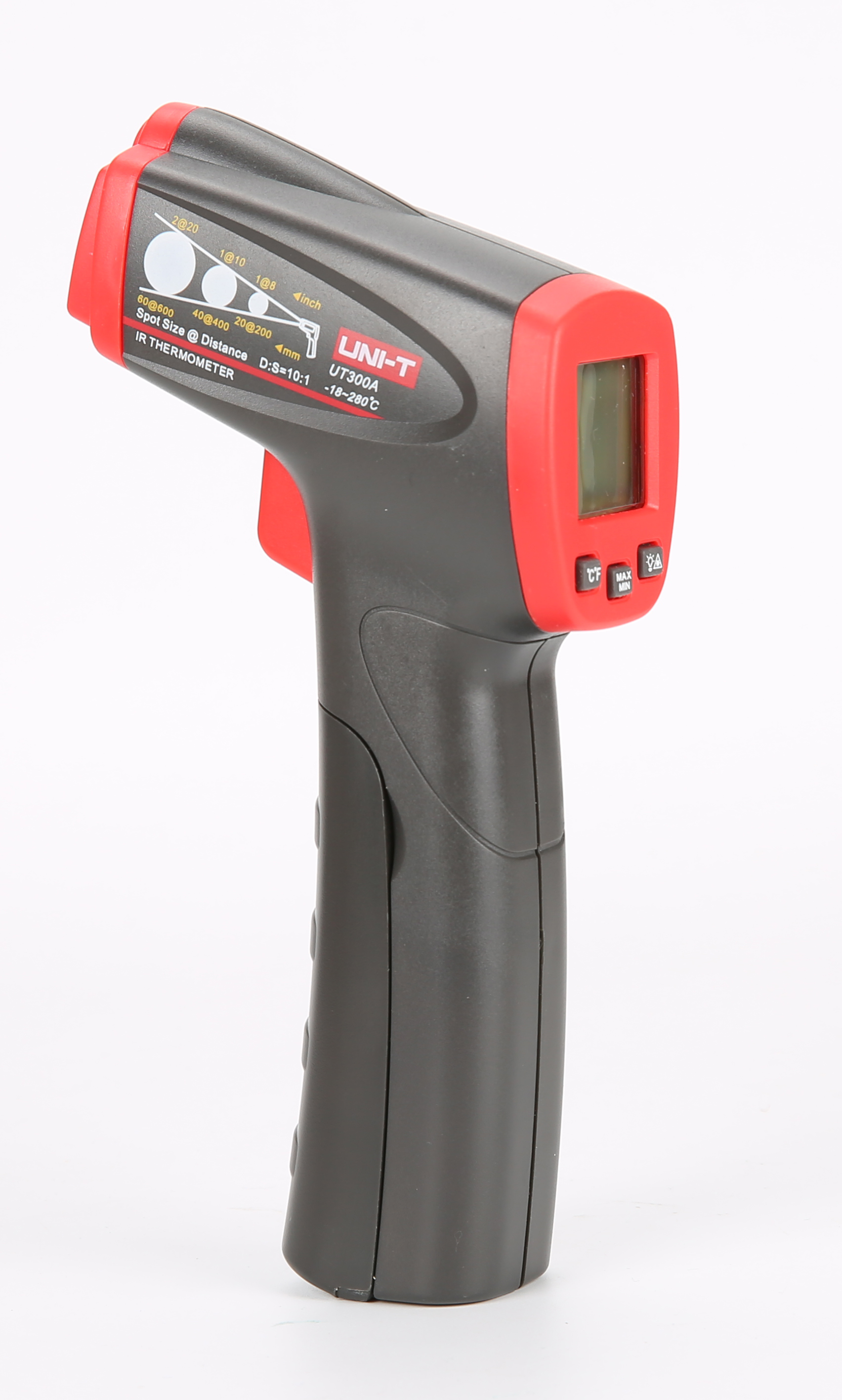

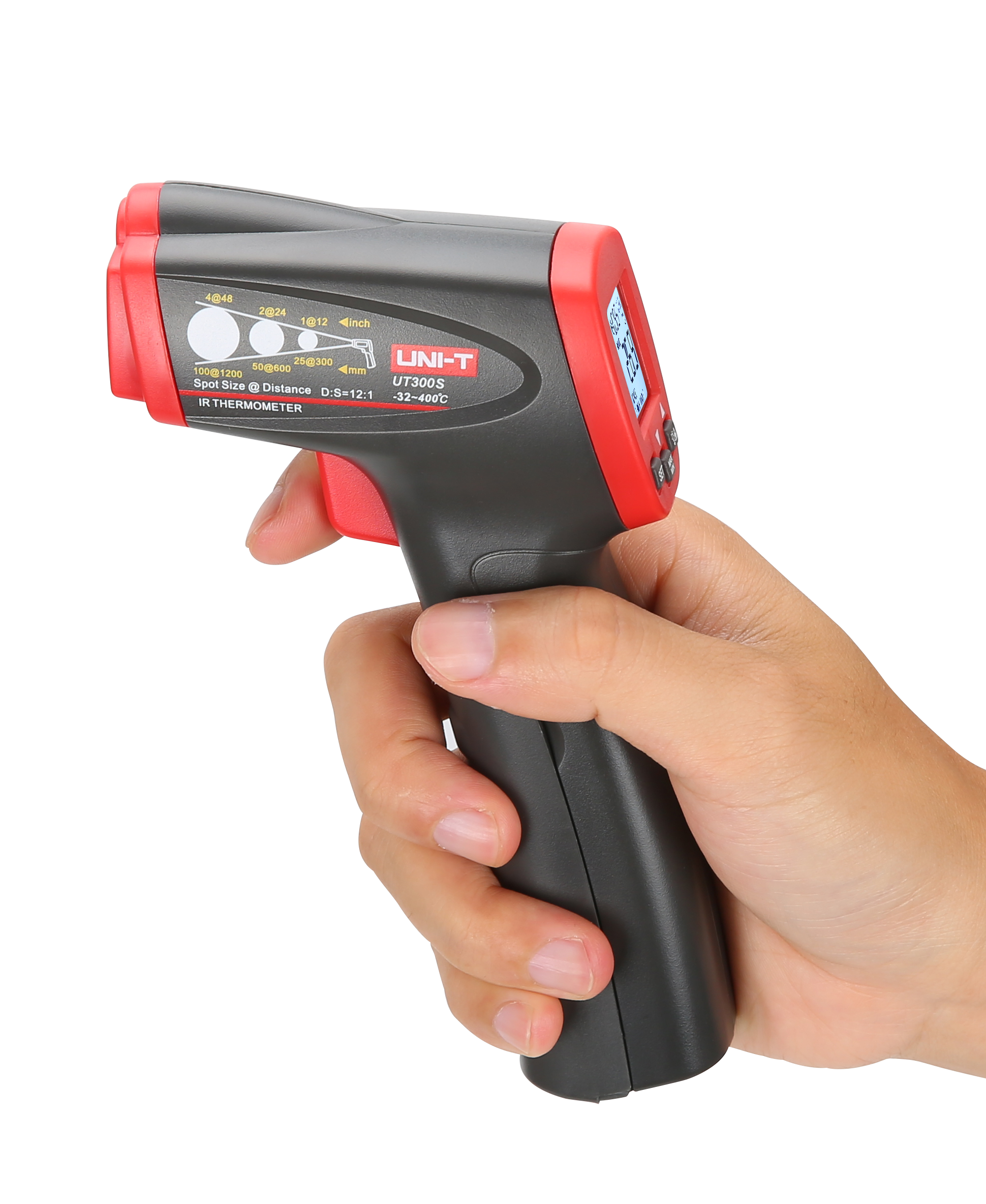

UT300 A/C/S

  • Product description: Infrared Thermometers
  • INQUIRY

Features

1. Dual display (real-time/MAX, real-time/MIN)

2. ℃/℉ options

3. LCD backlight

4. Auto power off

5. Low battery indication

6. Auto data hold

7. Optional (on/off) laser pointer

Specifications Range
Model UT300A UT300C UT300S
Temperature Range -18°C~280°C -20°C~400°C -32°C~400°C
0°F~536°F -4°F~752°F -25.6°F~752°F
Accuracy ±2°C or ±2% ±2°C or ±2% ±2°C or ±2%
Repeatability ±0.5°C or ±0.5% ±0.5°C or ±0.5% ±0.5°C or ±0.5%
Resolution 0.1°C/0.1°F 0.1°C/0.1°F 0.1°C/0.1°F
Distance to Spot Size 10:1 12:1 12:1
Response Time 500ms 500ms 500ms
Emissivity 0.95 0.10~1.0 Adjustable 0.10~1.00 Adjustable
Laser Type Class 2 Class 2 Class 2
Laser Power <1mW <1mW <1mW
Laser Wavelength 630nm ~670nm  630nm ~670nm  630nm ~670nm
Spectral Response 8μm~14μm  8μm~14μm  8μm~14μm
Features
°C/°F Selection
Laser switch
Display Hold (s) 8 seconds 8 seconds 8 seconds
Data Hold
Auto Power Off
Low Battery Indication
MAX Mode
MIN Mode
High Alarm
Low Alarm
LCD Backlight
General Characteristics
Power 9V Battery (6F22)
LCD Size 22mm X 22mm
Product Color Red and grey
Product Net Weight 185g
Product Size 153mm X 108mm X40mm
Standard Accessories Battery
Standard Individual Packing Blister, English Manual
Standard  Quantity Per Carton 48pcs
Standard Carton Measurement 590×530×360mm (0.11 CBM Per Standard Carton)
Standard Carton Gross Weight 14.8kg
