UTI160A

UTI160A

  • Product description: Thermal Imager-discontinued
  • INQUIRY

UTi160A is a 160×120 pixels thermal imager. It is IP54, suitable for working in rugged environments. The device is a useful tool for electrical system maintenance, HVACR, motor equipment, and power line troubleshooting and maintenance.

1. Supports calibration through: Ambient temperaure/humidity/distance/radiation rate

2. 2.8 inches TFT LCD, 270°rotatable

3. PAL and NTSC video output

4. Six types of display palettes

5. Fixed center point temperature

6. Max/Min temperature tracking

7. High/Low temperature alarm

8. Image storage: up to 16G

Specifications


Model

UTi160A

Sensor Type

Uncooled Focal Plane Arrays

Resolution

160*120 pixels

Field of View /Minimum Focus Distance

20°×15°/0.1m

Spatial Resolution(IFOV)

2.2mrad

Image Mode

Infrared

Focus

Manual

Infrared Spectral Bandwidth

8~14um

NETD

≤0.08℃@30℃

Temperature Range

-20℃~300℃

Accuracy

±2°C or ±2% (whichever is greater)

Features

Display Type

2.8"TFT LCD, Rotatable

Palettes

Iron,Iron-Invert, Rainbow, Feather, Grey, Grey Inverted

Image Adjustment

Auto/Manual

Image Format

*·UIR

Video Output

Support PAL (50Hz)  or  NTSC (60Hz) (|with optional base)

Measurement Mode

Movable Spot, Area (MAX, MIN)

Parameters Setting

Emissivity, Distance, Temperature, Relative Humidity

Self Temperature Calibration

Every 60 Seconds

High/Low Temperature Alarm

Laser Pointer

Image Capture

Image Storage

2GB SD Card (Support up to 16GB)

Temperature Units

℃/℉

Support Languages

English/Simplified Chinese

Restore factory settings

Power Mode

Standard/Power Saving

Analyzing Software

Standard Version

Water Proof Rating

IP54

Impact /Vibration

25G/2G

General characteristics

Power

Li-ion 1250mAh

Product Color

Red and grey

Product Net Weight

500g

Product Size

170mm X 80mm X 160mm

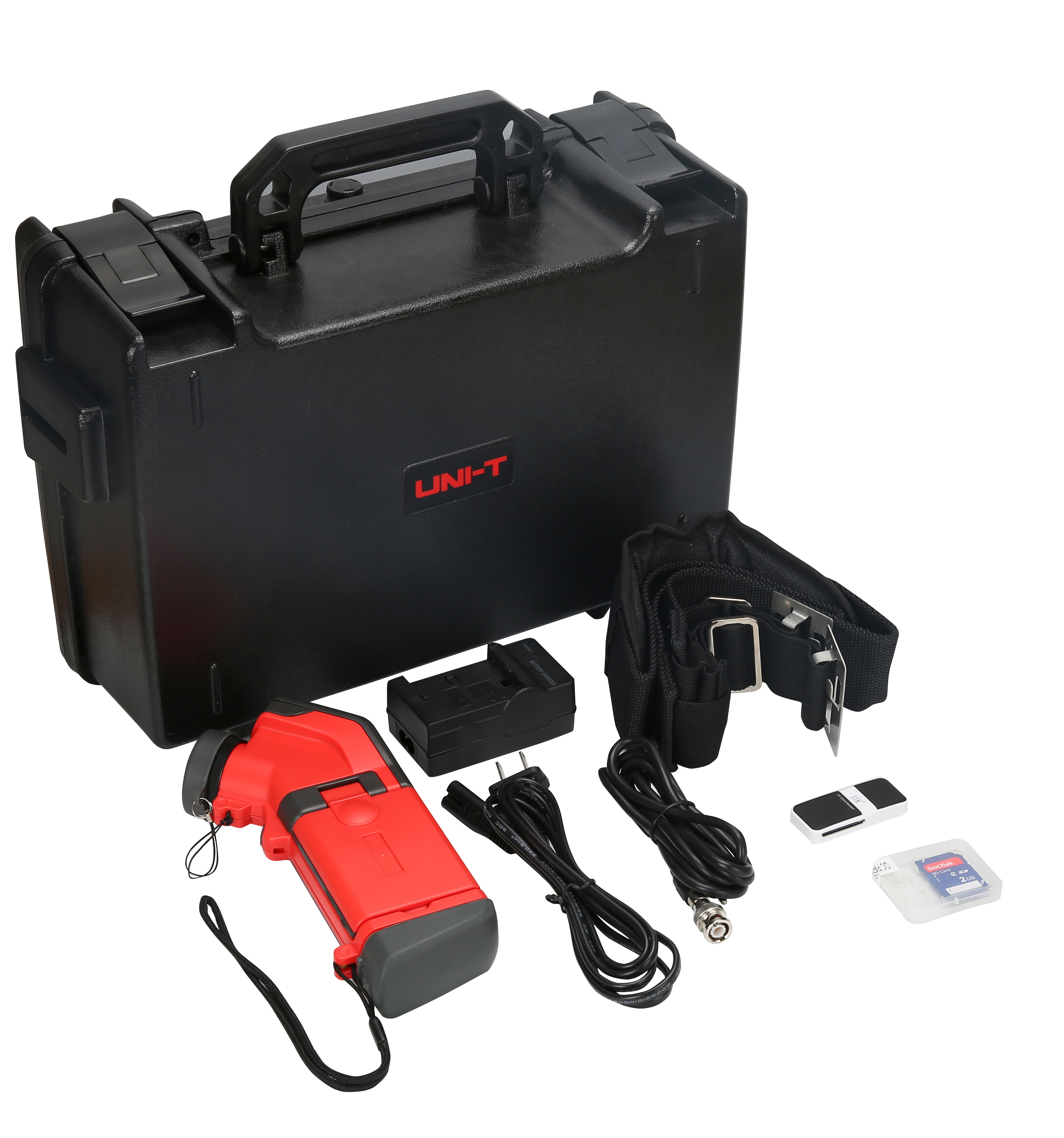

Standard Accessories

Batteries, Power Charger, SD Card (2G), Card Reader, Camera Cover, Software CD

Standard Individual Packing

Gift box, Toolbox, User Manual

Standard Quantity Per Carton

5 PCs

Standard Carton Measurement

545mm × 380mm × 325mm (0.067 CBM Per Standard Carton)

Standard Carton Gross Weight

11.6Kg

Optional Accessories

Multi-purpose Dock, Power Adapter, Video Cable,16G SD card, Vehicular Power Cord, Lens Hood,38°Wide –angle Lens, 12°, 6.4°, 3.8°Tele Lens, Tailer-made    Temperature Range (600℃, 1000℃, 1500℃)
