The 1000A AC/DC digital clamp meter is stable, safe and reliable with low power consumption. Its full range overload protection and unique appearance design make it the ideal tool for maintenance and repair of electrical and power lines up to 1000A AC.
Features
1. 1000A AC/DC current measurement, 3/s sampling rate
2. Auto/manual ranges selectable
3. True RMS
4. Zeroing function with relative mode
5. LCD backlight
6. Data hold
7. Auto power off and low battery indication
Specifications
Model
UT209A
AC Current (A)
40A/400A/1000A
±(2%+8)
DC Current (A)
40A/400A/1000A
±(1.5%+8)
AC Voltage (V)
400mV/4V/40V/400V/750V
±(1.2%+5)
DC Voltage (V)
400mV/4V/40V/400V/1000V
±(0.8%+1)
Resistance (Ω)
400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
±(1%+2)
Capacitance (F)
4nF/40nF/400nF/4μF/40μF/100μF
Frequency (Hz)
10Hz/100Hz/1kHz/10kHz/1MHz/10MHz
±(0.1%+3)
Temperature (°C)
-40 °C ～ 1000°C
Features
Display Count
4000
Auto Range
√
Jaw Capacity
55mm
True RMS
AC Voltage/AC Current
√
Duty Cycle
0.1%~99.9%
√
Diode
√
Auto Power Off
√
Continuity Buzzer
√
Low Battery Indication
√
Data Hold
√
LCD Backlight
√
Input Impedance for DCV
Around 10MΩ
√
General Characteristics
Power
9V Alkaline Battery (6LF22)
LCD Size
47mm X 30mm
Product Color
Red and grey
Product Net Weight
533g
Product Size
286mm X 105mm X 45mm

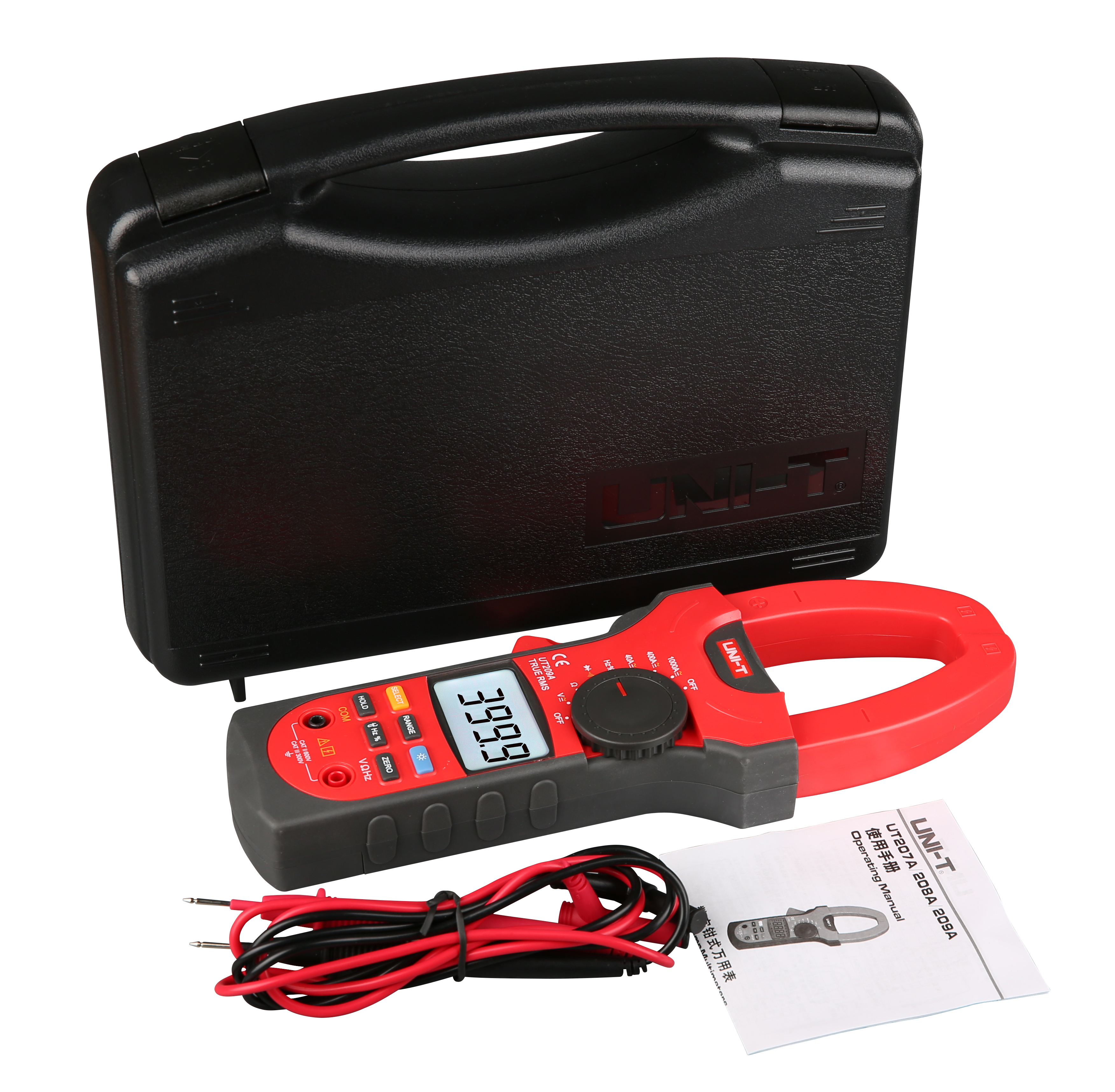

Standard Accessories
Battery, Test Lead, Tool Box
Standard Individual Packing
Gift Box, English Manual
Standard Quantity Per Carton
20pcs
Standard Carton Measurement
600×370×474mm (0.11 CBM Per Standard Carton)
Standard Carton Gross Weight
28.3kg
