Clamp meter

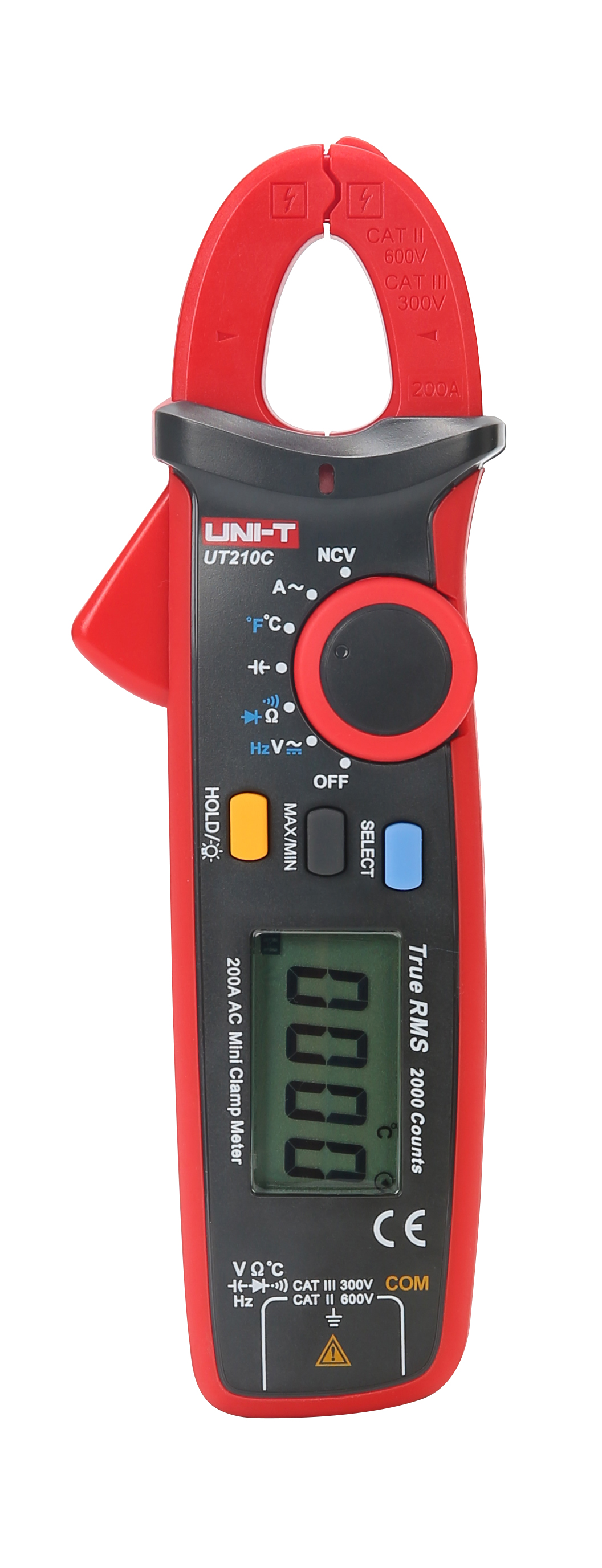

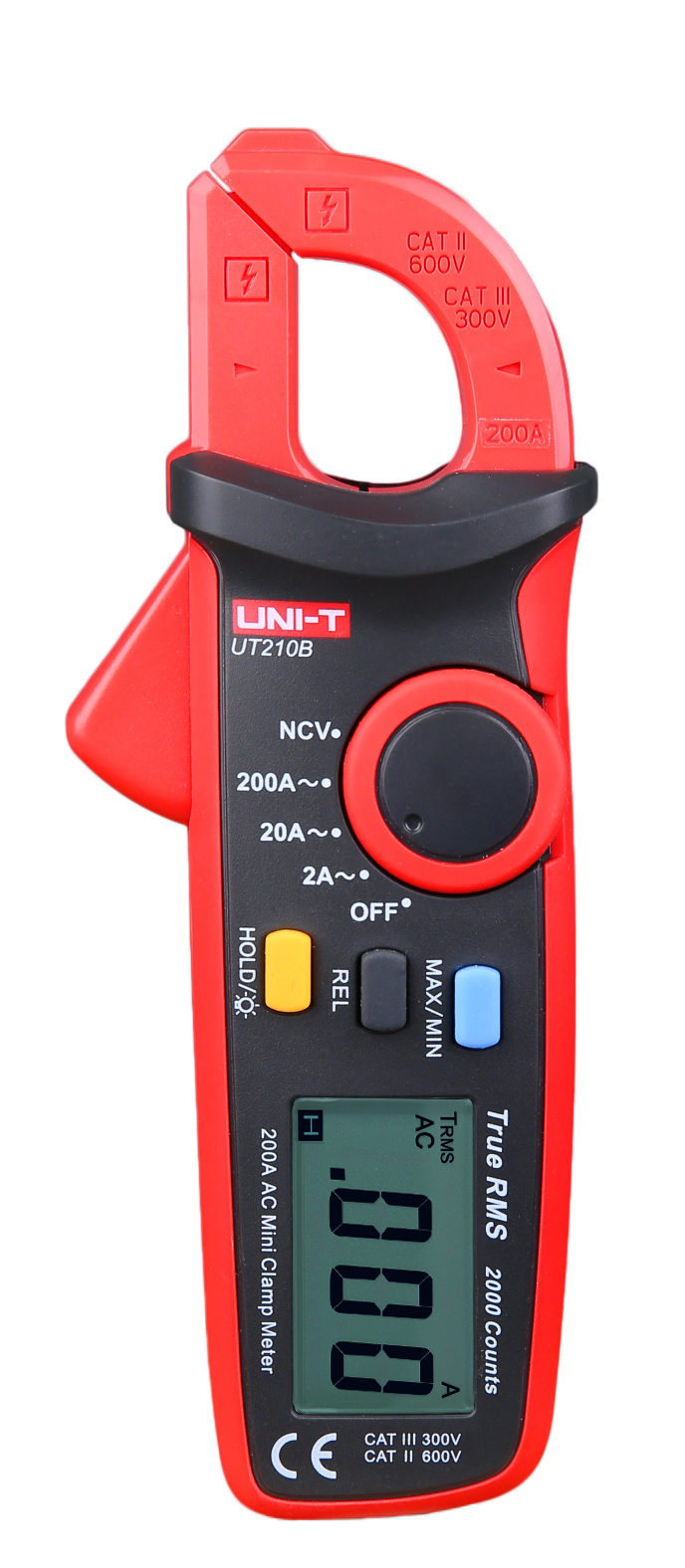

UT210 A/B/C

Product description: 200A Mini Digital Clamp Meter
INQUIRY

UT210A's jaw (17mm) is convenient for you to use in narrow working environments. It is an essential tool for all kinds of indoor mechanical and electrical equipment maintenance, home appliance installation and electricians.

Main Features

1. Auto range, 2~3/s sampling rate

2. MAX mode

3. LCD backlight, data hold

4. Auto power off, low battery indication and overload protection

5. Ergonomic and lightweight

Specifications	Range	Best Accuracy
Model		UT210A	UT210B	UT210C
AC Current (A)	2A/20A/200A	±(2.5%+20)	±(2.5%+20)
AC Current (A)	20A/200A			±(2.0%+10)
AC Voltage (V)	2V/20V/200V/600V			±(1.0%+3)
DC Voltage (V)	200mV/2V/20V200V/600V			±(0.7%+3)
Resistance (Ω)	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ			±(1.0%+2)
Capacitance (F)	20nF~20mF			±10%
Temperature (℃)	-40~1000℃			±(1%+3)
Temperature (℉)	-40~1832℉			±(1.5%+5)
Features
Display Count		2000	2000	2000
Auto Range		√	√	√
Jaw Capacity		16mm	16mm	17mm
True RMS			√	√
Diode	Around 3.0V			√
NCV			√	√
Auto Power Off	Around 15 minutes	√	√	√
Continuity Buzzer				√
Low Battery Indication	≤2.5V	√	√	√
Data Hold		√	√	√
MAX/MIN		Max Hold	√	√
Relative Mode			√
LCD Backlight		√	√	√
Input Protection		√	√	√
Input Impedance for DCV	≥10MΩ			√
General Characteristics
Power	AAA 1.5V x 2
LCD Size	39.3mm x 26.5mm
Product Color	Red and Grey
Product Net Weight	UT210A/B - 150g UT210C - 170g
Product Size	UT210A/B - 158mm x 60mm x 33.5mm UT210C - 175mm x 60mm x 33.5mm

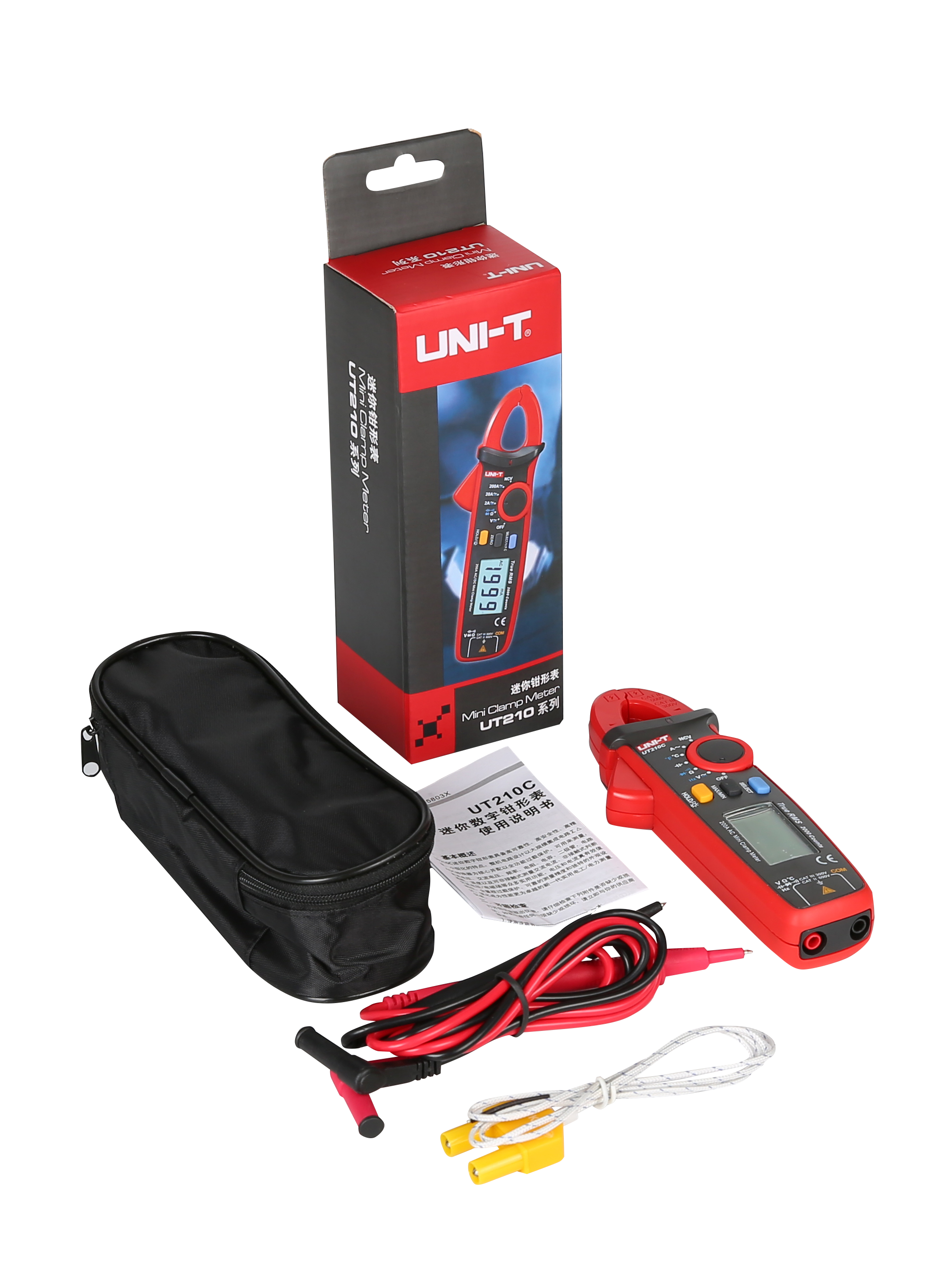

Standard Accessories	UT210A/B - Batteries UT210C - Batteries, Test Leads, Temperature Probe
Standard Accessories
Standard Individual Packing	UT210A/B - Gift Box, English Manual UT210C - Gift Box, Carrying bag, English Manual
Standard Quantity Per Carton	40pcs
Standard Carton Measurement	UT210A/B - 345mm x 245mm x 300mm (0.025 CBM Per Standard Carton) UT210C - 385mm x 345mm x 305mm (0.041 CBM Per Standard Carton)
Standard Carton Gross Weight	UT210A/B - 9.5kg UT210C - 11kg
