Circuit detection

UT585

Features

1. Lock measurement; automatically begin measurement after powering on

2. Test lead connection check

3. Phase angle selection (0°and 180°), can detect the fastest trigger time

4. AUTO RAMP measurement, trip current and time real-time display

5. Voltage measurement with AC/DC

6. 1A trigger test

7. Fuse protection; data hold, over range indication, double insulation

Specifications	Range			Accuracy
Model				UT585
RCD Measurement	Range Selection	Rated Operation Current	Trip Time
	X 1/2	10mA/20mA/30mA/100mA/300mA/500mA	1000ms	√
	X 1	10mA/20mA/30mA/100mA/300mA/500mA	1000ms	√
	X 2	10mA/20mA/30mA/100mA/300mA	1000ms	√
	X 5	10mA/20mA/30mA/100mA	200ms	√
	AUTO RAMP	10mA/20mA/30mA/100mA/300mA/500mA	300ms	√
	Trip Current Accuracy			±10%
	Trip Time Accuracy			±(1%+3)
	Trip Time Resolution			1ms
	Operational Voltage	230V (50Hz)		±10%
AC Voltage (V) (Freq.)	60V～400V (50～60Hz)			±(3%+5)
Features
Auto Power Off				√
Low Battery Indication				√
Data Hold				√
LCD Backlight				√
Contact Voltage Automatic Detection				√
Over-Temperature Detection				√
Lock Test Function				√
Connections Check Function	Visible indication			√
Fuse Security				√
General Characteristics
Power	1.5V batteries (5#) X 8
LCD Size	125mm X 37mm
Product Color	Red and grey
Product Weight	1000g
Product Size	210mm X 175mm X 90mm

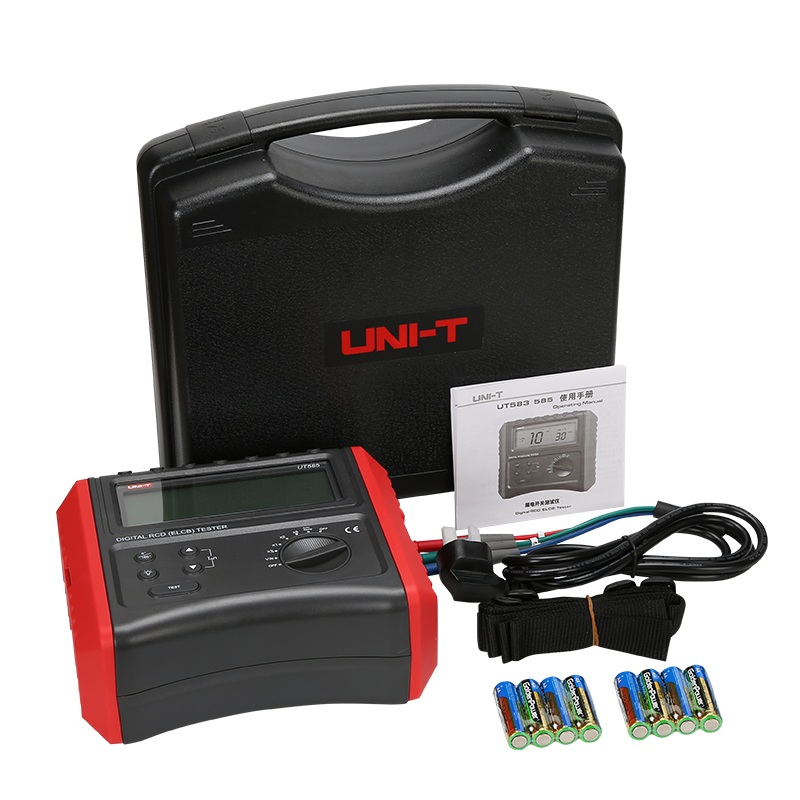

Standard Accessories	Batteries, test leads, tool box
Standard Individual Packing	Gift box, user manual
Standard Quantity Per Carton	4pcs
Standard Carton Measurement	510mm X 330mm X 330mm
Standard Carton Gross Weight	15kg
