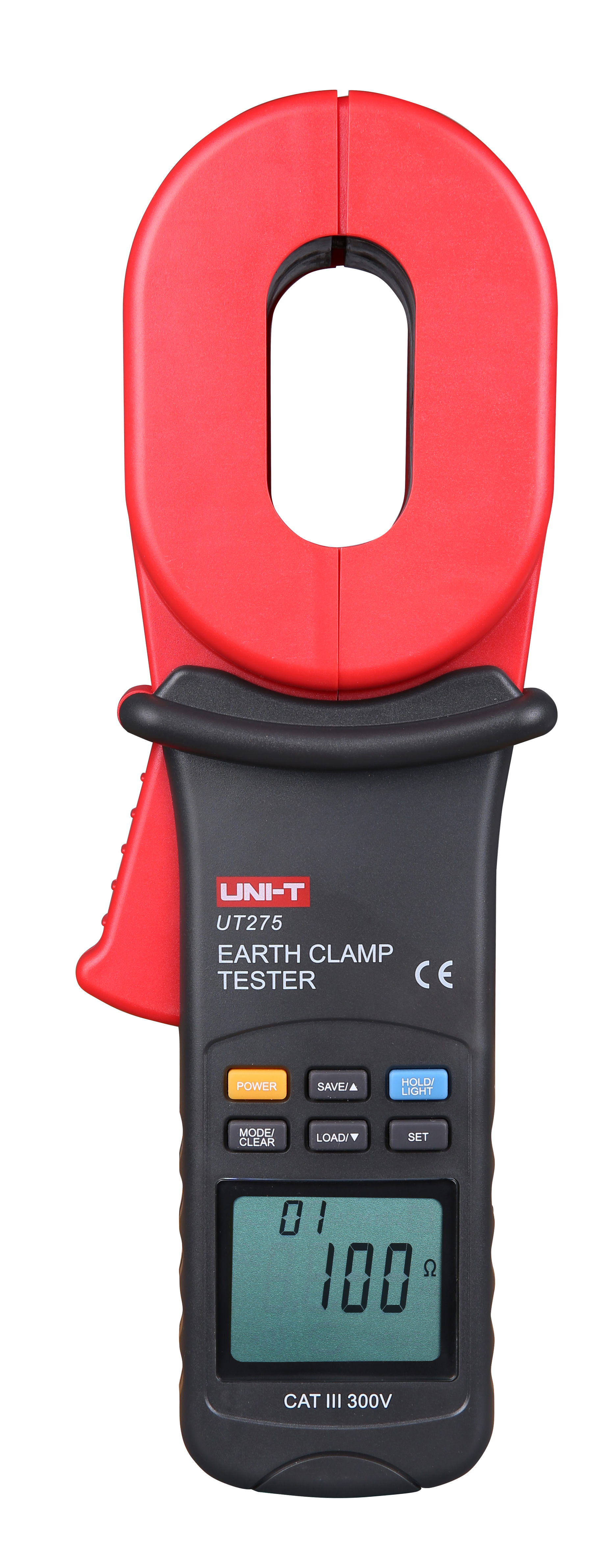

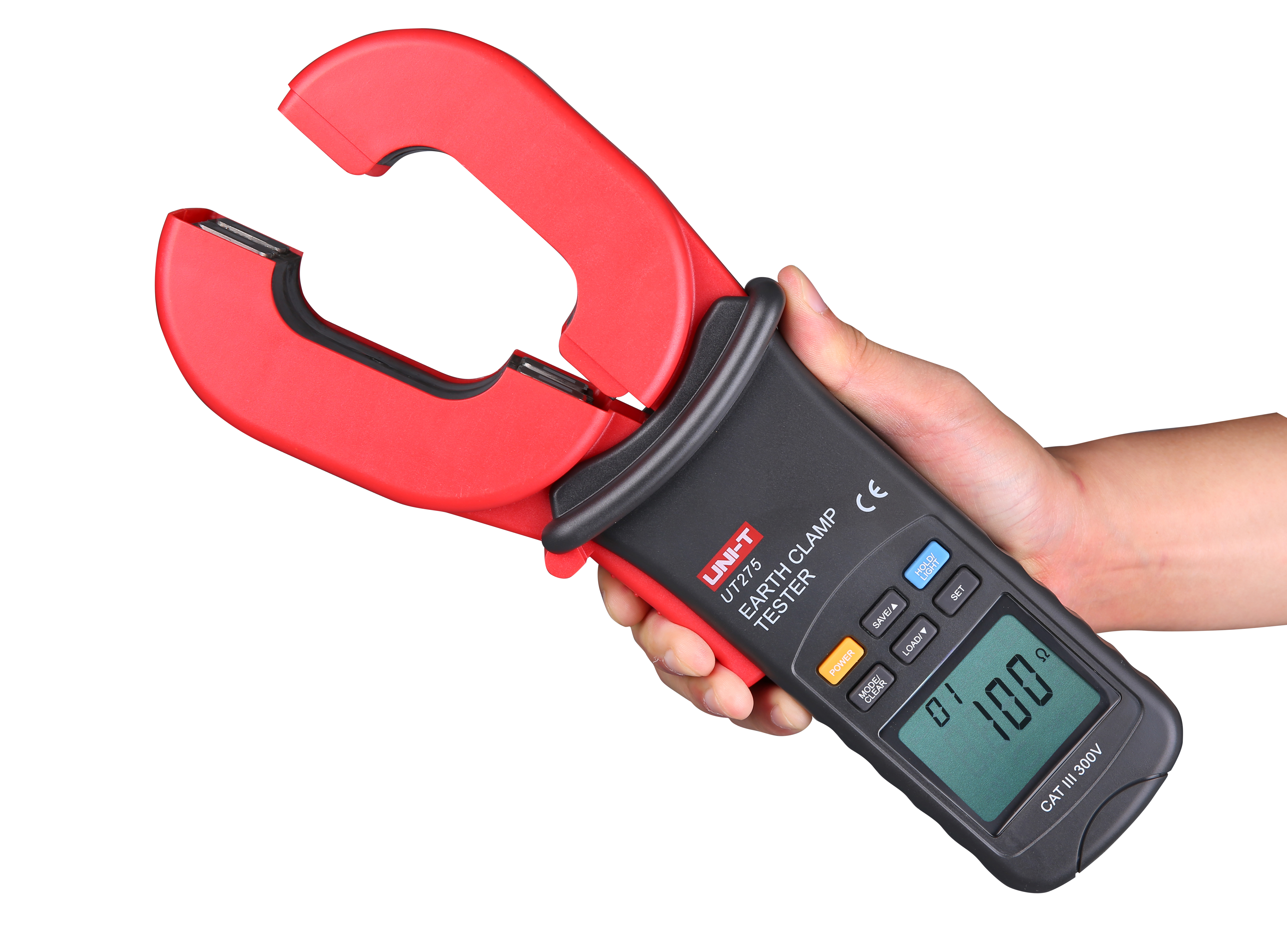

UT273 / UT275

Features

1. 10000 display count

2. 0.001Ω resolution

3. Auto range

4. Data hold

5. Resistance limit alarm

6. Auto calibration

7. Auto power off

8. LCD backlight

Specifications
Model		UT273	UT275
Earth Ground Resistance (Ω)	0.01~0.099Ω	±(1%+0.01)	±(1%+0.01)
	0.1~0.99Ω	±(1%+0.01)	±(1%+0.01)
	1.0~49.9Ω	±(1.5%+0.1)	±(1.5%+0.1)
	50.0~99.5Ω	±(2%+0.5)	±(2%+0.5)
	100~199Ω	±(3%+1)	±(3%+1)
	200~395Ω	±(10%+5)	±(10%+5)
	400~590Ω	±(20%+10)	±(20%+10)
	600~1000Ω	±(25%+20)	±(25%+20)
Leakage Current (A)	0.00~299mA		±(2.5%+2mA)
	0.30~2.99A		±(2.5%+100mA)
	3.00~30.0A		±(2.5%+300mA)
Features
Max Display		9999	9999
Auto Range		√	√
Jaw Capacity		28mm	28mm
Auto Power Off		√	√
Low Battery Indication	≤5.2V	√	√
Data Hold		√	√
Data Storage		30	30
Data Recall		√	√
LCD Backlight		√	√
Auto Calibration		√	√
Resistance Limit Alarm		√	√
General Characteristics
Power	1.5V Alkaline Batteries (LR6) ×4
LCD Size	47mm X 28.5mm
Product Color	Red and Grey
Product Net Weight	1320g
Product Size	293mm X 90mm X 66mm
Standard Accessories	Batteries, Test Ring, Tool Box
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	5pcs
Standard Carton Measurement	510×375×320mm (0.06CBM Per Standard Carton)
Standard Carton Gross Weight	15.2kg
