Surveying and mapping

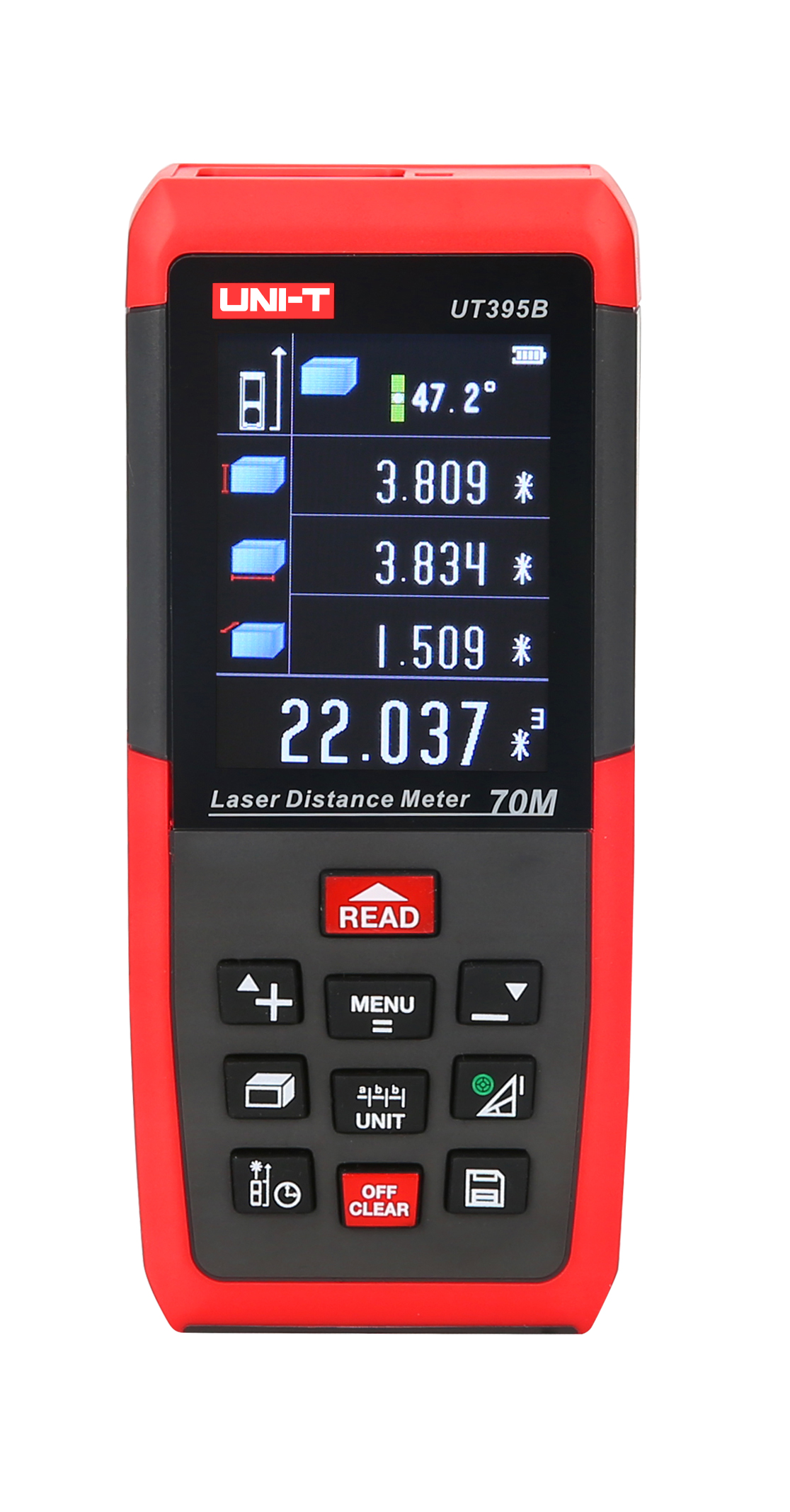

UT395 A/B/C

Features

1. Multi-directional electronic leveler

2. Color display interface

3. USB interface

4. Double injection molding

5. Max laser power: <1mW

6. Up to 100 sets of data storage

7. More than 15 measurement functions

Specifications
Model	UT395A	UT395B	UT395C
Accuracy	±(2.0mm+d*5/100000)
Measuring Distance (m)	0.05~50m	0.05~70m	0.05~100m
Minimum Unit	1mm
Unit	m/in/ft
Laser Class	635nm, <1mW, Class 2
Features
Continuous Measurement	√
Area/Volume Calculation	√
Pythagoras Theorem Calculation	√
Triangle Angle/Height/Area Measurement	√
Inclination	-90~90°
Distance Add/Subtract	√
Area Add/Subtract	√
Volume Add/Subtract	√
Staking-out Test	√
Delay Test	√
MAX/MIN	√
Automatic Calibration	√
Data Storage	100
USB Connector	√
Buzzer Indication	√
Battery Indicator	√
Electronic Leveler	√
Auto laser Off	20~120s
Auto Power Off	100~300s
General Characteristics

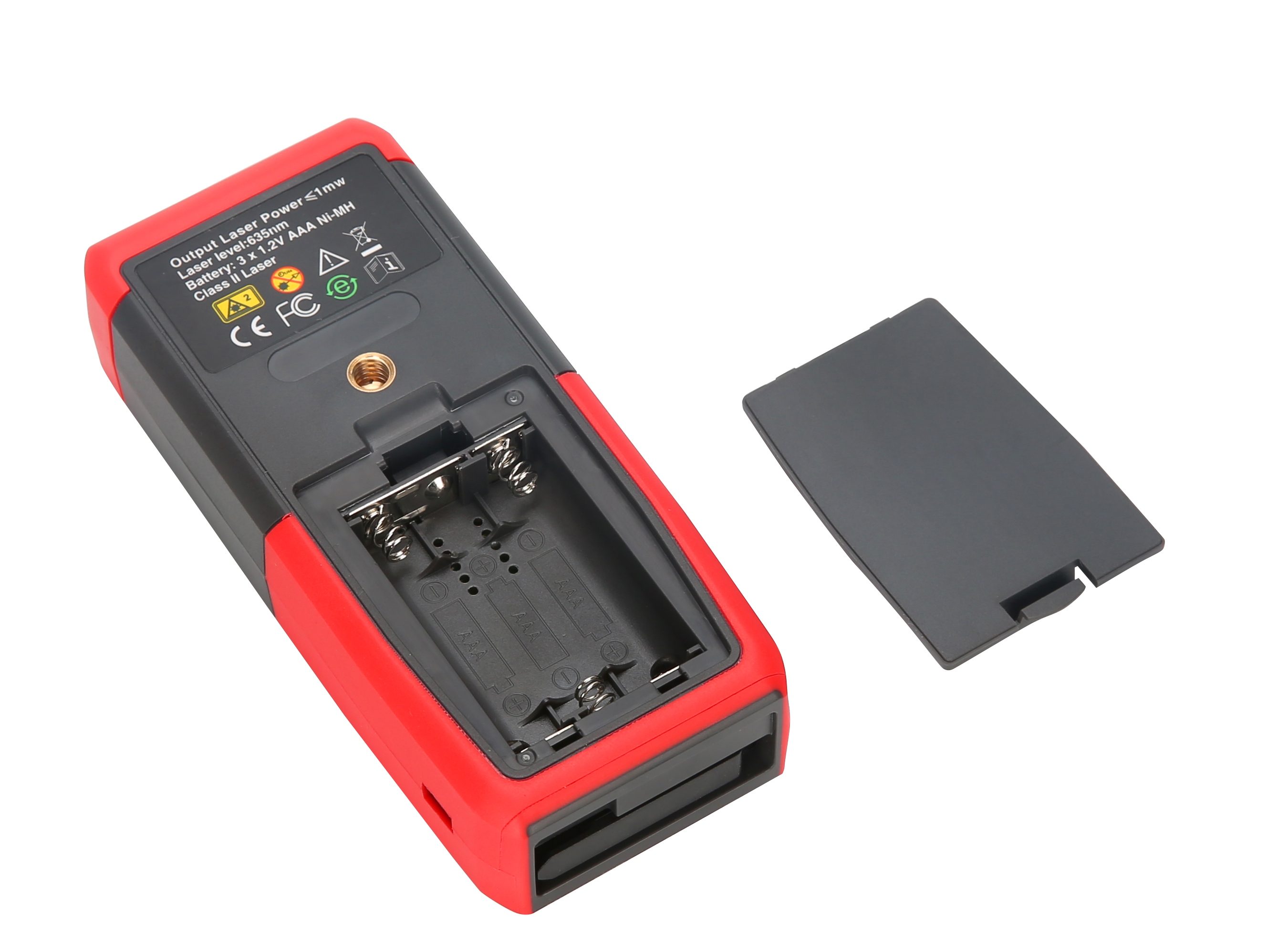

Power	1.2V 800mAh AAA NI-MH battery*3
Product Color	Red and grey
Product Net Weight	84g
Product Size	126mm×56mm×28mm

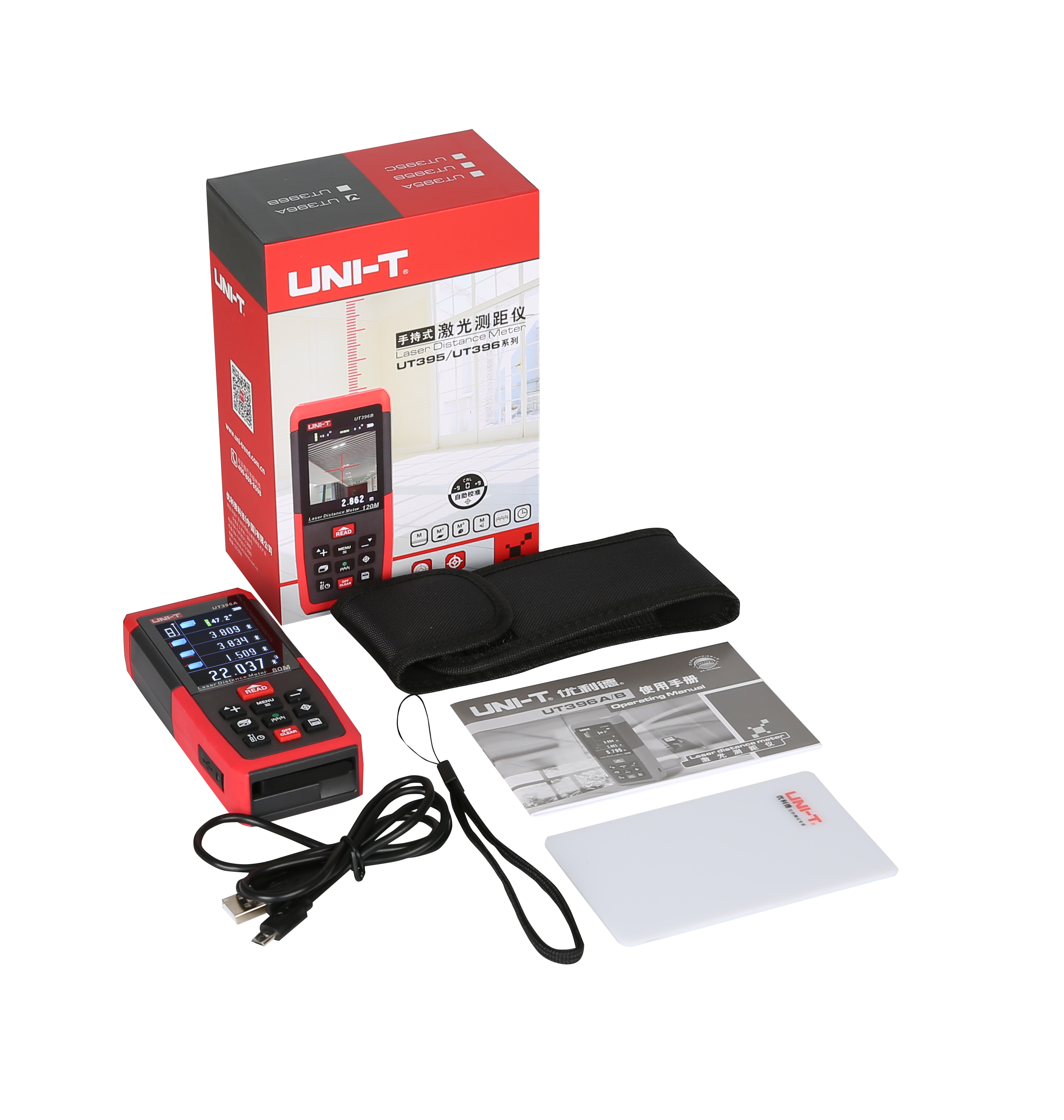

Standard Accessories	Hanging cord, USB interface cable, reflector
Standard Individual Packaging	Gift box, carrying bag, manual, rechargable battery
Standard Quantity Per Carton	60pcs
Standard Carton Measurement	520470345mm
Standard Carton Gross Weight	14.6kg
