Surveying and mapping

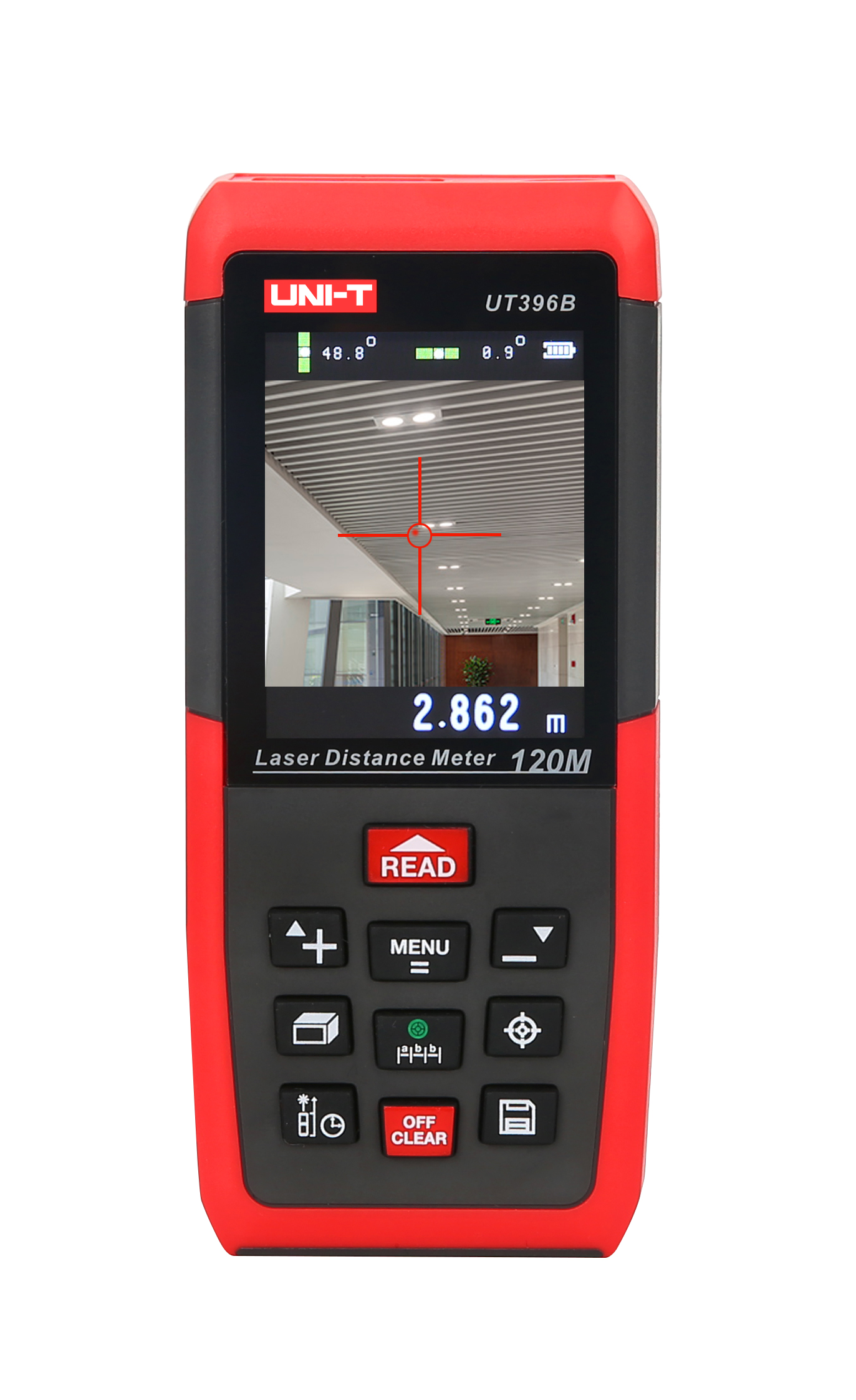

UT396 A/B

Features

1. Multi-directional electronic leveler

2. Camera assistance

3. Color display interface

4. USB interface

5. Double injection molding

6. Max laser power: <1mW

7. Up to 100 sets of data storage

8. More than 15 measurement functions

Specifications
Model	UT396A	UT396B
Accuracy	±(2.0mm+d*5/100000)
Range	0.05~80m	0.05~120m
Minimum Unit	1mm
Unit Display	m/in/ft
Laser	635nm, <1mW, Class II
Features
Camera	√
Continuous Measurement	√
Area/Volume Calculation	√
Pythagorean Theorem Calculation	√
Triangle Angle/Height/Area Measurement	√
Inclination	-90~90°
Distance Add/Subtract	√
Area Add/Subtract	√
Volume Add/Subtract	√
Staking-out Test	√
Delay Test	√
MAX/MIN	√
Data Storage	100
Auto Laser Off	20~120s
Auto Power Off	100~300s
Electronic Leveler	√
USB Connector	√
General Characteristics
Power	1.2V 800mAh AAA NI-MH battery×3
Product Color	Red and grey
Product Net Weight	84g
Product Size	126mm×56mm×28mm

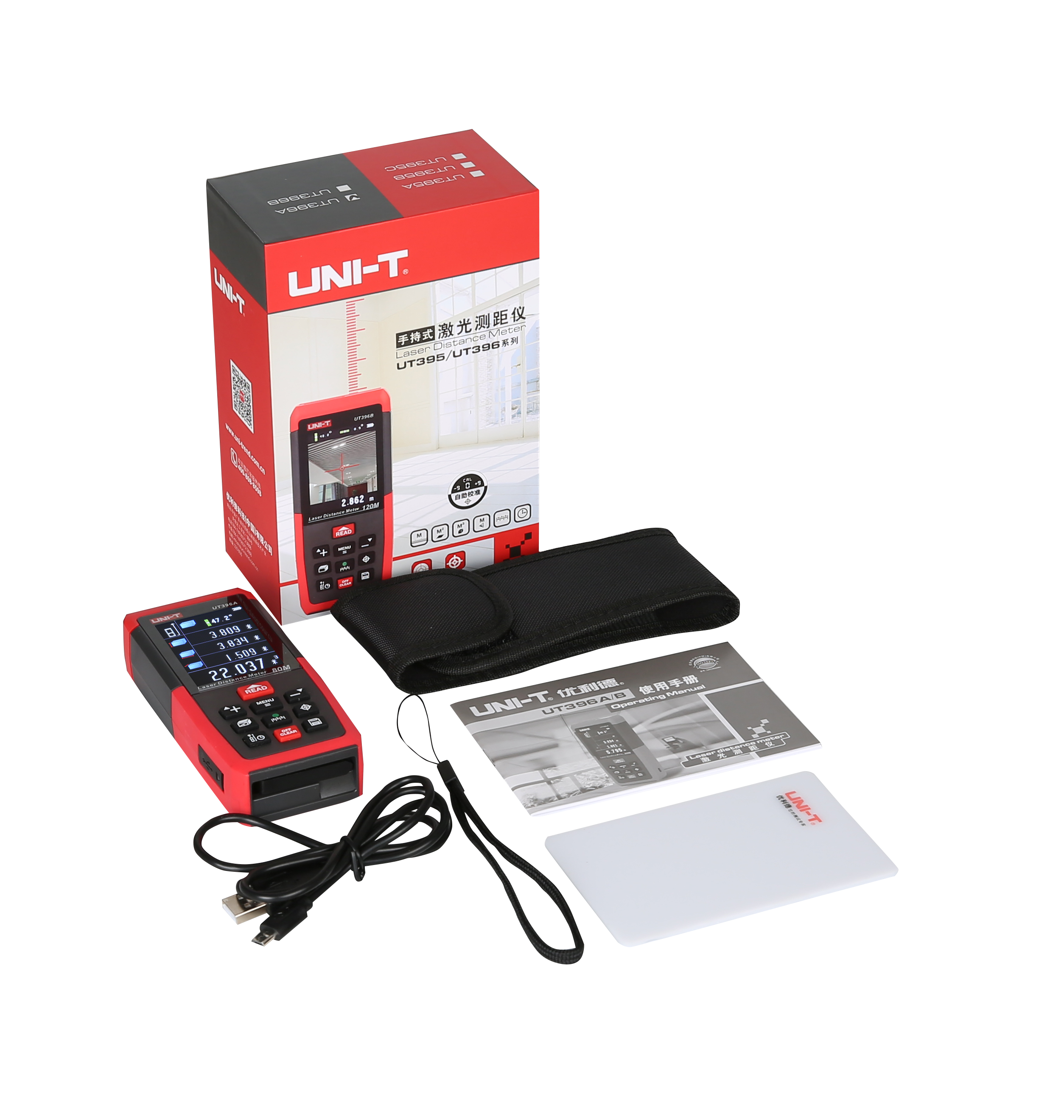

Standard Accessories	Hanging cord, USB interface cable, reflector
Standard Individual Packaging	Gift box, carrying bag, manual, rechargable battery
Standard Quantity Per Carton	60pcs
Standard Carton Measurement	520mm×470mm×345mm
Standard Carton Gross Weight	14.6kg
