UT512A

Features

1. Large 9999 display with 30-segment analog bar graph

2. PI/DAR measurements

3. Comparison, upper and lower limit functions

4. Continuous measurement mode

5. Auto power off

6. 18-group data storage

7. Backlight

8. Auto current discharge and high-voltage output alarm

9. Power adapter

10. Timer measurement mode, auto measure within 15 minutes

11. USB interface and PC software

12. Low battery and over range indications

Specifications	Range		Accuracy
Model			UT512A
Insulation Resistance (Ω)	Test Voltage	500V/1000V/1500V/2500V	0%～20%
	500V	1MΩ~5GΩ	±(3%+5)
	1000V	2MΩ~10GΩ	±(3%+5)
	1500V	5MΩ~20GΩ	±(3%+5)
	2500V	10MΩ~100GΩ	±(3%+5)
	Short Circuit Current		<1.8mA
DC Voltage (V)	600V		±(2%+5)
AC Voltage (V)	600V		±(2%+5)
Features
Auto Range			√
Auto Power Off			√
Low Battery Indication			√
Data Storage			18
Comparison			√
DAR			√
PI			√
USB Interface			√
LCD Backlight			√
Analogue Bar Graph			30
Overload Indication			√
High Voltage Indication			√
Timer	Around 15 Minutes		√
General Characteristics
Power	1.5V Batteries (LR14) x 8
LCD Size	123mm x 58mm
Product Color	Red and Grey
Product Weight	1.8kg
Product Size	202mm×155mm×94mm

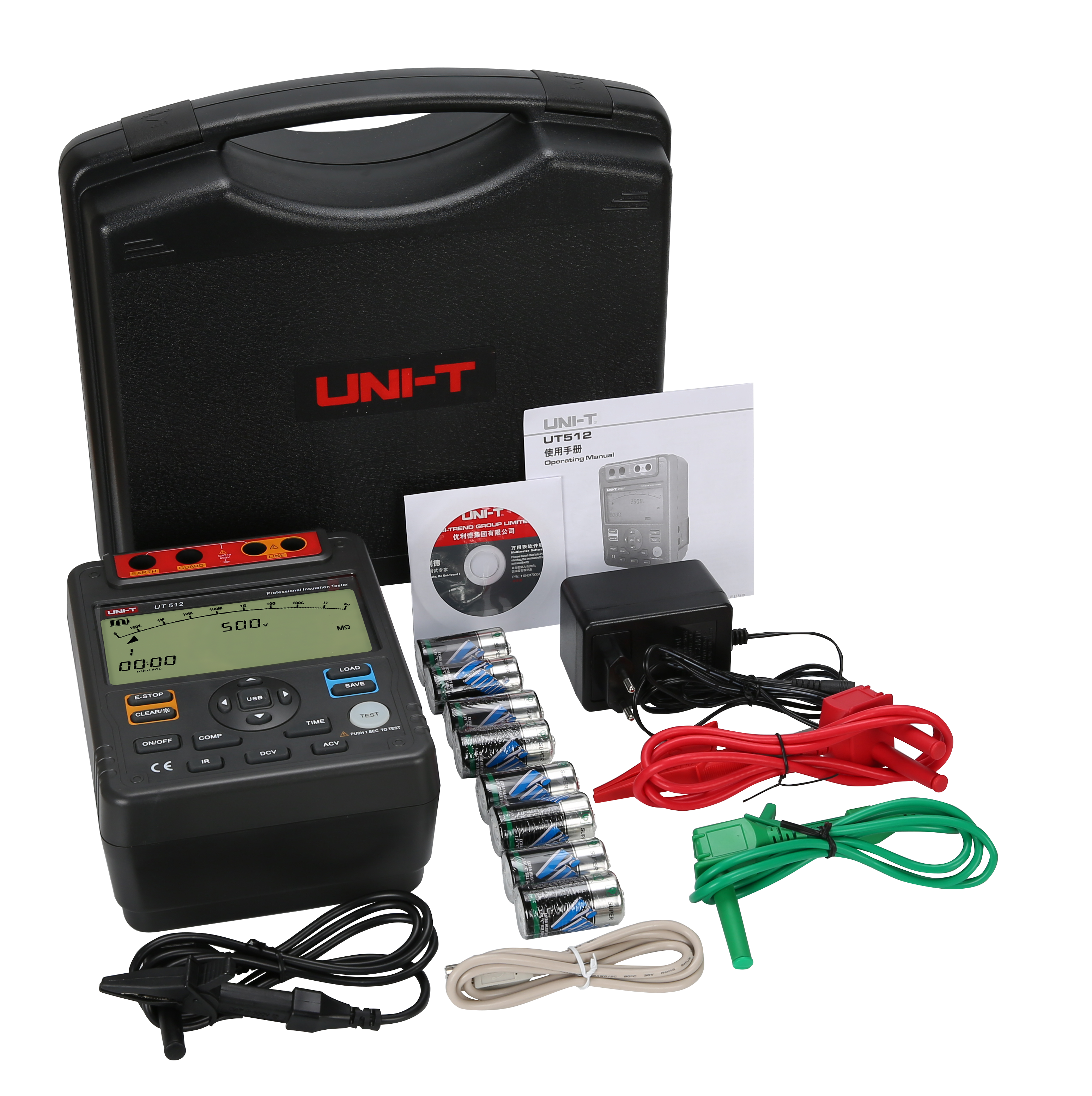

Standard Accessories	2pcs of one plug test lead to one alligator clip (Black and Green), 1pcs of two plugs test lead to one alligator clip (Red), Batteries, USB Cable, PC Software CD, Power Adapter
Standard Individual Packing	Gift Box, Tool Box, User Manual
Standard Quantity Per Carton	4pcs
Standard Carton Measurement	525mm x 335mm x 345mm
Standard Carton Gross Weight	18kg
Optional Accessories	Power Adapter
