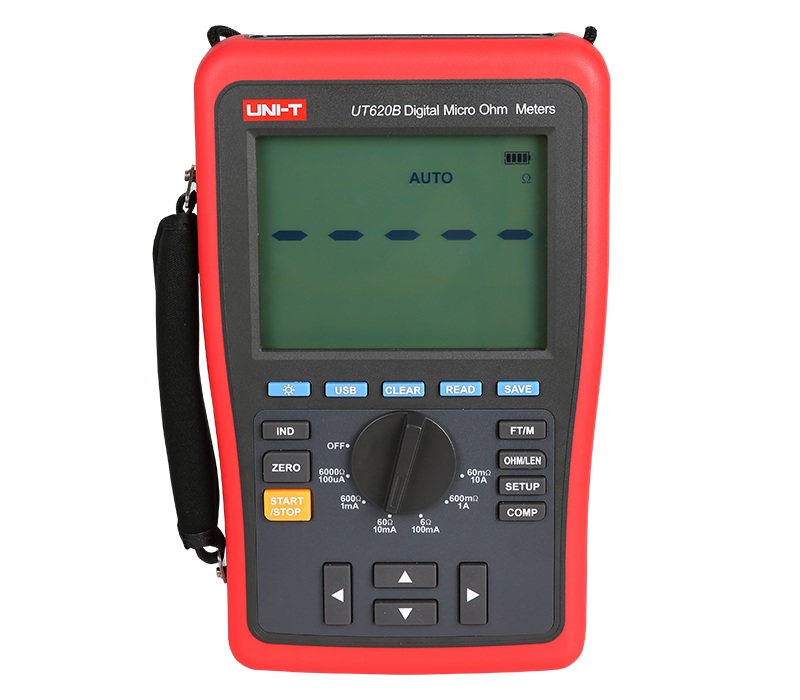

UT620 A/B

Features

1. 5A DC current output

2. Improved measurement method which improves accuracy by counter-balancing contact resistance of leads

3. Comparison measurement with upper and lower limits

4. Wire length measurement (m/ft)

5. Built-in Lithium battery

6. 1000-group data storage

7. Data transmission between USB and PC

8. Data hold

9. LCD backlight

10. Zeroing function, relative mode

11. IND resistance measurement mode

Specifications	Range	Best Accuracy
Model		UT620A	UT620B
Minimum Resolution		10uΩ	1uΩ
Resistance (Ω)	60.000mΩ/10A		±(0.25%+25dgts)
	120.00mΩ/5A	±(0.25%+25dgts)
	600.00mΩ/1A	±(0.25%+25dgts)	±(0.25%+20dgts)
	6.0000Ω/100mA	±(0.25%+25dgts)	±(0.25%+20dgts)
	60.000Ω/10mA	±(0.25%+25dgts)	±(0.25%+20dgts)
	600.00Ω/1mA	±(0.25%+25dgts)	±(0.25%+25dgts)
	6.0000kΩ/100uA	±(0.75%+30dgts)	±(0.25%+30dgts)
Features
LCD Counts		60000	60000
Four-wire Measurement		√	√
Wire Length Measurement		√	√
High/Low Limit Alarm		√	√
Data Storage		1000	1000
USB Data Transfer		√	√
Manual Range		√	√
Backlight		√	√
Data Hold		√	√
Relative Value		√	√
Low Battery Display		√	√
General Characteristics
Power	Lithium Battery 7.4V 4000mAh, Rechargeable
LCD Size	116mm × 87.5mm
Product Color	Red and Grey
Product Net Weight	1.5kg
Product Size	268mm × 168mm × 60mm

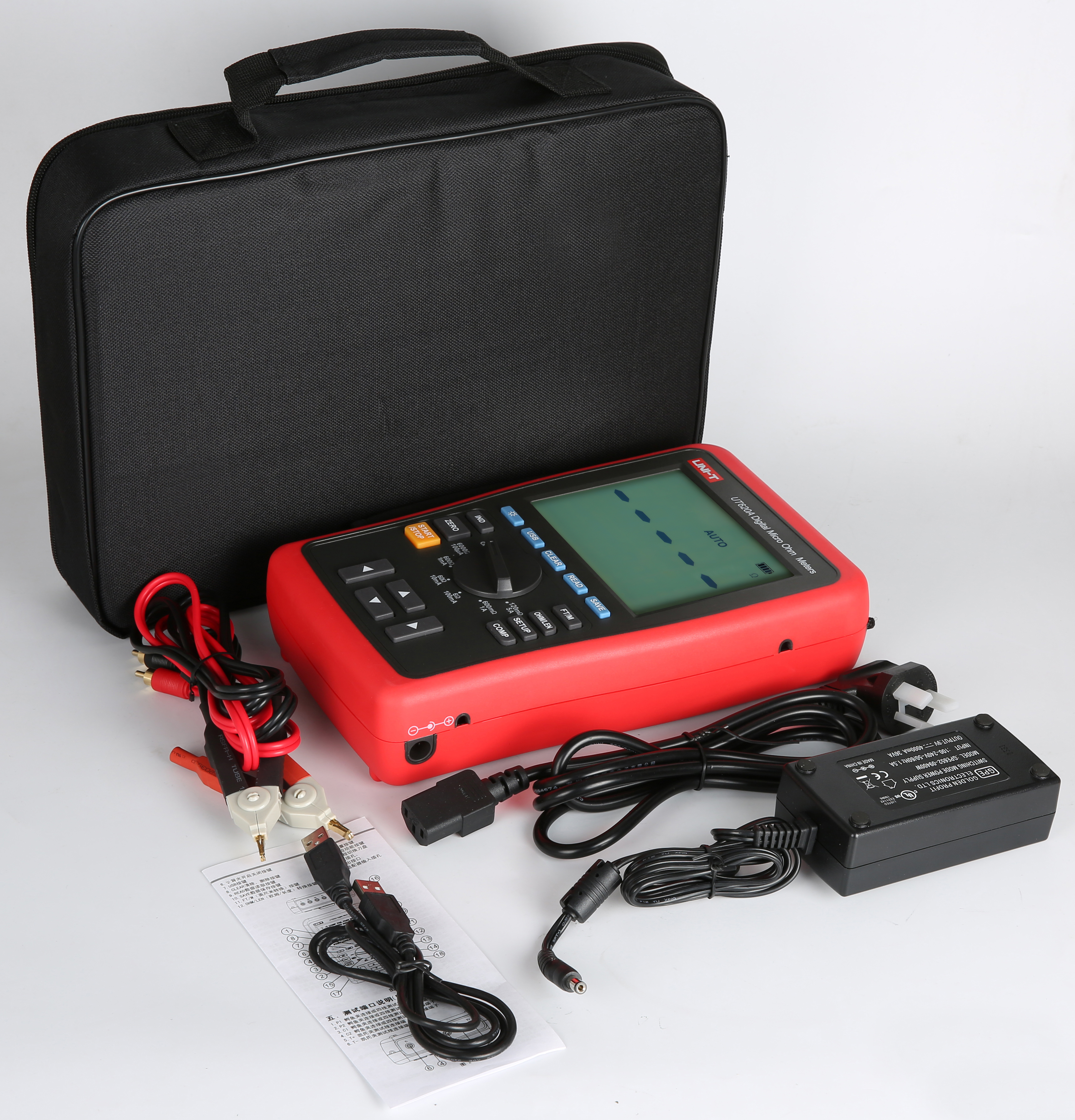

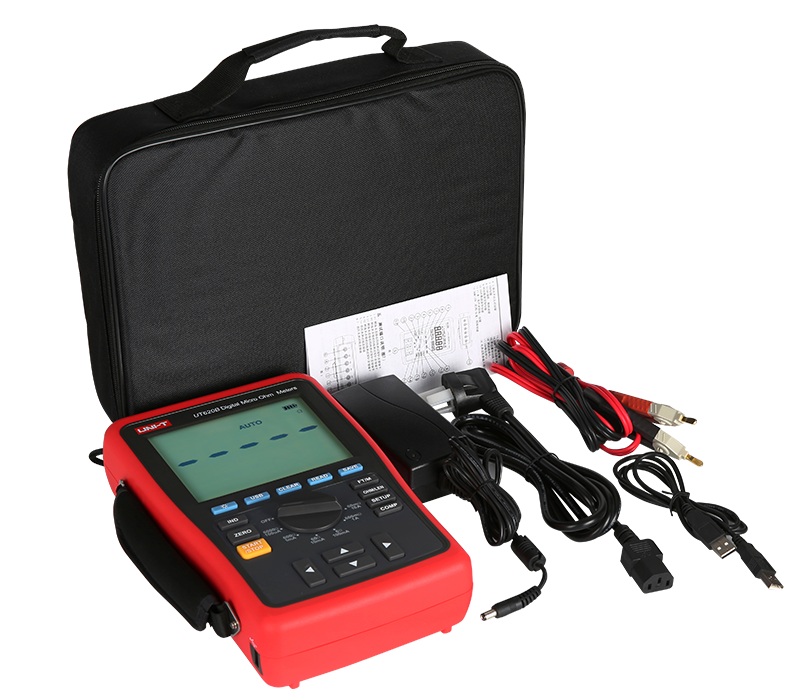

Standard Accessories	Kelvin Clips (Red&Black)×1, Power Adaptor×1pcs, USB Cable, Software CD

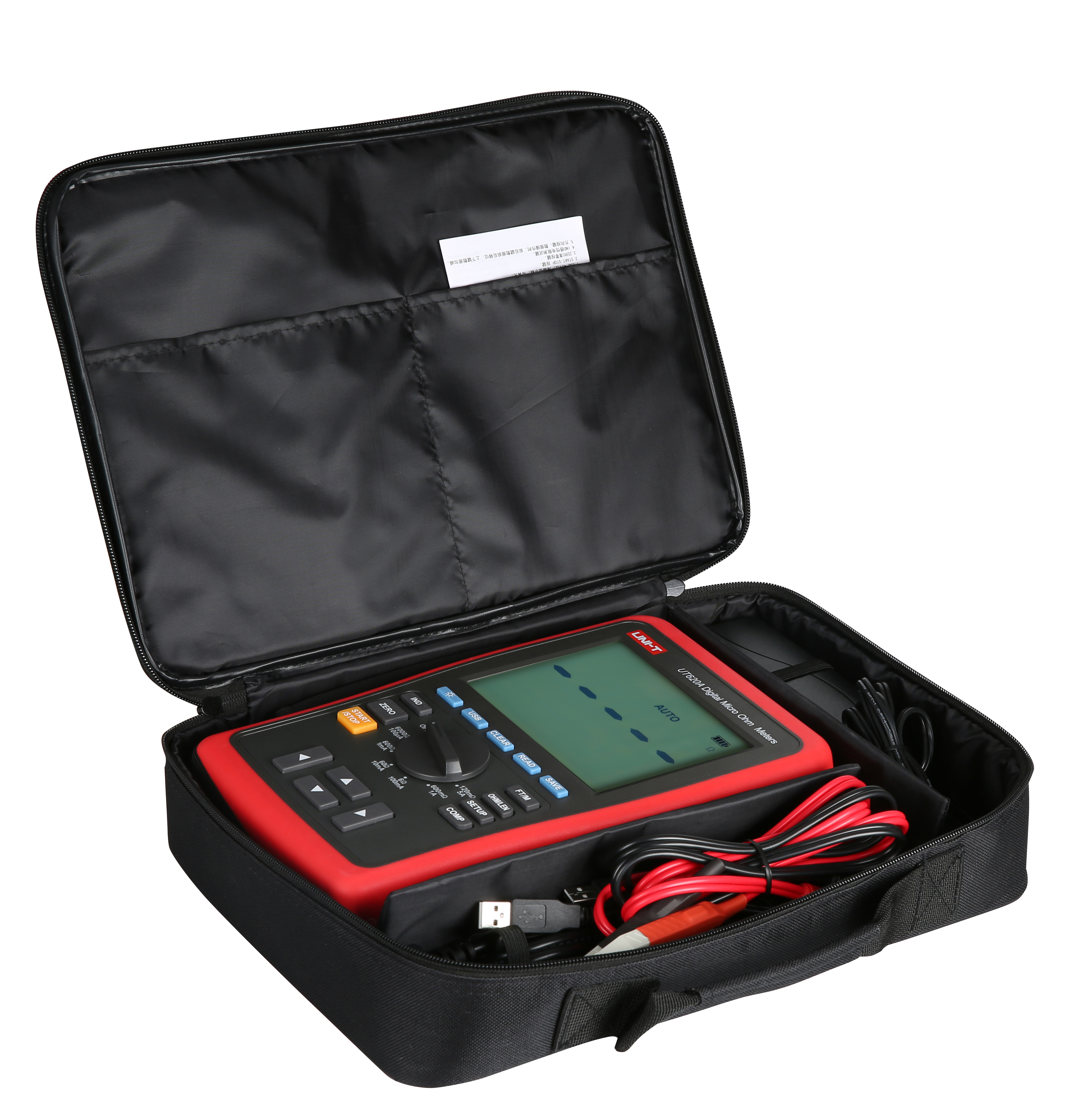

Standard Individual Packing	Gift Box, Carrying Bag, English Manual
Standard Quantity Per Carton	5pcs
Standard Carton Measurement	390mm × 370mm × 285mm
Standard Carton Gross Weight	11.5kg
Optional Accessories*
Four-wire Test Probes (Red&Black)×1
