Other instruments

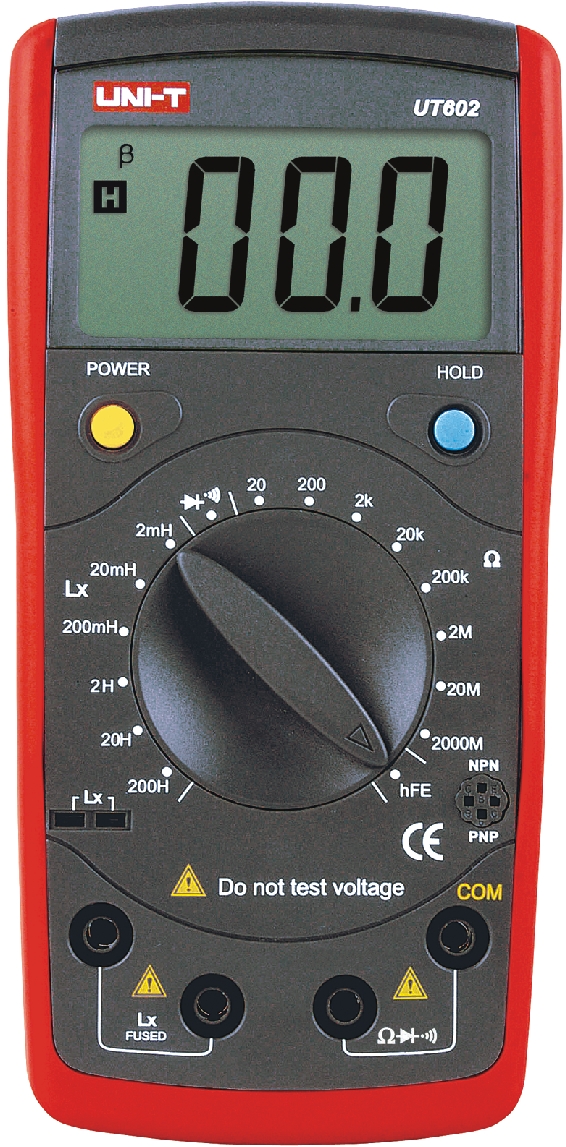

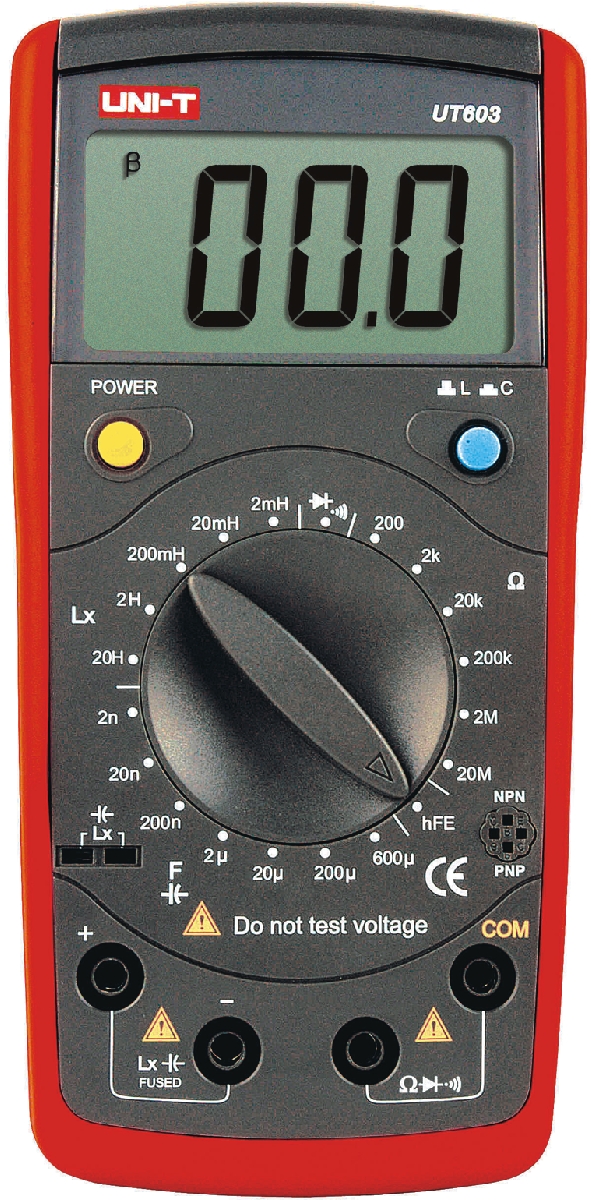

UT601/UT602/UT603

Features

1. Diode and buzzer continuity measurements

2. Inductance measurement

3. Low battery indication

4. 2～3 times per second refresh rate

5. Transistor testing adapter

Specifications	Range	Best Accuracy
Model		UT601	UT602	UT603
Resistance (Ω)	20Ω/200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ/2000MΩ	±(0.8%+1)
	20Ω/200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/2000MΩ		±(0.8%+1)
	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ			±(0.8%+1)
Capacitance (C)	200pF/2nF/20nF/200nF/2uF/20uF/200uF/2mF/20mF	±(0.5%+10)
Capacitance (C)	2nF/20nF/200nF/2uF/20uF/200uF/600uF			±(1%+5)
Inductance (H)	2mH/20mH/200mH/2H/20H/200H		±(2%+8)
Inductance (H)	2mH/20mH/200mH/2H/20H			±(2%+8)
Features
Max Display		1999	1999	1999
Manual Range		√	√	√
Diode		√	√	√
Transistor		√	√	√
Continuity Buzzer		√	√	√
Low Battery Indication		√	√	√
Data Hold			√
General Characteristics
Power	9V Battery (6F22)
LCD Size	61mm X 32 mm
Product Color	Red and Grey
Product Net Weight	UT601/UT602-310g,UT603-312g
Product Size	172mm X 83mm X38mm
Standard Accessories	Battery, Test Clip, Holster
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	40pcs
Standard Carton Measurement	598mm X 418mm X 340mm (0.085 CBM Per Standard Carton)
Standard Carton Gross Weight	21kg
