Features
1. LED status display
2. Auto check of open/short/crossovercircuit
3. Fast/slow checking modes conversion
4. Single key operation
5. Manual/auto power off (after10-minute inactivity)
6. Low battery indication
7. Power supplied by 9V battery
Ethernet cable:
shielded/ unshielded test
CE EN61326-1:
2013; EN61326-2-2: 2013
Item
Function
Model
Description

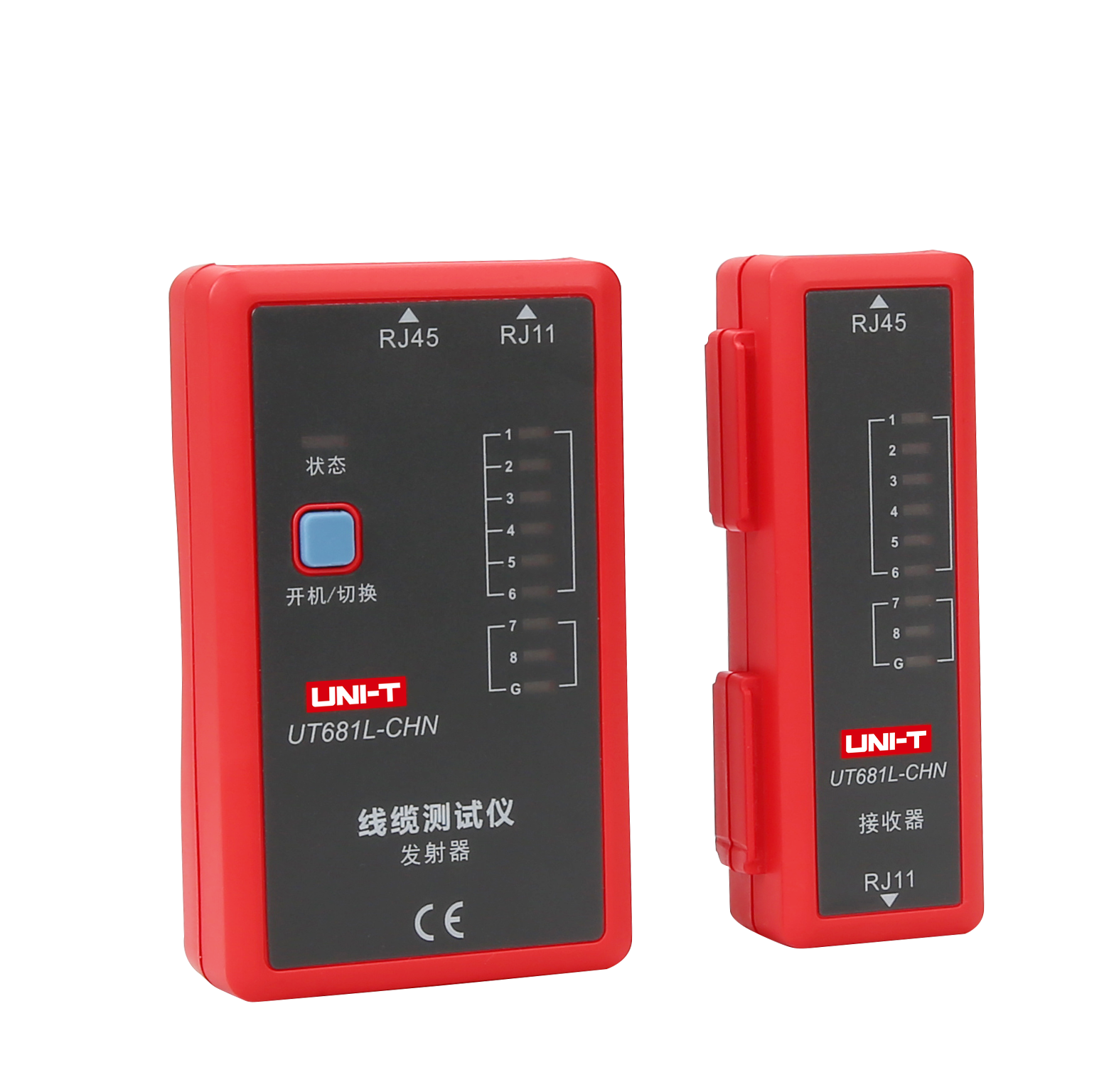

UT681L

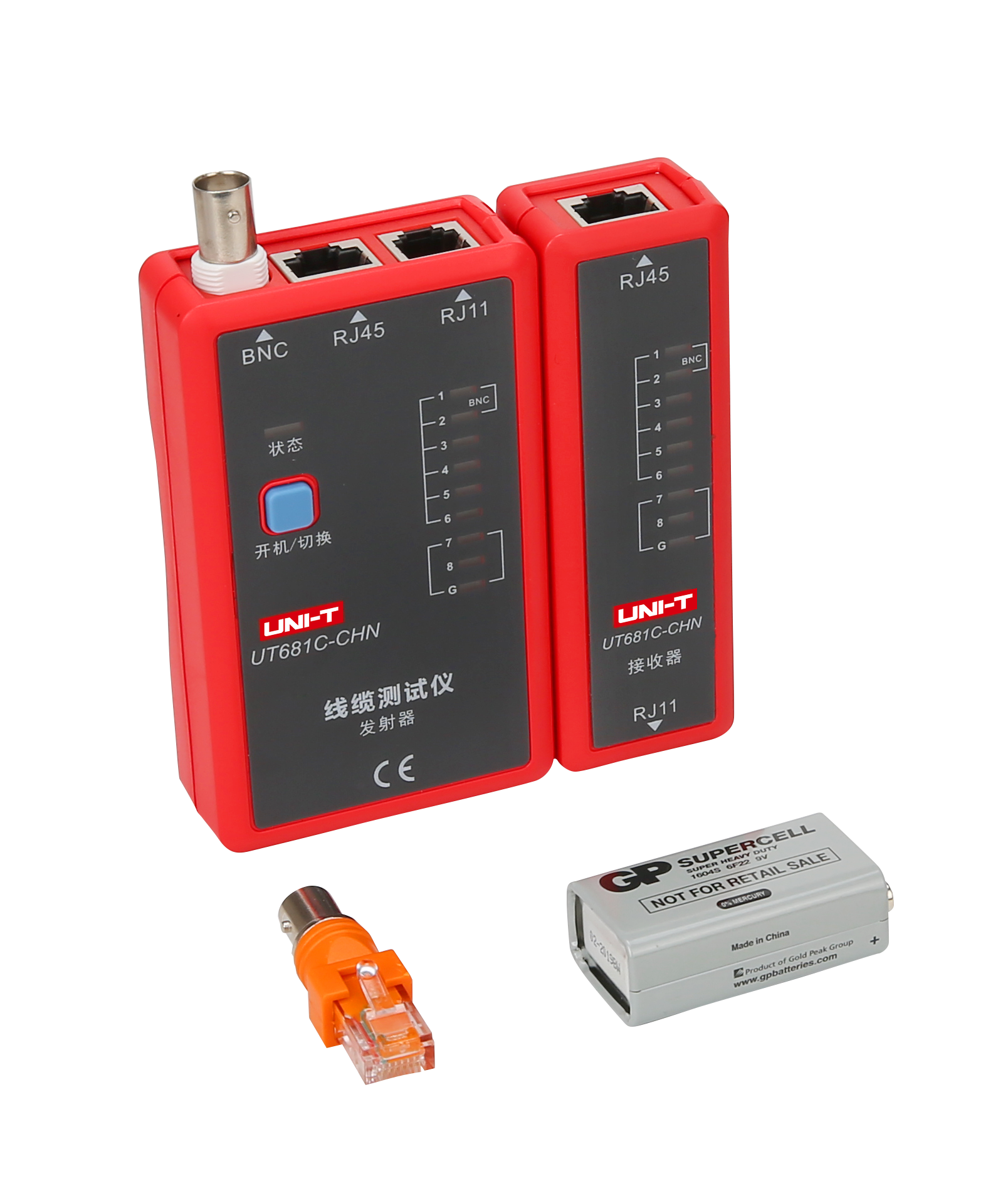

UT681C

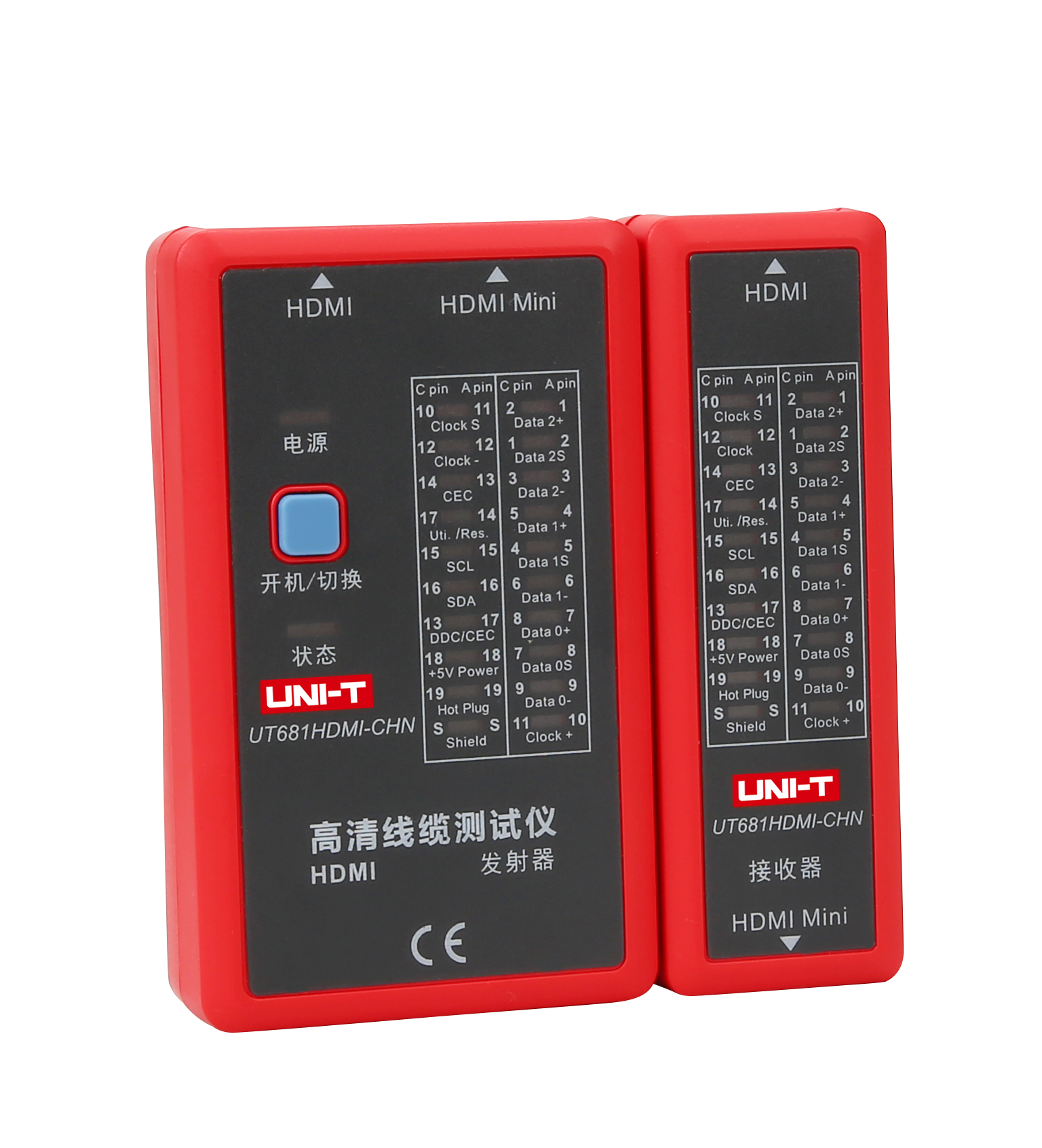

UT681HDMI
Test function
To test for: RJ45/RJ11
√
To test for: RJ45/RJ11/BNC
√
Need to use RJ45 to BNC adaptor
To test for: HDMI/MINI-HDMI
√
Fast test mode
√
√
LED1~LED8, LED_G
Low test mode
√
√
LED1~LED8, LED_G
Scan test mode
√
LED1~LED19, LED_S
Full display test mode
√
LED1~LED19, LED_S
To test for the case of short circuit, crossover, open circuit, etc.
√
√
√
√
√
√
Manual shutdown function
√
√
√
Auto shutdown function
√
√
√
No operation within 10 minutes, the device will shut down automatically
Single key operation
√
√
√
Power supply: 9V battery
√
√
√
Low voltage detection
√
√
√
About less than 7.2V
Application environment
Working temperature: 0~40℃
√
√
√
Storage temperature: -10~50℃
√
√
√
Working humidity: 20~80% RH
√
√
√
Storage humidity: 10~90% RH
√
√
√
Altitude: ≤2000 meters
√
√
√
Safety standard
√
√
√
