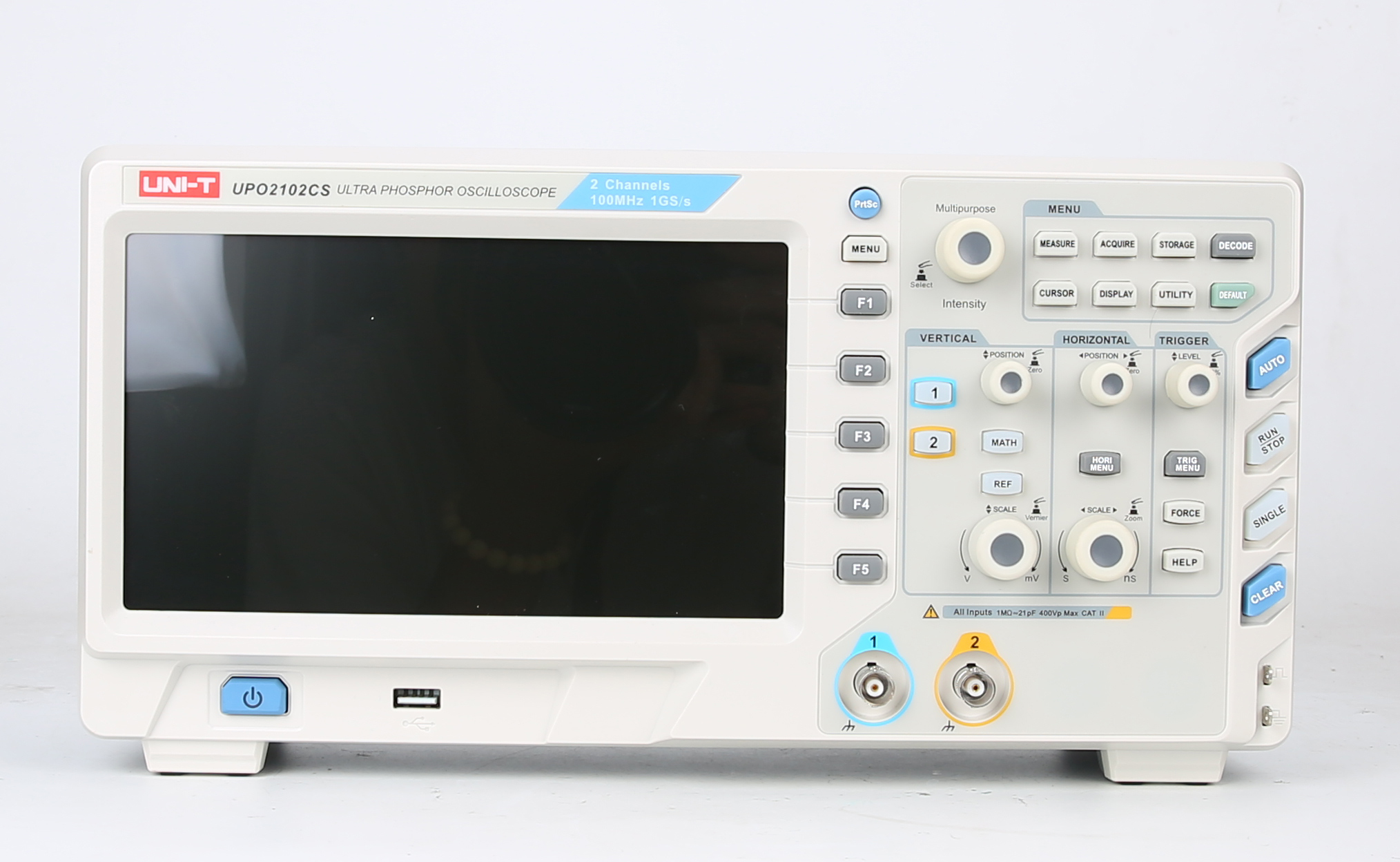

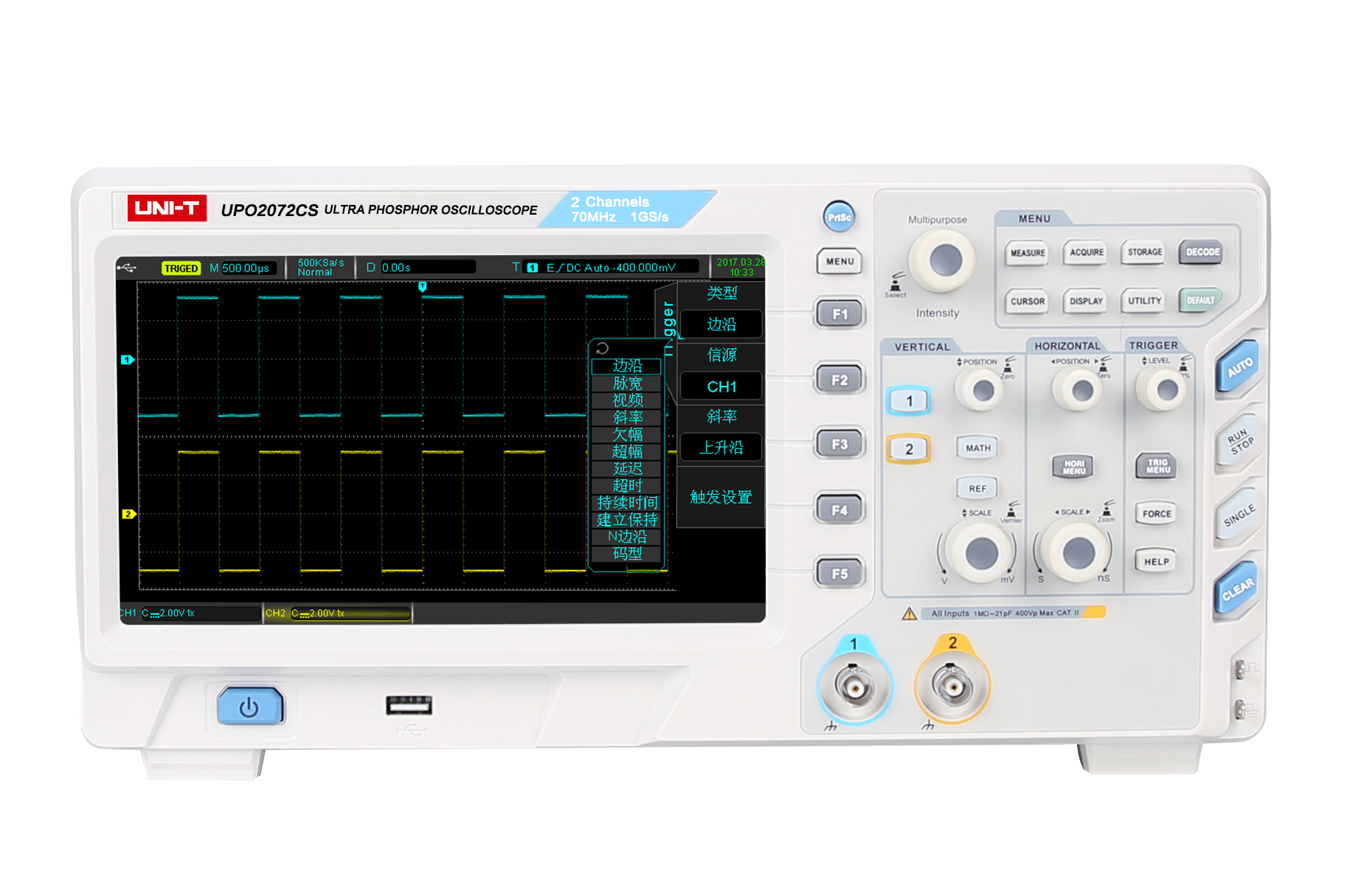

  • Product description: Ultra Phosphor Oscilloscope
  • INQUIRY

Features and benefits:
1. Sampling rate up to 1GS/s
2. Channels 2
3. Bandwidth 100MHz
4. Memory depth 28Mpts (standard)
5. Waveform capture rate up to 50,000wfms/s
6. With 256 level intensity grading display
7. Up to 65,000 frames for waveform record/replay
8. Support serial bus trigger and decoding (optional feature)
9. 8 inches, TFT LCD, WVGA (800*480)
10. Interface: USB Host, USB Device, LAN, VGA, AUX OUT, 10MHz input/output


Specifications

UPO2072CS

UPO2074CS

UPO2102CS

UPO2104CS

Bandwidth

70MHz

100MHz

Channels

2

4

2

4

Sampling rate

1GS/s

Memory depth

28Mpts (each channel)

Waveform capture rate

50,000wfms/s

Time base range (s/div)

5ns/div ~ 50s/div

Input impedance

(1MΩ±2%) // (20pF±3pF)

Vertical sensitivity

1mV/div ~ 20V/div (1MΩ)

Waveform record

Max 65,000 frames

Trigger modes

Edge, pulse, slope, video

Waveform operations

A+B, A-B, A×B, A/B, FFT, logical operations, editable advanced operations



Auto measurements

Max, Min, Top, Bottom, Middle, Peak-Peak, Amplitude, Mean, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area, Overshoot, Preshoot, Frequency, Cycle, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Rise Delay, Fall Delay, Phase, FRR, FRF, FFR, FFF, LRF, LRR, LFR, LFF, 34 measurement parameters in total

Measurement counts

Display 5 measurements at the same time

Measurement statistic

Mean, max, min, standard deviation and measurement counts

Frequency counter

6-bit hardware counter

Standard interfaces

USB Host, USB Device, LAN, AUX OUT

General characteristics

Power

100V ~ 240V ACrms, 50Hz/60Hz

Display

8-inch TFT LCD, WVGA (800×480)

Product color

White and grey

Product net weight

3.5kg

Product size (W×H×D)

336mm×164mm×108mm
