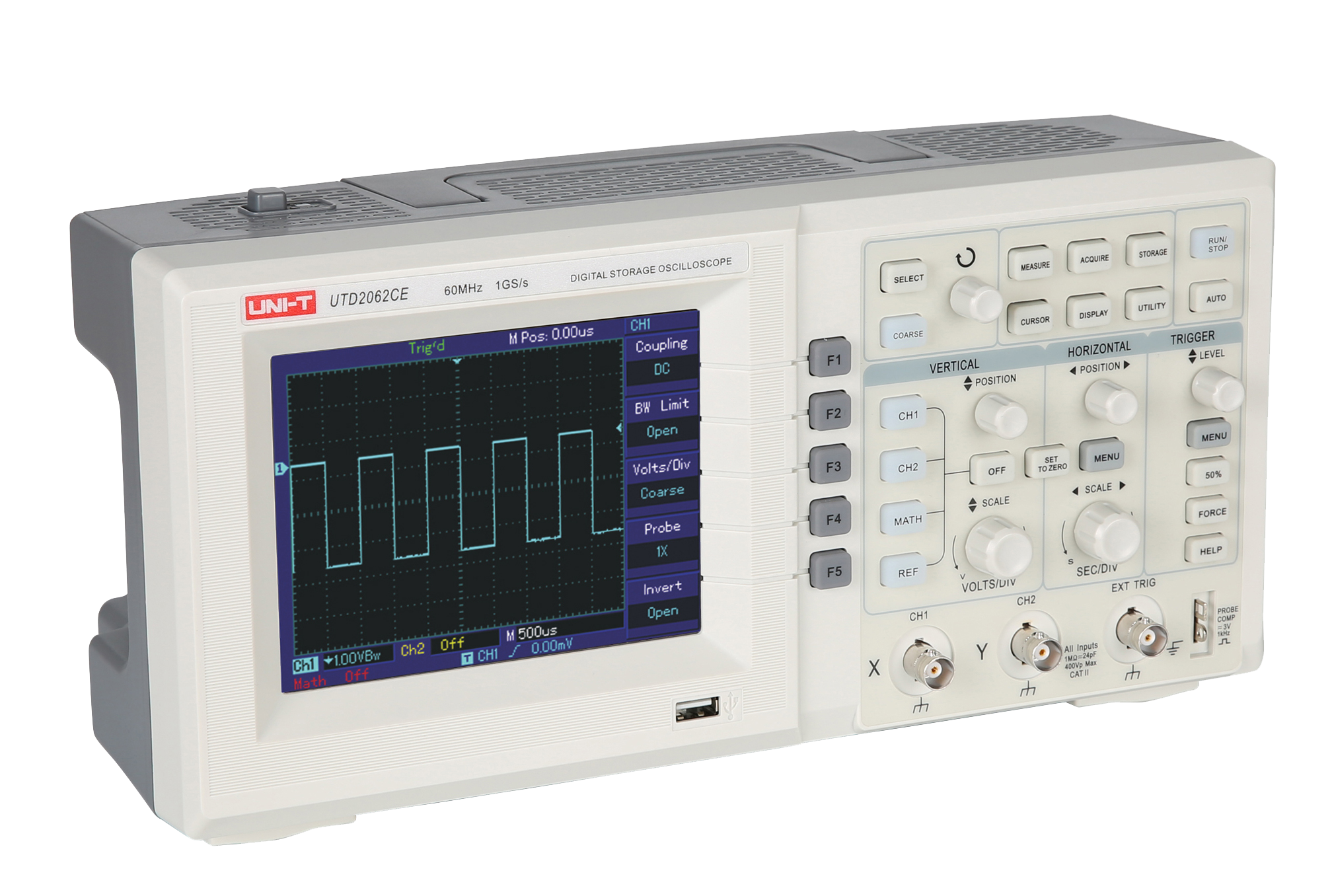

UTD2062CE

  • Product description: Digital Storage Oscilloscope
  • INQUIRY

Features

1. Supports PNP USB storage device, can connect with computer and remotely controlled through USB

2. Waveform, setup and bitmap storage as well as waveform and setup recall

3. Automatically measures parameters of 28 kinds of waveforms

4. Unique waveform record and replay function

5. Edge, pulse, video, alternate trigger functions

6. Unique quality inspection function

7. Multilingual menu

Specifications UTD2062CE
Channels 2
Bandwidth 60MHz
Sampling Rate 1GS/s
Rise Time ≤5.8ns
Memory Depth 25kpts
Waveform Acquisition Rate ≥2000wfms/s
Waveform Acquisition Rate (V/div) 2mV/div~5V/div
Timebase Range (s/div) 5ns/div~50s/div
Storage Setup, Wave, Bitmap
Trigger Modes Edge, Pulse, Video, Alternate
Interface USB Device, USB Host, Pass/Fail
General Characteristics
Power 100-240VAC, 45-440Hz
Display 5.7-inch TFT LCD, QGVA (320×240)
Product Color White and grey
Product Net Weight 2.5kg
Product Size (W×H×D) 320mm×145mm ×160mm
Standard Accessories Probe×2 (1:1,10:1 switchable), power cord, USB cable, PC software CD
Standard Individual Packing Gift box, English manual
Standard Quantity Per Carton 2pcs
Standard Carton Measurement (L×W×H) 450mm × 420mm × 280mm
Standard Carton Gross Weight 8.5kg
