Digital multimeter

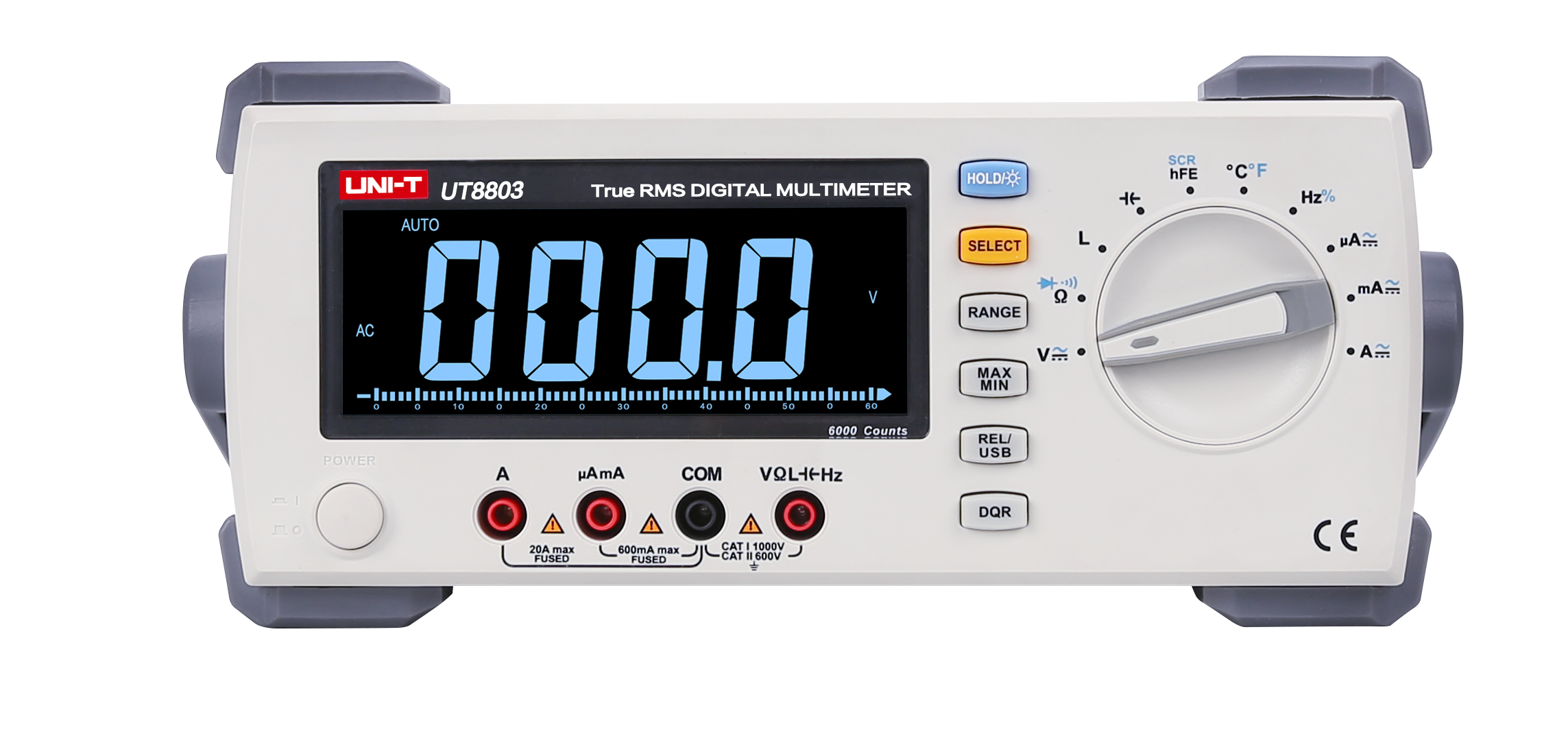

UT8802 / UT8803

Product description: Benchtop Digital Multimeters
INQUIRY

Main features

1. Auto range

2. True RMS

3. Diode/transistor

4. SCR thyristor measurement

5. Inductance measurement

6. USB interface

7. EBTN LCD backlight

8. Data hold

9. MAX/MIN

10. Continuity buzzer

Specifications	Range	Best Accuracy
Model		UT8802	UT8803
DC voltage (V)	200mV/2V/20V/200V/1000V	±(0.1%+3)
DC voltage (V)	600mV/6V/60V/600V/1000V		±(0.3%+2)
AC voltage (V)	2V/20V/200V/750V	±(0.5%+20)
AC voltage (V)	600mV/6V/60V/600V/1000V		±(0.6%+5)
DC current (A)	200μA/2mA/20mA/200mA/20A	±(0.5%+20)
DC current (A)	600μA/6000μA/60mA/600mA/20A		±(0.8%+3)
AC current (A)	2mA/20mA/200mA/20A	±(0.8%+40)
AC current (A)	600μA/6000μA/60mA/600mA/20A		±(1%+5)
Resistance (Ω)	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ	±(0.5%+10)
	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/200MΩ	±(0.5%+10)
	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ		±(1%+5)
Capacitance (F)	20nF/200nF/2μF/20μF/200μF/2mF/20mF/100mF	±(2.5%+10)
Capacitance (F)	6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF		±(1.5%+5)
Inductor (H)	600μH/6mH/60mH/600mH/6H/60H/100H		±(1.5%+5)
Frequency (Hz)	10Hz ~ 10MHz	±(1%+4)
Frequency (Hz)	600Hz/6kHz/60kHz/600kHz/6MHz/20MHz		±(0.1%+10)
Duty (%)	1% ~ 99%	0.10%
Temperature (°C)	-40 °C~1000°C		±(1%+1°C)
Temperature (°F)	-40°F~1832°F		±(1%+2°F)
Features
Display count		20000	6000
Manual range		√
Auto range			√
Bandwidth (Hz)			100kHz
Diode		√	√
SCR		√	√
Transistor		√	√
Continuity buzzer		√	√
MAX/MIN			√
USB interface		√	√
Data Hold		√	√
LCD backlight		√	√
Input Impedance for DCV		Around 10MΩ	600mV range: around 3GΩ; Other ranges: around 10MΩ
Voltage &Current: AC+DC Measurement			√
General Characteristics
Power	100V/120V/220V/240V ±10%, 47Hz~63Hz	100V/120V/220V/240V ±10%, 47Hz~63Hz
LCD	EBTN
Product color	White and grey
Product net weight	2.4kg
Product size (W×H×D)	380mm × 320mm × 110mm
Standard accessories	Test lead, power cord, PC software CD, USB interface cable
