Main features
1. Adjustment rate up to 0.01%
2. Output terminals complied with EU regulations (selectable)
3. Low ripple and sound
4. Single channel; output voltage: 0~32V
5. Output current: 0~3A
6. Overload and reverse polarity connection protection
7. Constant voltage and current
8. Display voltage and current at the same time
| Specifications | UTP1303 | UTP1305 |
| Output voltage | 0~32V | |
| Output current | 0~3A | 0~5A |
| Load efffect | CV≤1× 10-4+3mV, CC≤2×10-4+3mA | |
| Ripple & Noise | ≤1mVrms | |
| Output regulation resolution | CV: 100mV (typical), CC: 10mA (typical) | |
| Reliability | MTBF(e): ≥2000hrs | |
| Display mode | LED voltage and current dual display | |
| Feature | Auto conversion of constant voltage and current with current limit protection | |
| General Characteristics | ||
| Power | Input voltage: 115V AC/230V AC; frequency: 47Hz~63Hz | |
| Product color | White and grey | |

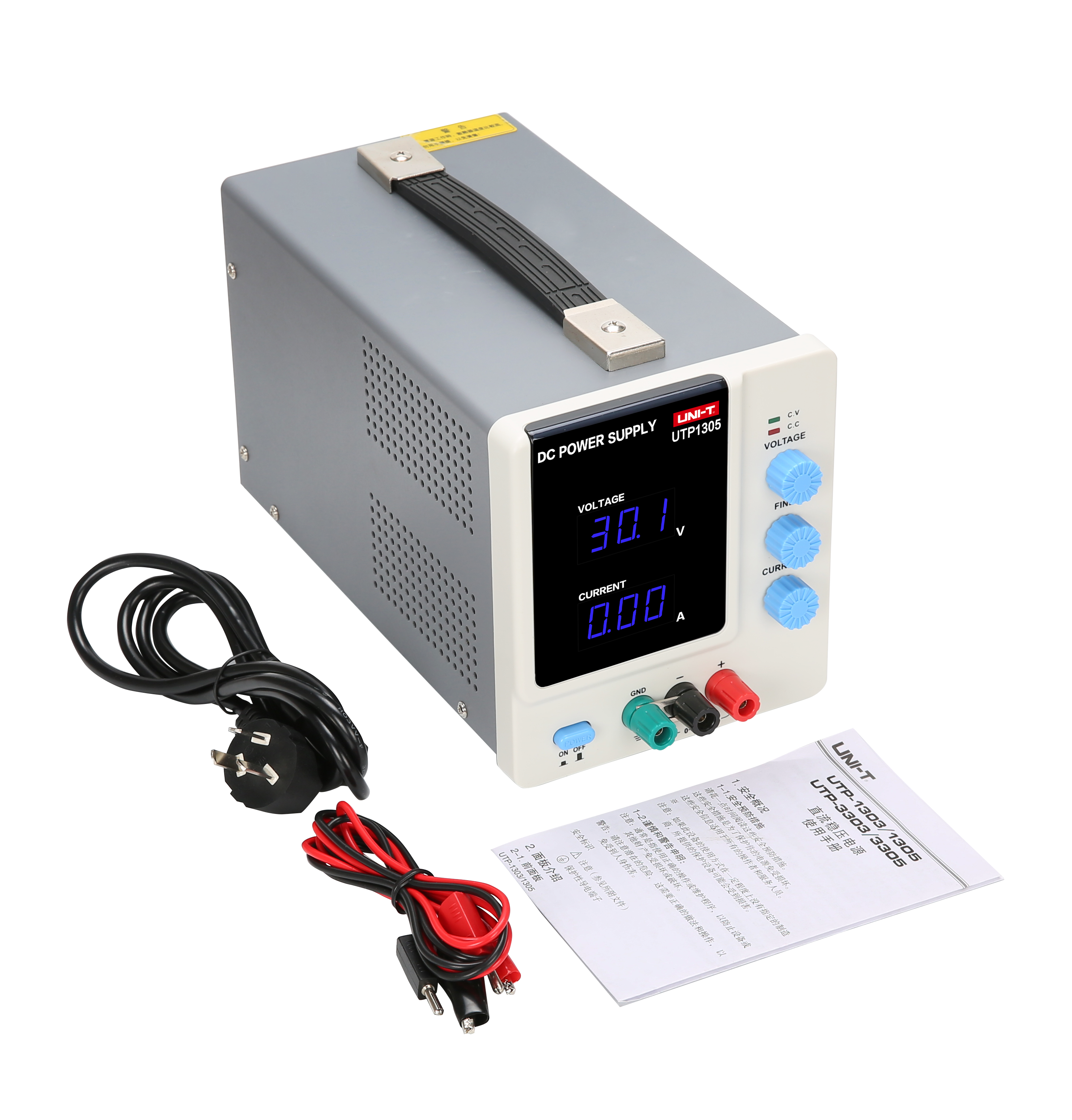

| Standard accessories | Output leads, power cord | |
| Product net weight | 5kg | |
| Product size (W×H×D) | 140mm×160mm×260mm | |
